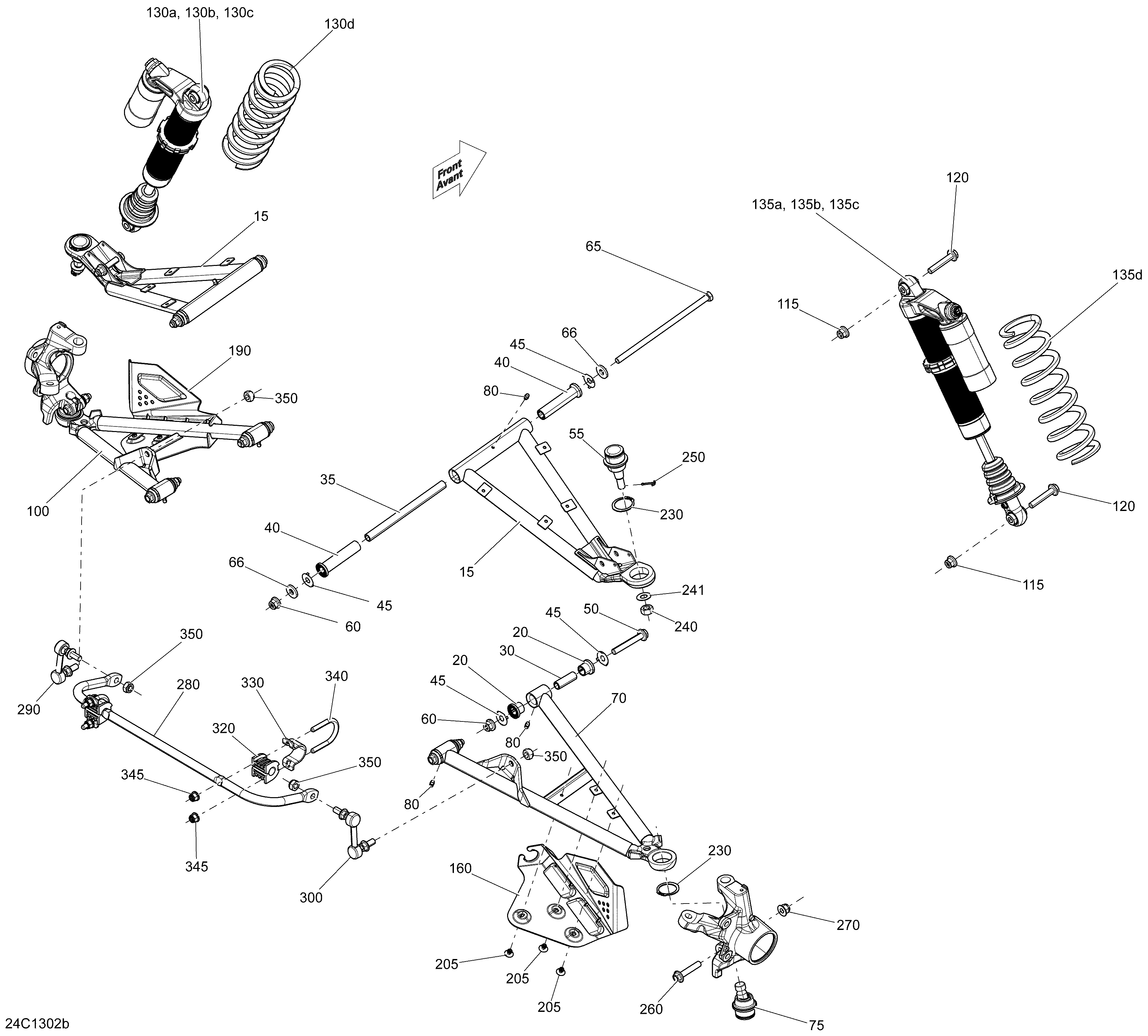

07- Front Suspension X для BRP Commander STD, DPS, XT, X 1000 EFI - 2013
-
№АртикулНазвание
-
15706200796 Suspension Upper ArmSuspension Upper Arm
-
20703500875 Bushing Kit. Includes 30Bushing Kit. Includes 30
-
30703500875 Bushing Kit. Includes 20Bushing Kit. Includes 20
-
35706201061 Inner BushingInner Bushing
-
40706201062 CushionCushion
-
45706201063 Wear PlateWear Plate
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55706202044 Ball JointBall Joint
-
60233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
65250000510 Hex. Cap Screw M10 X 225Hex. Cap Screw M10 X 225
-
66503190439 WasherWasher
-
70706200744 RH Lower Suspension ArmRH Lower Suspension Arm
-
75706202045 Ball JointBall Joint
-
80408200700 Grease FittingGrease Fitting
-
100706200742 LH Lower Suspension ArmLH Lower Suspension Arm
-
115233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
120207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
130a706201658 Front Shock Ass'y. Includes 130a to 130cFront Shock Ass'y. Includes 130a to 130c
-
130b715900209 O-Ring BushingO-Ring Bushing
-
130c715900210 Interior BushingInterior Bushing
-
130d706201617 Front Sping, Silver-Red. X Carbon/Black ModelFront Sping, Silver-Red. X Carbon/Black Model
-
130d706201124 Yellow Front Spring. X Black/Yellow ModelYellow Front Spring. X Black/Yellow Model
-
135a706201658 Front Shock Ass'y. Includes 135a to 135cFront Shock Ass'y. Includes 135a to 135c
-
135b715900209 O-Ring BushingO-Ring Bushing
-
135c715900210 Interior BushingInterior Bushing
-
135d706201617 Front Sping, Silver-Red. X Carbon/Black ModelFront Sping, Silver-Red. X Carbon/Black Model
-
135d706201124 Yellow Front Spring. X Black/Yellow ModelYellow Front Spring. X Black/Yellow Model
-
160706201670 RH ProtectorRH Protector
-
190706201669 LH ProtectorLH Protector
-
205293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241706200281 Hardened WasherHardened Washer
-
250211400017 Cotter PinCotter Pin
-
260207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
270233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
280706200865 Sway BarSway Bar
-
290706200894 LH Double Ball JointLH Double Ball Joint
-
300706201032 RH Double Ball JointRH Double Ball Joint
-
320706201086 Stabilizer BushingStabilizer Bushing
-
330706201087 ClampClamp
-
340506060600 U-clampU-clamp
-
345233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
350232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
