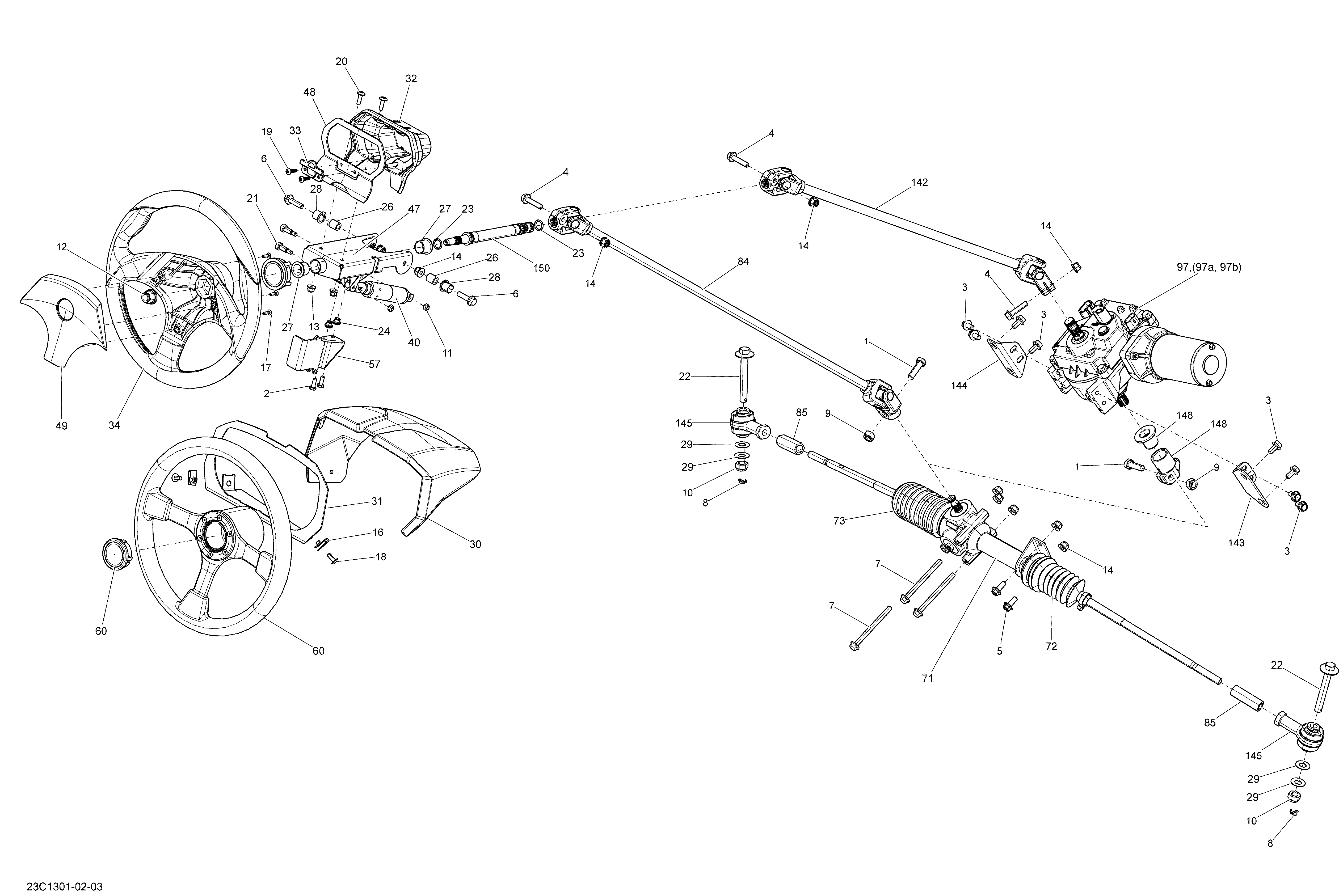

07- Steering для BRP Commander STD, DPS, XT, X 1000 EFI - 2013

  • №
    Артикул
    Название
  • 1
    207103586 Hex. Screw M10 X 35
    Hex. Screw M10 X 35
  • 2
    207361644 Hex. Screw M6 X 16, Scotch Grip
    Hex. Screw M6 X 16, Scotch Grip
  • 3
    207581644 Hex. Flanged Screw M8 X 16, Scotch Grip
    Hex. Flanged Screw M8 X 16, Scotch Grip
  • 4
    207583586 Hex. Flanged Screw M8 X 35, Scotch Grip. STD
    Hex. Flanged Screw M8 X 35, Scotch Grip. STD
  • 4
    207583586 Hex. Flanged Screw M8 X 35, Scotch Grip. X, XT, DPS
    Hex. Flanged Screw M8 X 35, Scotch Grip. X, XT, DPS
  • 5
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 6
    207683044 Hex. Flanged Screw M8 X 30
    Hex. Flanged Screw M8 X 30
  • 7
    207689534 Hex. Flanged Scew M8 X 95
    Hex. Flanged Scew M8 X 95
  • 8
    211400017 Cotter Pin
    Cotter Pin
  • 9
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 10
    232521416 Elastic Flanged Stop Nut M12
    Elastic Flanged Stop Nut M12
  • 11
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 12
    233221414 Hex. Flanged Elastic Nut M12
    Hex. Flanged Elastic Nut M12
  • 13
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 14
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 16
    250000048 Panel Nut M6 X 1.0. X, XT
    Panel Nut M6 X 1.0. X, XT
  • 17
    250000084 Phillips Screw K40 X 16. STD, DPS
    Phillips Screw K40 X 16. STD, DPS
  • 18
    250000129 Torx Screw M6 X 16. X, XT
    Torx Screw M6 X 16. X, XT
  • 19
    250000297 Truss Head Torx Screw K50 X 20. STD, DPS
    Truss Head Torx Screw K50 X 20. STD, DPS
  • 20
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 21
    250000381 Socket Head Screw
    Socket Head Screw
  • 22
    250000590 Hex. Cap Screw M12 X 88
    Hex. Cap Screw M12 X 88
  • 23
    293300144 O-Ring
    O-Ring
  • 24
    293450274 Insert. Europe
    Insert. Europe
  • 26
    293900106 Bushing
    Bushing
  • 27
    415108000 Cushion
    Cushion
  • 28
    705600799 Bushing
    Bushing
  • 29
    706200281 Hardened Washer
    Hardened Washer
  • 30
    707900124 Upper Cluster Cover. X, XT
    Upper Cluster Cover. X, XT
  • 31
    707900013 Cluster Support. X, XT
    Cluster Support. X, XT
  • 32
    709400514 Speedometer Cover. STD, DPS
    Speedometer Cover. STD, DPS
  • 33
    709400573 Latch Indicator Cover. STD, DPS
    Latch Indicator Cover. STD, DPS
  • 34
    709400650 Steering Wheel. STD, DPS
    Steering Wheel. STD, DPS
  • 40
    709400656 Adjustment Cylinder
    Adjustment Cylinder
  • 47
    709400655 Steering Support
    Steering Support
  • 48
    709400760 Cluster Support. STD, DPS
    Cluster Support. STD, DPS
  • 49
    709400780 Steering Center. STD, DPS
    Steering Center. STD, DPS
  • 57
    709400810 Flasher Arm Support. Europe
    Flasher Arm Support. Europe
  • 60
    715001134 Steering Wheel Kit. X, XT
    Steering Wheel Kit. X, XT
  • 71
    709401195 Rack And Pinion Steering Ass'y
    Rack And Pinion Steering Ass'y
  • 72
    715900078 RH Boot Kit
    RH Boot Kit
  • 73
    715900077 LH Boot Kit
    LH Boot Kit
  • 84
    709400900 Steering Column. STD
    Steering Column. STD
  • 85
    715900150 Nut Tie Rod End
    Nut Tie Rod End
  • 97
    709401068 Power Steering Ass'y. X, XT, DPS
    Power Steering Ass'y. X, XT, DPS
  • 142
    709401070 Steering Shaft Ass'y. X, XT, DPS
    Steering Shaft Ass'y. X, XT, DPS
  • 143
    709401128 RH DPS Support. X, XT, DPS
    RH DPS Support. X, XT, DPS
  • 144
    709401129 LH DPS Support. X, XT, DPS
    LH DPS Support. X, XT, DPS
  • 145
    709401134 Ball Joint
    Ball Joint
  • 148
    709401138 Coupling Ass'y. X, XT, DPS
    Coupling Ass'y. X, XT, DPS
  • 150
    709401167 Steering Shaft
    Steering Shaft
