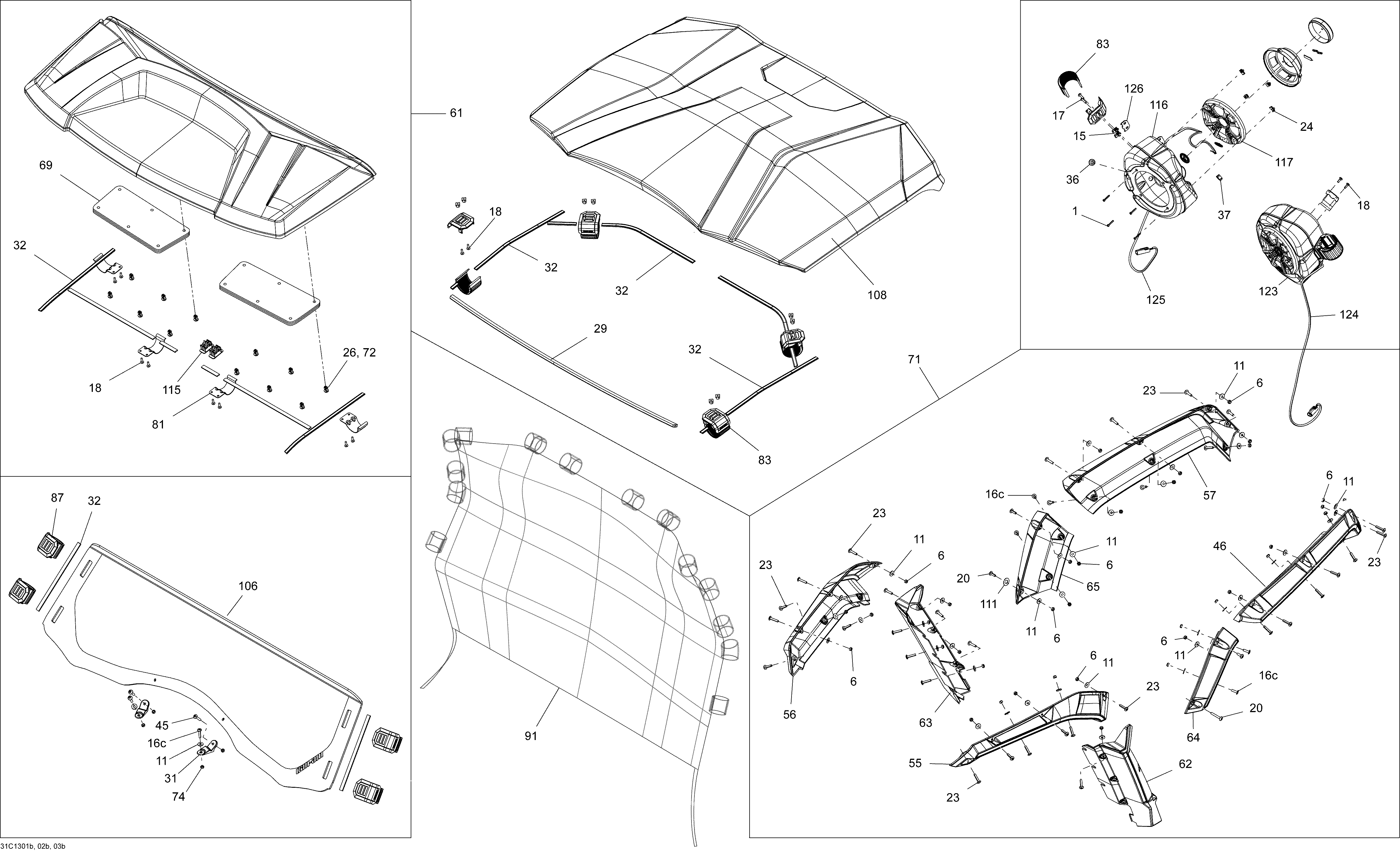

09- Body And Accessories Kit для BRP Commander STD, DPS, XT, X 1000 EFI - 2013
-
№АртикулНазвание
-
6232561434 Elastic Stop Nut M6. XTElastic Stop Nut M6. XT
-
11234062670 Flat Washer. XTFlat Washer. XT
-
16c250000488 Torx Truss Screw M6 X 20. XTTorx Truss Screw M6 X 20. XT
-
20250000215 Torx Screw M6 X 45. XTTorx Screw M6 X 45. XT
-
23250000371 Torx Screw M6 X 30 Stainless. XTTorx Screw M6 X 30 Stainless. XT
-
46705003603 LH Upper Rear Mudguards. XTLH Upper Rear Mudguards. XT
-
55705003058 LH Upper Front Mudguards. XTLH Upper Front Mudguards. XT
-
56705003059 RH Upper Front Mudguards. XTRH Upper Front Mudguards. XT
-
57705003604 RH Upper Rear Mudguards. XTRH Upper Rear Mudguards. XT
-
62705003601 LH Lower Front Mudguards. XTLH Lower Front Mudguards. XT
-
63705003602 RH Lower Front Mudguards. XTRH Lower Front Mudguards. XT
-
64705003605 LH Lower Rear Mudguards. XTLH Lower Rear Mudguards. XT
-
65705003606 RH Lower Rear Mudguards. XTRH Lower Rear Mudguards. XT
-
71715001013 Fender Extension Kit. XTFender Extension Kit. XT
-
111706200281 Hardened Washer. XTHardened Washer. XT
