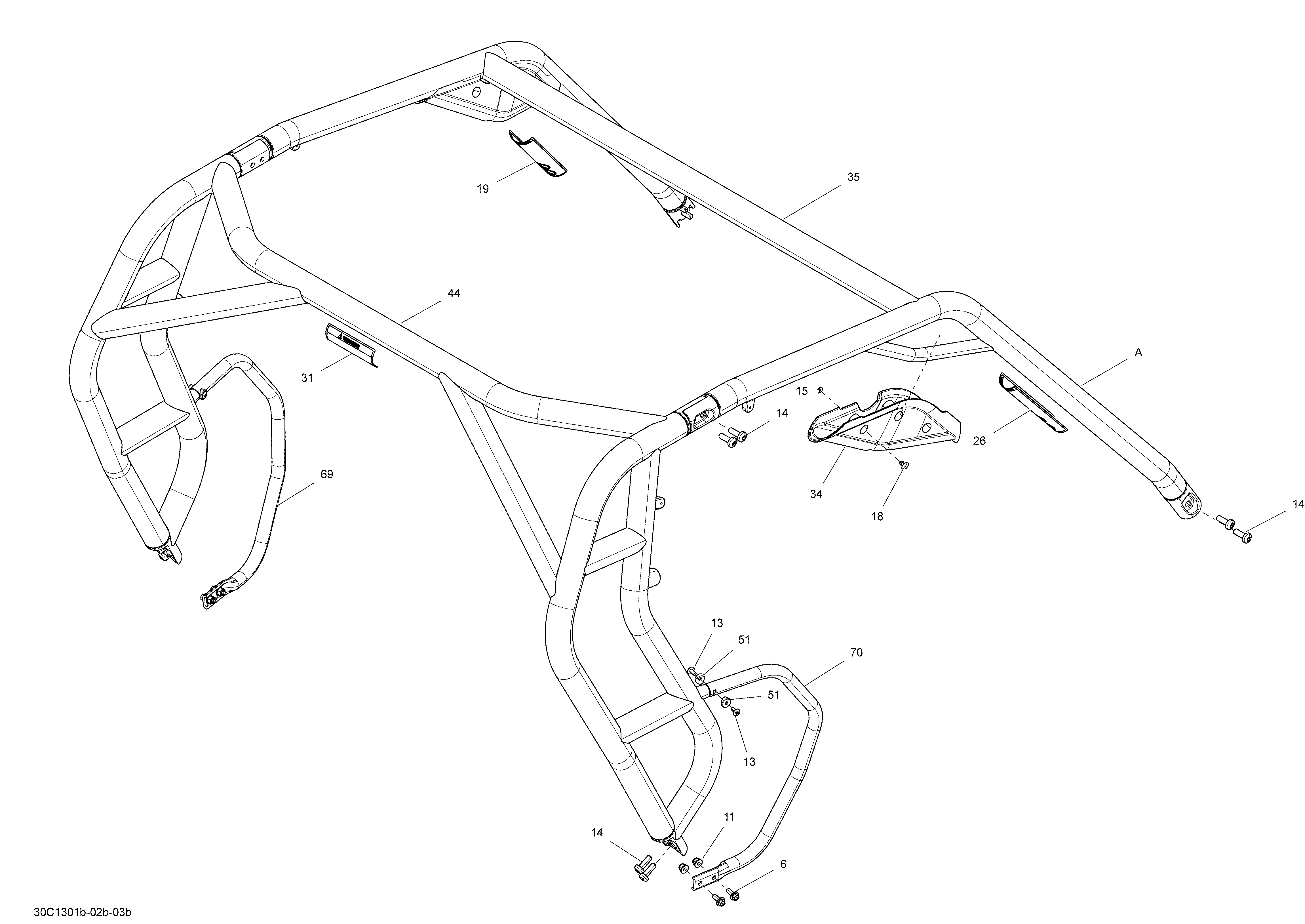

09- Frame Safety Cage для BRP Commander STD, DPS, XT, X 1000 EFI - 2013
-
№АртикулНазвание
-
6207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13250000439 Torx Truss Screw M6 X 14Torx Truss Screw M6 X 14
-
14250000624 Screw Torx M10 X 30Screw Torx M10 X 30
-
15250200121 Flat WasherFlat Washer
-
18293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
19704902413 Warning LabelWarning Label
-
26704902415 Warning LabelWarning Label
-
31704902424 Warning LabelWarning Label
-
34705004985 LH Cage Cap MouldingLH Cage Cap Moulding
-
34705004986 RH Cage Cap MouldingRH Cage Cap Moulding
-
51705202223 Offset WasherOffset Washer
-
69705202944 LH Side Protecting TubeLH Side Protecting Tube
-
70705202943 RH Side Protecting TubeRH Side Protecting Tube
-
A705203074 Cage KitCage Kit
