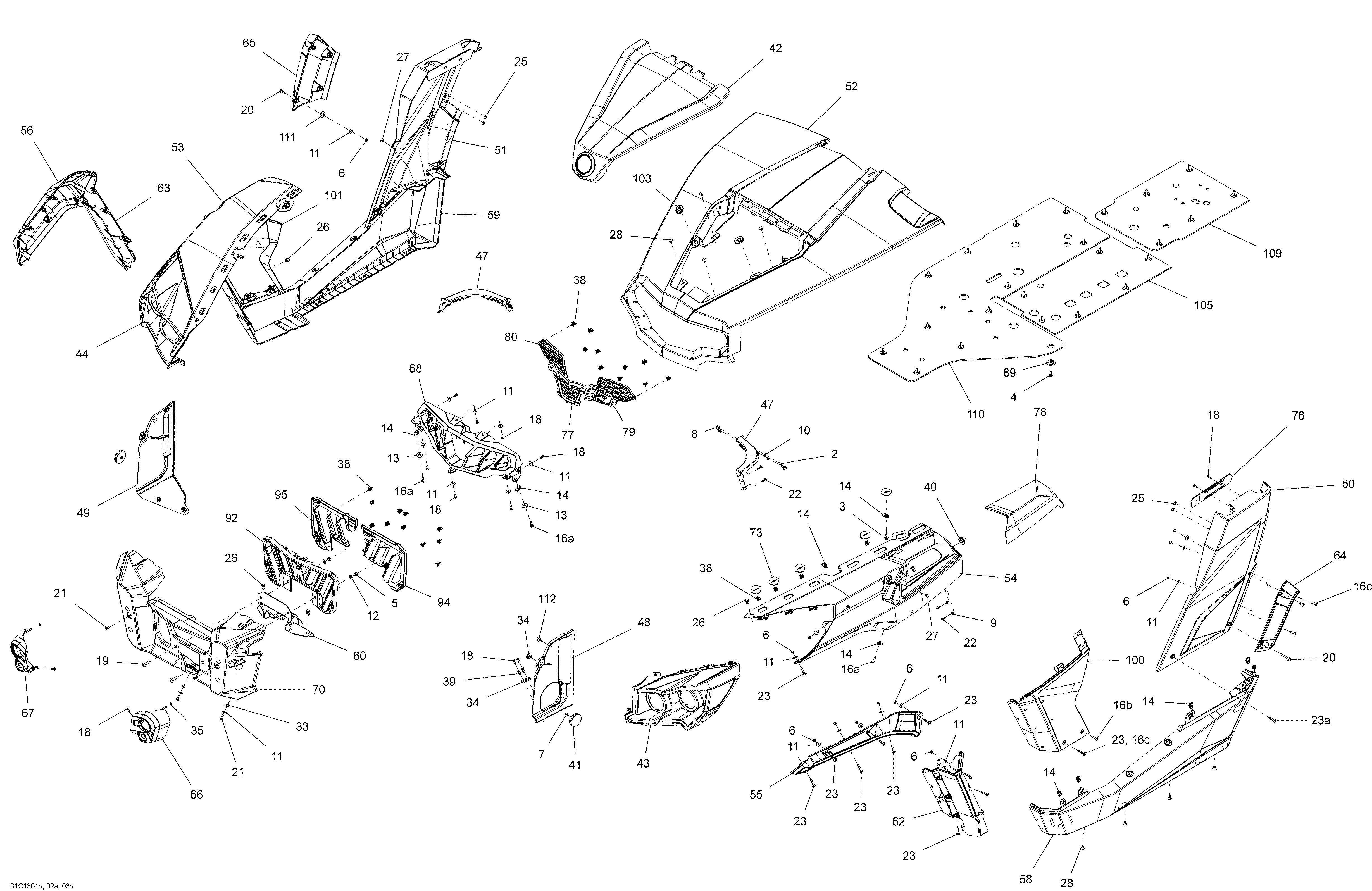

09- Body And Accessories для BRP Commander STD, DPS, XT, X 1000 EFI - 2013

  • №
    Артикул
    Название
  • 2
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 3
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 4
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 5
    232081414 Hex. Nut M8. STD, DPS, X
    Hex. Nut M8. STD, DPS, X
  • 6
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 7
    233251414 Hex. Flanged Elastic Nut M5. Except Europe
    Hex. Flanged Elastic Nut M5. Except Europe
  • 8
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 9
    234051410 Flat Washer M5
    Flat Washer M5
  • 10
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 11
    234062670 Flat Washer
    Flat Washer
  • 12
    234081410 Flat Washer 8 mm. STD, DPS, X
    Flat Washer 8 mm. STD, DPS, X
  • 13
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 14
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 18
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 19
    250000197 Torx Truss Screw M8 X 30. STD, DPS, X
    Torx Truss Screw M8 X 30. STD, DPS, X
  • 20
    250000215 Torx Screw M6 X 45
    Torx Screw M6 X 45
  • 21
    250000261 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 22
    250000297 Truss Head Torx Screw K50 X 20
    Truss Head Torx Screw K50 X 20
  • 23
    250000371 Torx Screw M6 X 30 Stainless
    Torx Screw M6 X 30 Stainless
  • 25
    250100129 Push Nut
    Push Nut
  • 26
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 27
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 28
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 33
    293450274 Insert
    Insert
  • 34
    293720053 Grommet
    Grommet
  • 35
    389804300 Push Nut. Europe
    Push Nut. Europe
  • 38
    517302785 Clip
    Clip
  • 39
    517303439 Knob
    Knob
  • 40
    517303756 Grommet
    Grommet
  • 41
    705002409 Amber Reflector. Except Europe
    Amber Reflector. Except Europe
  • 42
    705002881 Removable Hood, Yellow. Yellow
    Removable Hood, Yellow. Yellow
  • 42
    705004384 Removable Hood, Red. Red
    Removable Hood, Red. Red
  • 42
    705004385 Removable Hood, Camo. CAMO
    Removable Hood, Camo. CAMO
  • 42
    705004386 Removable Hood, Black. X Black
    Removable Hood, Black. X Black
  • 42
    705005291 Removable Hood, Magnesium. Magnesium
    Removable Hood, Magnesium. Magnesium
  • 42
    705006057 Removable Hood, White. White
    Removable Hood, White. White
  • 42
    705006058 Removable Hood, Graphite. Black Carbon Fiber
    Removable Hood, Graphite. Black Carbon Fiber
  • 43
    705002885 LH Front Facia
    LH Front Facia
  • 44
    705002886 RH Front Facia
    RH Front Facia
  • 47
    705002891 Facia Front Support
    Facia Front Support
  • 48
    705002895 LH Deflector. STD, DPS, X
    LH Deflector. STD, DPS, X
  • 48
    705005113 LH Deflector. XT
    LH Deflector. XT
  • 49
    705002894 RH Deflector
    RH Deflector
  • 50
    705002904 LH Rear Lateral Pannel, Yellow. DPS
    LH Rear Lateral Pannel, Yellow. DPS
  • 50
    705003850 LH Rear Lateral Pannel, Red. XT Red
    LH Rear Lateral Pannel, Red. XT Red
  • 50
    705002904 LH Rear Lateral Pannel, Yellow. XT Yellow
    LH Rear Lateral Pannel, Yellow. XT Yellow
  • 50
    705004396 LH Rear Lateral Pannel, Camo. CAMO
    LH Rear Lateral Pannel, Camo. CAMO
  • 50
    705004398 LH Rear Lateral Pannel, Black. X Black
    LH Rear Lateral Pannel, Black. X Black
  • 50
    705005297 LH Rear Lateral Pannel, Magnesium. Magnesium
    LH Rear Lateral Pannel, Magnesium. Magnesium
  • 50
    705006064 LH Rear Lateral Pannel, White. White
    LH Rear Lateral Pannel, White. White
  • 50
    705006066 LH Rear Lateral Pannel, Red. STD
    LH Rear Lateral Pannel, Red. STD
  • 50
    705006068 LH Rear Lateral Pannel, Graphite. Black Carbon Fiber
    LH Rear Lateral Pannel, Graphite. Black Carbon Fiber
  • 50
    705002904 LH Rear Lateral Pannel, Yellow. XT Yellow
    LH Rear Lateral Pannel, Yellow. XT Yellow
  • 51
    705002905 RH Rear Lateral Pannel, Yellow. DPS
    RH Rear Lateral Pannel, Yellow. DPS
  • 51
    705003851 RH Rear Lateral Pannel, Red. XT Red
    RH Rear Lateral Pannel, Red. XT Red
  • 51
    705002905 RH Rear Lateral Pannel, Yellow. XT Yellow
    RH Rear Lateral Pannel, Yellow. XT Yellow
  • 51
    705004395 RH Rear Lateral Pannel, Camo. CAMO
    RH Rear Lateral Pannel, Camo. CAMO
  • 51
    705004397 RH Rear Lateral Pannel, Black. X Black
    RH Rear Lateral Pannel, Black. X Black
  • 51
    705005299 RH Rear Lateral Pannel, Magnesium. Magnesium
    RH Rear Lateral Pannel, Magnesium. Magnesium
  • 51
    705006065 RH Rear Lateral Pannel, White. White
    RH Rear Lateral Pannel, White. White
  • 51
    705006067 RH Rear Lateral Pannel, Red. STD
    RH Rear Lateral Pannel, Red. STD
  • 51
    705006069 RH Rear Lateral Pannel, Graphite. Black Carbon Fiber
    RH Rear Lateral Pannel, Graphite. Black Carbon Fiber
  • 51
    705002905 RH Rear Lateral Pannel, Yellow. XT Yellow
    RH Rear Lateral Pannel, Yellow. XT Yellow
  • 52
    705002915 Yellow Fixed Hood. X Black
    Yellow Fixed Hood. X Black
  • 52
    705002915 Yellow Fixed Hood. Yellow
    Yellow Fixed Hood. Yellow
  • 52
    705004379 Red Fixed Hood. Red
    Red Fixed Hood. Red
  • 52
    705004380 Camo Fixed Hood. CAMO
    Camo Fixed Hood. CAMO
  • 52
    705005289 Magnesium Fixed Hood. Magnesium
    Magnesium Fixed Hood. Magnesium
  • 52
    705006036 White Fixed Hood. White
    White Fixed Hood. White
  • 52
    705006056 Fixed Hood, Metallic Black. Black Carbon Fiber
    Fixed Hood, Metallic Black. Black Carbon Fiber
  • 53
    705003029 RH Front Fender, Yellow. DPS
    RH Front Fender, Yellow. DPS
  • 53
    705003827 RH Front Fender, Red. XT Red
    RH Front Fender, Red. XT Red
  • 53
    705003029 RH Front Fender, Yellow. XT Yellow
    RH Front Fender, Yellow. XT Yellow
  • 53
    705004375 RH Front Fender, Camo. CAMO
    RH Front Fender, Camo. CAMO
  • 53
    705004377 RH Front Fender, Black. X Black
    RH Front Fender, Black. X Black
  • 53
    705005285 RH Front Fender, Magnesium. Magnesium
    RH Front Fender, Magnesium. Magnesium
  • 53
    705006051 RH Front Fender, Red. STD
    RH Front Fender, Red. STD
  • 53
    705006052 RH Front Fender, White. White
    RH Front Fender, White. White
  • 53
    705006053 RH Front Fender, Graphite. Black Carbon Fiber
    RH Front Fender, Graphite. Black Carbon Fiber
  • 53
    705003029 RH Front Fender, Yellow. XT Yellow
    RH Front Fender, Yellow. XT Yellow
  • 54
    705003030 LH Front Fender, Yellow. DPS
    LH Front Fender, Yellow. DPS
  • 54
    705003826 LH Front Fender, Red. XT Red
    LH Front Fender, Red. XT Red
  • 54
    705003030 LH Front Fender, Yellow. XT Yellow
    LH Front Fender, Yellow. XT Yellow
  • 54
    705004376 LH Front Fender, Camo. CAMO
    LH Front Fender, Camo. CAMO
  • 54
    705004378 LH Front Fender, Black. X Black
    LH Front Fender, Black. X Black
  • 54
    705005283 LH Front Fender, Magnesium. Magnesium
    LH Front Fender, Magnesium. Magnesium
  • 54
    705006048 LH Front Fender, White. White
    LH Front Fender, White. White
  • 54
    705006049 LH Front Fender, Graphite. Black Carbon Fiber
    LH Front Fender, Graphite. Black Carbon Fiber
  • 54
    705006050 LH Front Fender, Red. STD
    LH Front Fender, Red. STD
  • 54
    705003030 LH Front Fender, Yellow. XT Yellow
    LH Front Fender, Yellow. XT Yellow
  • 55
    705003058 LH Upper Front Mudguards. XT Except Europe
    LH Upper Front Mudguards. XT Except Europe
  • 55
    705003058 LH Upper Front Mudguards. Black Carbon Fiber
    LH Upper Front Mudguards. Black Carbon Fiber
  • 55
    705003058 LH Upper Front Mudguards
    LH Upper Front Mudguards
  • 56
    705003059 RH Upper Front Mudguards. Black Carbon Fiber
    RH Upper Front Mudguards. Black Carbon Fiber
  • 56
    705003059 RH Upper Front Mudguards. XT Except Europe
    RH Upper Front Mudguards. XT Except Europe
  • 56
    705003059 RH Upper Front Mudguards
    RH Upper Front Mudguards
  • 58
    705004989 LH Middle Side Pannel. XT
    LH Middle Side Pannel. XT
  • 58
    705005946 LH Middle Side Pannel
    LH Middle Side Pannel
  • 58
    705004991 LH Middle Side Pannel. X
    LH Middle Side Pannel. X
  • 58
    705005946 LH Middle Side Pannel
    LH Middle Side Pannel
  • 58
    705005946 LH Middle Side Pannel. STD, DPS
    LH Middle Side Pannel. STD, DPS
  • 59
    705004990 RH Middle Side Pannel. XT
    RH Middle Side Pannel. XT
  • 59
    705005947 RH Middle Side Pannel
    RH Middle Side Pannel
  • 59
    705004992 RH Middle Side Pannel. X
    RH Middle Side Pannel. X
  • 59
    705005947 RH Middle Side Pannel
    RH Middle Side Pannel
  • 59
    705005947 RH Middle Side Pannel. STD, DPS
    RH Middle Side Pannel. STD, DPS
  • 60
    705003399 Bottom Deflector. STD, DPS, X
    Bottom Deflector. STD, DPS, X
  • 62
    705003601 LH Lower Front Mudguards. Black Carbon Fiber
    LH Lower Front Mudguards. Black Carbon Fiber
  • 62
    705003601 LH Lower Front Mudguards. XT Except Europe
    LH Lower Front Mudguards. XT Except Europe
  • 62
    705003602 RH Lower Front Mudguards. XT Except Europe
    RH Lower Front Mudguards. XT Except Europe
  • 62
    705003602 RH Lower Front Mudguards. Black Carbon Fiber
    RH Lower Front Mudguards. Black Carbon Fiber
  • 62
    705003601 LH Lower Front Mudguards
    LH Lower Front Mudguards
  • 63
    705003602 RH Lower Front Mudguards
    RH Lower Front Mudguards
  • 64
    705003605 LH Lower Rear Mudguards. XT Except Europe
    LH Lower Rear Mudguards. XT Except Europe
  • 64
    705003605 LH Lower Rear Mudguards. Black Carbon Fiber
    LH Lower Rear Mudguards. Black Carbon Fiber
  • 64
    705003605 LH Lower Rear Mudguards
    LH Lower Rear Mudguards
  • 65
    705003606 RH Lower Rear Mudguards. XT Except Europe
    RH Lower Rear Mudguards. XT Except Europe
  • 65
    705003606 RH Lower Rear Mudguards. Black Carbon Fiber
    RH Lower Rear Mudguards. Black Carbon Fiber
  • 65
    705003606 RH Lower Rear Mudguards
    RH Lower Rear Mudguards
  • 66
    705003627 LH Flasher Cap. Europe
    LH Flasher Cap. Europe
  • 67
    705003628 RH Flasher Cap. Europe
    RH Flasher Cap. Europe
  • 68
    705003629 Upper Facia, Black
    Upper Facia, Black
  • 70
    705003306 Front Facia
    Front Facia
  • 73
    705003841 Support Plate
    Support Plate
  • 76
    705004261 Support Plate
    Support Plate
  • 77
    705004336 Center Upper Facia Protector
    Center Upper Facia Protector
  • 78
    705004337 Yellow CVT Inlet Cover. Yellow
    Yellow CVT Inlet Cover. Yellow
  • 78
    705004381 Red CVT Inlet Cover. Red
    Red CVT Inlet Cover. Red
  • 78
    705004382 Camo CVT Inlet Cover. CAMO
    Camo CVT Inlet Cover. CAMO
  • 78
    705004383 CVT Inlet Cover, Black. X Black
    CVT Inlet Cover, Black. X Black
  • 78
    705005287 Magnesium CVT Inlet Cover. Magnesium
    Magnesium CVT Inlet Cover. Magnesium
  • 78
    705006054 White CVT Inlet Cover. White
    White CVT Inlet Cover. White
  • 78
    705006055 CVT Inlet Cover, Graphite. Black Carbon Fiber
    CVT Inlet Cover, Graphite. Black Carbon Fiber
  • 79
    705004350 LH Upper Facia Protector
    LH Upper Facia Protector
  • 80
    705004351 RH Upper Facia Protector
    RH Upper Facia Protector
  • 89
    705004510 Cup
    Cup
  • 92
    705004755 Lower Front Facia Protector
    Lower Front Facia Protector
  • 94
    705004819 LH Lower Rear Facia Protector
    LH Lower Rear Facia Protector
  • 95
    705004820 RH Lower Rear Facia Protector
    RH Lower Rear Facia Protector
  • 100
    705002887 Yellow LH Front Lateral Pannel. DPS
    Yellow LH Front Lateral Pannel. DPS
  • 100
    705004996 Red LH Front Lateral Pannel. XT Red
    Red LH Front Lateral Pannel. XT Red
  • 100
    705002887 Yellow LH Front Lateral Pannel. XT Yellow
    Yellow LH Front Lateral Pannel. XT Yellow
  • 100
    705005559 Red LH Front Lateral Pannel. STD
    Red LH Front Lateral Pannel. STD
  • 100
    705005561 LH Front Lateral Pannel, Black. X Black
    LH Front Lateral Pannel, Black. X Black
  • 100
    705006037 White LH Front Lateral Pannel. White
    White LH Front Lateral Pannel. White
  • 100
    705006060 LH Front Lateral Pannel, Graphite. Black Carbon Fiber
    LH Front Lateral Pannel, Graphite. Black Carbon Fiber
  • 100
    705006378 CAMO LH Front Lateral Pannel. CAMO
    CAMO LH Front Lateral Pannel. CAMO
  • 100
    705006382 Magnesium-LH Front Lateral Pannel. Magnesium
    Magnesium-LH Front Lateral Pannel. Magnesium
  • 100
    705002887 Yellow LH Front Lateral Pannel. XT Yellow
    Yellow LH Front Lateral Pannel. XT Yellow
  • 101
    705002888 Yellow RH Front Lateral Pannel. DPS
    Yellow RH Front Lateral Pannel. DPS
  • 101
    705004997 Red RH Front Lateral Pannel. XT Red
    Red RH Front Lateral Pannel. XT Red
  • 101
    705002888 Yellow RH Front Lateral Pannel. XT Yellow
    Yellow RH Front Lateral Pannel. XT Yellow
  • 101
    705005558 Red RH Front Lateral Pannel. STD
    Red RH Front Lateral Pannel. STD
  • 101
    705005560 RH Front Lateral Pannel, Black. X Black
    RH Front Lateral Pannel, Black. X Black
  • 101
    705006059 White RH Front Lateral Pannel. White
    White RH Front Lateral Pannel. White
  • 101
    705006063 RH Front Lateral Pannel, Graphite. Black Carbon Fiber
    RH Front Lateral Pannel, Graphite. Black Carbon Fiber
  • 101
    705006379 CAMO RH Front Lateral Pannel. CAMO
    CAMO RH Front Lateral Pannel. CAMO
  • 101
    705006383 Magnesium RH Front Lateral Pannel. Magnesium
    Magnesium RH Front Lateral Pannel. Magnesium
  • 101
    705002888 Yellow RH Front Lateral Pannel. XT Yellow
    Yellow RH Front Lateral Pannel. XT Yellow
  • 103
    705005156 Oval Washer
    Oval Washer
  • 105
    705005415 LH Protector Plate
    LH Protector Plate
  • 109
    705006074 Rear Protector Plate
    Rear Protector Plate
  • 110
    705006075 RH Protector Plate
    RH Protector Plate
  • 111
    706200281 Hardened Washer. Black Carbon Fiber
    Hardened Washer. Black Carbon Fiber
  • 111
    706200281 Hardened Washer. XT Except Europe
    Hardened Washer. XT Except Europe
  • 111
    706200281 Hardened Washer
    Hardened Washer
  • 112
    708000759 Rubber Stopper
    Rubber Stopper
  • 16a
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 16b
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 16c
    250000488 Torx Truss Screw M6 X 20. XT Except Europe
    Torx Truss Screw M6 X 20. XT Except Europe
  • 16c
    250000488 Torx Truss Screw M6 X 20. Black Carbon Fiber
    Torx Truss Screw M6 X 20. Black Carbon Fiber
  • 23a
    250000398 Torx Truss Screw M6 X 30
    Torx Truss Screw M6 X 30

Все узлы модели:
