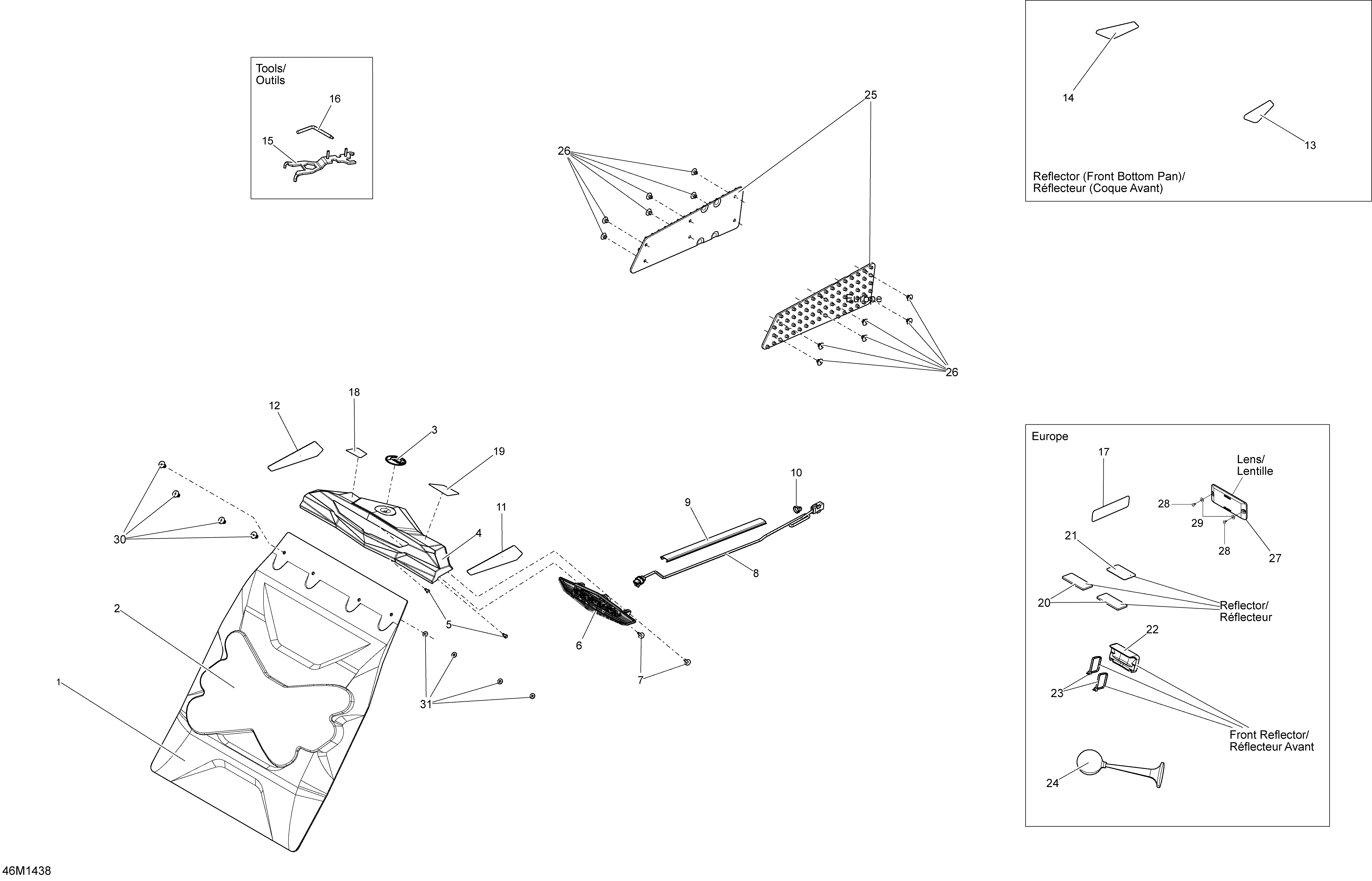

09- Utilities _46M1438 для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
1520001441 Snow FlapSnow Flap
-
2516003647 Decal XDecal X
-
3219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
4511000810 Light FairingLight Fairing
-
5241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
6520001143 Rear LightRear Light
-
7250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
8515177275 Wiring Harness Ass'yWiring Harness Ass'y
-
9520000829 Radiator TrimRadiator Trim
-
10293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
11520001239 Red RH Rear Reflector. Model-North AmericaRed RH Rear Reflector. Model-North America
-
11520001241 Yellow RH Rear Reflector. Model-EuropeYellow RH Rear Reflector. Model-Europe
-
12520001238 Red LH Rear Reflector. Model-North AmericaRed LH Rear Reflector. Model-North America
-
12520001240 Yellow LH Rear Reflector. Model-EuropeYellow LH Rear Reflector. Model-Europe
-
13520001237 Yellow RH Front ReflectorYellow RH Front Reflector
-
14520001236 Yellow LH Front ReflectorYellow LH Front Reflector
-
15520000988 Wrench SuspensionWrench Suspension
-
16417127044 Belt Installation ToolBelt Installation Tool
-
17516005873 ''CE'' Decal. Model-Europe''CE'' Decal. Model-Europe
-
18516005057 Warning Decal, SafetyWarning Decal, Safety
-
19516005058 Warning Decal, SafetyWarning Decal, Safety
-
20520000271 Amber Reflector. Model-EuropeAmber Reflector. Model-Europe
-
21415037900 White Reflector. Model-EuropeWhite Reflector. Model-Europe
-
22520000871 Reflector Support. Model-EuropeReflector Support. Model-Europe
-
23293750018 Tie Rap 371 mm. Model-EuropeTie Rap 371 mm. Model-Europe
-
24549011291 Horn. Model-EuropeHorn. Model-Europe
-
25860200164 Grip Plate KitGrip Plate Kit
-
26293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
27510004350 Lens. Model-EuropeLens. Model-Europe
-
28293150008 Pop Rivet 3/16''. Model-EuropePop Rivet 3/16''. Model-Europe
-
29517124300 Washer. Model-EuropeWasher. Model-Europe
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
31517225900 Flat WasherFlat Washer
