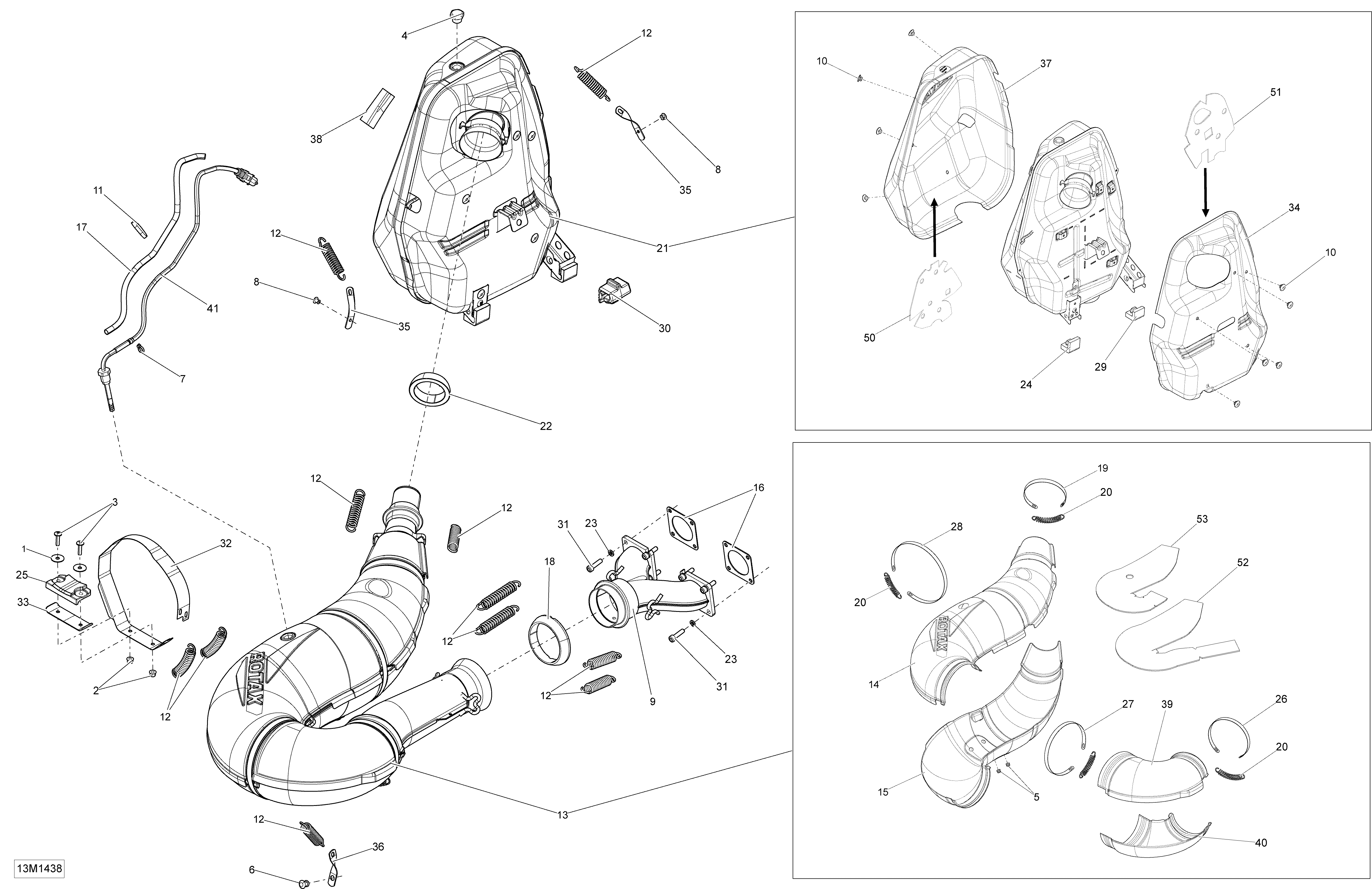

01- Exhaust System _13M1438 для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
1224060201 Flat WasherFlat Washer
-
2233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
3250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
4250100074 Hexagonal Head Pipe Plug M14Hexagonal Head Pipe Plug M14
-
5293150091 Henrob RivetHenrob Rivet
-
6293150147 Hemlock RivetHemlock Rivet
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
9420673422 Exhaust ManifoldExhaust Manifold
-
10390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12415107100 SpringSpring
-
13514055068 Tune Pipe Ass'yTune Pipe Ass'y
-
14514055067 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
15514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
16420850552 GasketGasket
-
17515175442 Tubing 6 mmTubing 6 mm
-
18514053487 Exhaust GasketExhaust Gasket
-
19514053499 Retaining StrapRetaining Strap
-
20514053643 SpringSpring
-
21514055083 Muffler Ass'yMuffler Ass'y
-
22514053812 Exhaust GasketExhaust Gasket
-
23514053953 WasherWasher
-
24514054274 Lower StopperLower Stopper
-
25514054275 BumperBumper
-
26514054408 Retaining StrapRetaining Strap
-
27514054409 Retaining StrapRetaining Strap
-
28514054410 Retaining StrapRetaining Strap
-
29514054496 Lower StopperLower Stopper
-
30514054606 Upper StopperUpper Stopper
-
31514054626 Socket Screw M6 X 22, Scotch GripSocket Screw M6 X 22, Scotch Grip
-
32514054637 Retaining StrapRetaining Strap
-
33514054638 Reinforcement PlateReinforcement Plate
-
34514054967 LH DeflectorLH Deflector
-
35514054974 Spring BracketSpring Bracket
-
36514054975 Spring BracketSpring Bracket
-
37514054986 RH DeflectorRH Deflector
-
38514054987 Heat ShieldHeat Shield
-
39514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
40514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
41514054870 Temperature SensorTemperature Sensor
-
50514054711 RH Insulating WoolRH Insulating Wool
-
51514054299 LH Insulating WoolLH Insulating Wool
-
52514054487 Insulating WoolInsulating Wool
-
53514054553 Insulating WoolInsulating Wool
