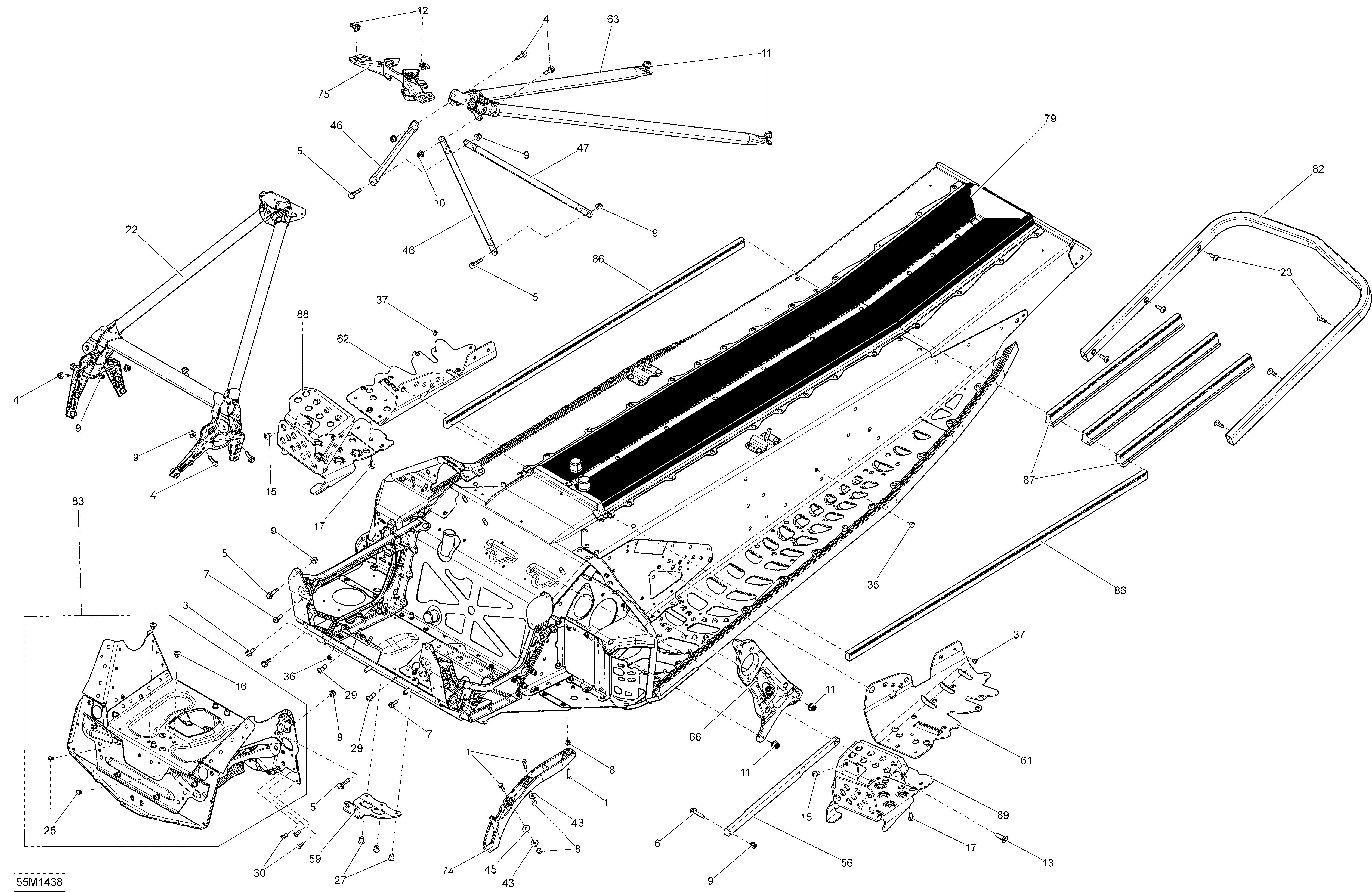

09- Frame And Components _55M1438 для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
1207152044 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
3207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
7210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
13250000143 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
15250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
16250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
17250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
22518327565 Front MemberFront Member
-
23250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
25293150144 Stavex RivetStavex Rivet
-
27293150147 Hemlock RivetHemlock Rivet
-
29293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
30293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
35293730047 Black Dart 8 mmBlack Dart 8 mm
-
35293730060 Black Dart 10 mmBlack Dart 10 mm
-
36293730053 Black Dart 5 mmBlack Dart 5 mm
-
37390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
43391301600 WasherWasher
-
45517124300 WasherWasher
-
46518325114 Upper Column SupportUpper Column Support
-
47518325115 Center Column SupportCenter Column Support
-
56518326118 LinkLink
-
59518326466 Module ReinforcementModule Reinforcement
-
61518327131 LH BracketLH Bracket
-
62518327132 RH BracketRH Bracket
-
63518326559 Rear MemberRear Member
-
66518326651 Pulley SupportPulley Support
-
74518326973 Front ProtectorFront Protector
-
75518327145 Sub A SupportSub A Support
-
79415129852 Frame Ass'yFrame Ass'y
-
82518327637 Black Rear BumperBlack Rear Bumper
-
83518327766 S-ModuleS-Module
-
86518328040 Front ProtectorFront Protector
-
87518328041 Rear ProtectorRear Protector
-
88518328106 RH FootrestRH Footrest
-
89518328107 LH FootrestLH Footrest
