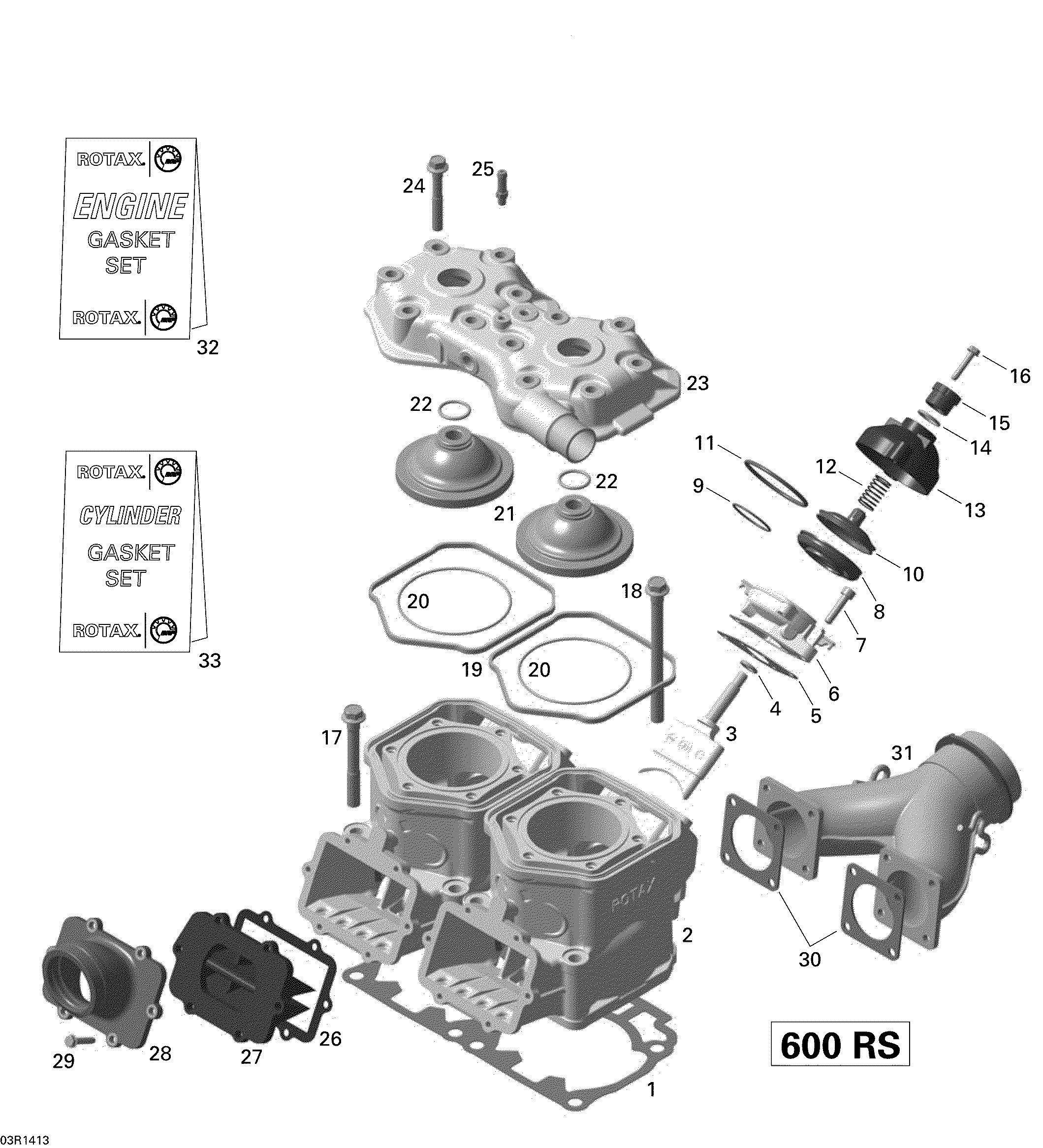

01- Cylinder, Exhaust Manifold And Reed Valve для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
1420450180 Gasket 0.5 mmGasket 0.5 mm
-
1420450181 Gasket 0.6 mmGasket 0.6 mm
-
1420450182 Gasket 0.7 mmGasket 0.7 mm
-
1420450183 Gasket 0.8 mmGasket 0.8 mm
-
2420623483 CylinderCylinder
-
3420854650 Exhaust ValveExhaust Valve
-
4420430110 O-RingO-Ring
-
5420931542 GasketGasket
-
6420854455 Valve HousingValve Housing
-
7205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
8420260729 BellowsBellows
-
9420838255 Hose SpringHose Spring
-
10420854449 Exhaust ValveExhaust Valve
-
11420939280 Hose SpringHose Spring
-
12420239944 SpringSpring
-
13420911558 Valve CoverValve Cover
-
14420430220 O-RingO-Ring
-
15420241221 Adjuster ScrewAdjuster Screw
-
16420241270 Hex. Taptite Screw M5 X 25Hex. Taptite Screw M5 X 25
-
17420640524 Hex. Collar ScrewHex. Collar Screw
-
18420640534 Hex. Collar ScrewHex. Collar Screw
-
19420931590 Rubber RingRubber Ring
-
20293300026 O-RingO-Ring
-
21420623358 Combustion Chamber InsertCombustion Chamber Insert
-
22420430370 O-RingO-Ring
-
23420623545 Cylinder Head CoverCylinder Head Cover
-
24420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
25420924720 Hose NippleHose Nipple
-
26420630815 GasketGasket
-
27420924791 Reed Valve Ass'yReed Valve Ass'y
-
28420667500 Intake SocketIntake Socket
-
29420241270 Hex. Taptite Screw M5 X 25Hex. Taptite Screw M5 X 25
-
30420850552 GasketGasket
-
31420673422 Exhaust ManifoldExhaust Manifold
-
32420889930 Gasket Set, EngineGasket Set, Engine
-
33420889935 Gasket Set, CylinderGasket Set, Cylinder
