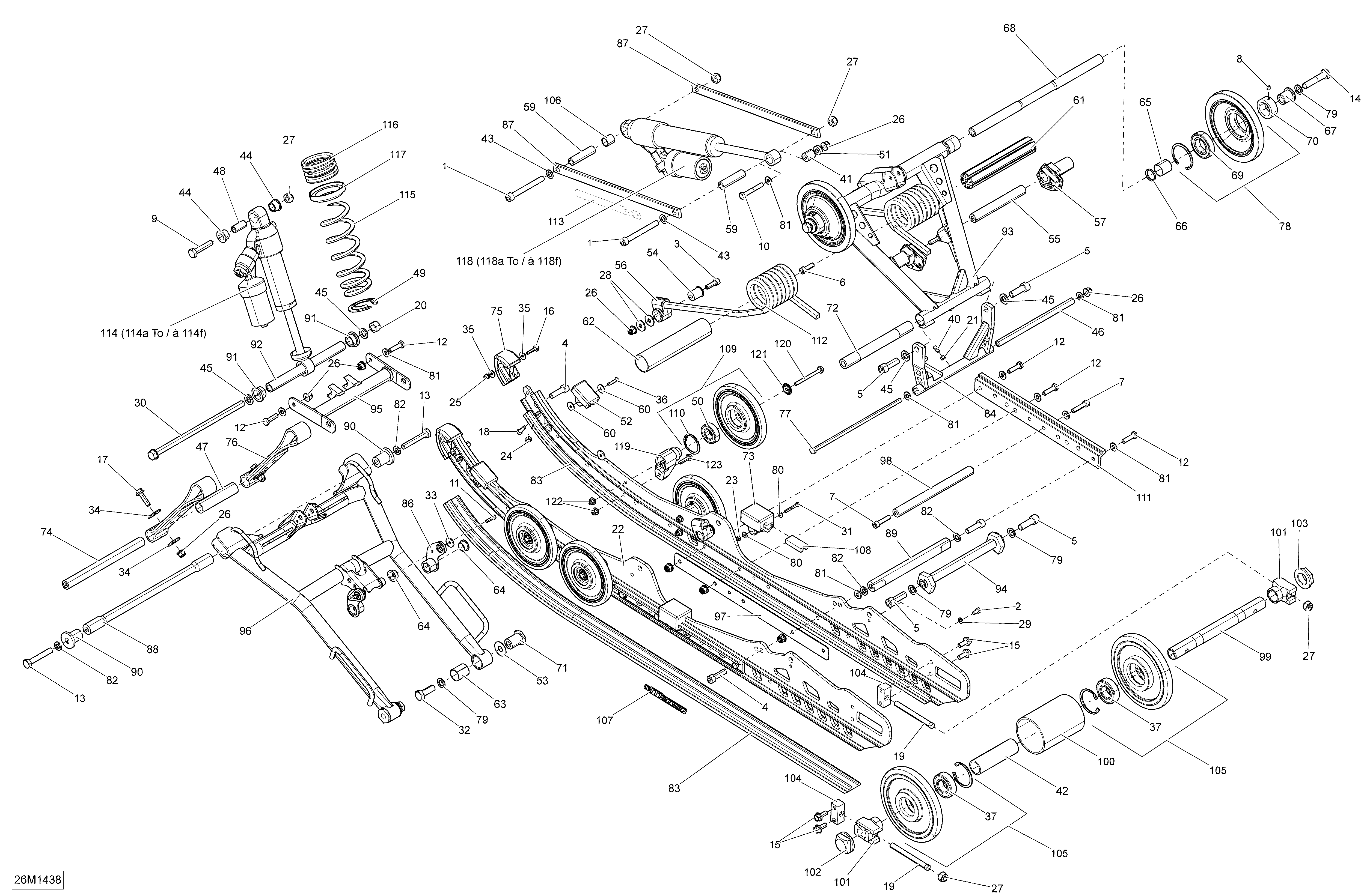

08- Rear Suspension _26M1438 для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
1205009044 Socket Screw M10 X 90Socket Screw M10 X 90
-
2205061260 Socket Head Screw M6 X 12Socket Head Screw M6 X 12
-
3205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
4205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
5205523587 Socket Head Screw Scotch Grip Din.912Socket Head Screw Scotch Grip Din.912
-
6205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
7205583544 Socket Head Screw M8 X 35, Scotch GripSocket Head Screw M8 X 35, Scotch Grip
-
8206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
9207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
10207085586 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
11207152044 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
12207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
13207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
14207226044 Hex. Screw M12 X 60, Scotch GripHex. Screw M12 X 60, Scotch Grip
-
15207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
16207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
17207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
18208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
19230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
20232021416 Hex. Nut M12Hex. Nut M12
-
21232061404 Hexagonal NutHexagonal Nut
-
22503193602 Runner, BlackRunner, Black
-
23232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
24232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
25233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
26233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
27233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
28234082410 Flat Washer 8 mmFlat Washer 8 mm
-
29234161471 Lock Washer M6, BlackLock Washer M6, Black
-
30250000229 Hex. Screw M12 X 252Hex. Screw M12 X 252
-
31250000483 Hex. Cap Screw M5 X 35Hex. Cap Screw M5 X 35
-
32250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
33250200016 WasherWasher
-
34250200128 Flat Washer 8 mmFlat Washer 8 mm
-
35250200140 WasherWasher
-
36293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
37293350055 Ball BearingBall Bearing
-
40408200700 Grease FittingGrease Fitting
-
41414936000 CushionCushion
-
42503156000 Center SpacerCenter Spacer
-
43503175800 WasherWasher
-
44503189117 CushionCushion
-
45503189148 WasherWasher
-
46503189156 Pivot Arm AxlePivot Arm Axle
-
47503189265 SpacerSpacer
-
48503189282 BushingBushing
-
49503190271 Spring StopperSpring Stopper
-
50503190396 Ball BearingBall Bearing
-
51503190526 SpacerSpacer
-
52503190576 Rubber StopperRubber Stopper
-
53503190656 WasherWasher
-
54503190754 Retainer CushionRetainer Cushion
-
55503191178 Spring Cam AxeSpring Cam Axe
-
56503191183 Spring SupportSpring Support
-
57503191191 LH Spring CamLH Spring Cam
-
57503191190 RH Spring CamRH Spring Cam
-
59503191192 Bar AxleBar Axle
-
60503191273 WasherWasher
-
61503191344 Spring AxleSpring Axle
-
62503191345 Plastic BushingPlastic Bushing
-
63503191554 BushingBushing
-
64503191555 Swivel BushingSwivel Bushing
-
65503191773 BushingBushing
-
66503191774 WasherWasher
-
67503191775 BushingBushing
-
68503191776 Upper ShaftUpper Shaft
-
69503191778 Ball BearingBall Bearing
-
70503191782 Retaining RingRetaining Ring
-
71503191966 Lower AxleLower Axle
-
72503192095 Lower ShaftLower Shaft
-
73503192099 Rubber StopperRubber Stopper
-
74503192115 Runner AxelRunner Axel
-
75503192299 Runner ProtectorRunner Protector
-
76503192360 Stopper StrapStopper Strap
-
77503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
78503192483 Black Wheel Ass'y 155 mmBlack Wheel Ass'y 155 mm
-
79503192491 WasherWasher
-
80503192493 WasherWasher
-
81503192494 WasherWasher
-
82503192496 WasherWasher
-
83503192618 Black Slider, 154''Black Slider, 154''
-
84503192701 Pivot ArmPivot Arm
-
86503192706 LH Rocker ArmLH Rocker Arm
-
86503192707 RH Rocker ArmRH Rocker Arm
-
87503192712 Tie RodTie Rod
-
88503192713 Slide BushingSlide Bushing
-
89503192715 Limit AxleLimit Axle
-
90503192721 BushingBushing
-
91503192726 CushionCushion
-
92503192809 Center Shaft PivotCenter Shaft Pivot
-
93503193126 Rear ArmRear Arm
-
94503193129 Axle CamAxle Cam
-
95503193285 Adjusted ReinforcementAdjusted Reinforcement
-
96503193685 Front Arm Ass'yFront Arm Ass'y
-
97503193690 ReinforcementReinforcement
-
98503193691 AxleAxle
-
99503193692 Rear AxleRear Axle
-
100503193693 BushingBushing
-
101503193694 SpacerSpacer
-
102503193695 NutNut
-
103503193696 NutNut
-
104503193697 TensionerTensioner
-
105503193719 Black Wheel Ass'y, 165 mmBlack Wheel Ass'y, 165 mm
-
106505072663 Leg CushionLeg Cushion
-
107516004755 Runner DecalRunner Decal
-
108572084800 Reinforcement StopperReinforcement Stopper
-
109503191316 Black Wheel Ass'y, 141 mmBlack Wheel Ass'y, 141 mm
-
110415129371 Retaining RingRetaining Ring
-
111503193907 Reinforcement, BlackReinforcement, Black
-
112503191617 LH Spring, SquareLH Spring, Square
-
112503191616 RH Spring, SquareRH Spring, Square
-
113516005609 Shock Position DecalShock Position Decal
-
114503193750 Center Shock. Includes 114a To 114fCenter Shock. Includes 114a To 114f
-
114a415093807 O-RingO-Ring
-
114b415093806 Piston RingPiston Ring
-
114c505070398 Air ValveAir Valve
-
114d505070399 ScrewScrew
-
114e505070400 O-RingO-Ring
-
114f415093804 O-RingO-Ring
-
115503192724 Black SpringBlack Spring
-
116503193751 Black SpringBlack Spring
-
117503193131 Spring SpacerSpring Spacer
-
118503193752 Rear Shock. Includes 118a To 118fRear Shock. Includes 118a To 118f
-
118a415093807 O-RingO-Ring
-
118b415093806 Piston RingPiston Ring
-
118c505070398 Air ValveAir Valve
-
118d505070399 ScrewScrew
-
118e505070400 O-RingO-Ring
-
118f415093804 O-RingO-Ring
-
119503193082 Casted SupportCasted Support
-
120207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
121503191820 Wheel Cup M6Wheel Cup M6
-
122233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
123207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
