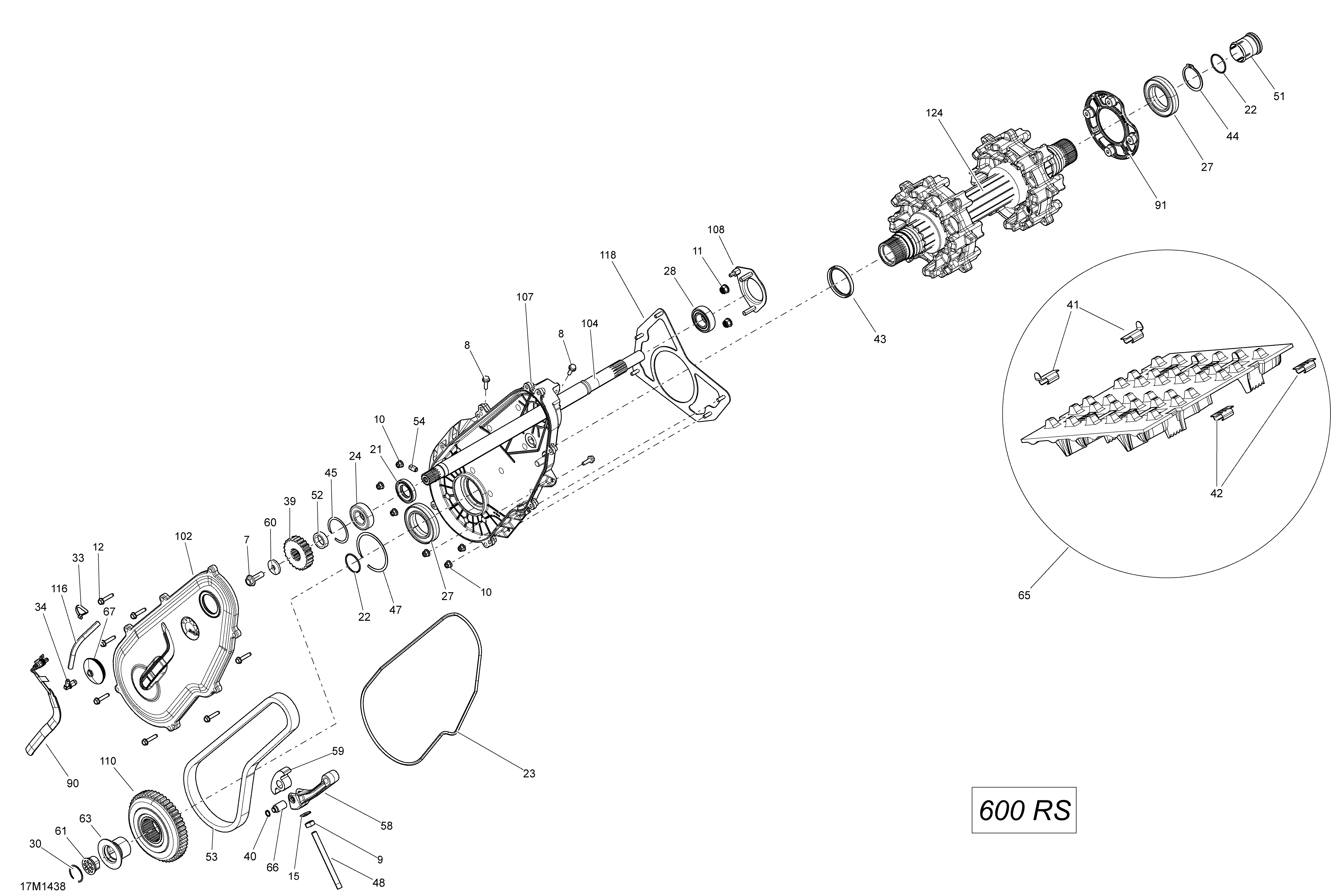

05- Drive System _17M1438 для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
7207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
8207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9232006414 Hex. Nut M10 X 1.5Hex. Nut M10 X 1.5
-
10233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12210263080 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
15250200100 Bonded WasherBonded Washer
-
21293250175 Oil SealOil Seal
-
22293300122 O-RingO-Ring
-
23293300130 Tight SealTight Seal
-
24293350055 Ball BearingBall Bearing
-
27293350059 Ball BearingBall Bearing
-
28293350074 Ball BearingBall Bearing
-
30293370052 CirclipCirclip
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34414580700 Male ConnectorMale Connector
-
39504139300 Sprocket (Large), 21 TeethSprocket (Large), 21 Teeth
-
40504152282 CirclipCirclip
-
41415129528 Track GuideTrack Guide
-
42504152651 CleatCleat
-
43504152571 SealSeal
-
44504152572 CirclipCirclip
-
45504152576 CirclipCirclip
-
47504152582 CirclipCirclip
-
48504152602 Adjustment ScrewAdjustment Screw
-
51504152619 Magnetic CapMagnetic Cap
-
52504152628 ShimShim
-
53504152630 Drive Chain, 106 LinksDrive Chain, 106 Links
-
54504152854 Magnetic Plug 1/8 - 27 NPTFMagnetic Plug 1/8 - 27 NPTF
-
58504152685 Chain TensionerChain Tensioner
-
59504152739 Slider ChainSlider Chain
-
60504152784 Spring Washer M10Spring Washer M10
-
61504152794 Magnetic AdaptorMagnetic Adaptor
-
63504152802 Threaded CapThreaded Cap
-
65504153259 Track Ass'y TR15X128X1.7RTrack Ass'y TR15X128X1.7R
-
66504152841 Tensioner AxleTensioner Axle
-
67504152860 CapCap
-
90504152896 Rotation SensorRotation Sensor
-
91504152949 Housing BearingHousing Bearing
-
102504153146 Chaincase Cover Ass'yChaincase Cover Ass'y
-
104504153166 CountershaftCountershaft
-
107504153180 ChaincaseChaincase
-
108504153185 Bearing HousingBearing Housing
-
110504153196 Sprocket, 49 TeethSprocket, 49 Teeth
-
116415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
-
118518325816 PlatePlate
-
124504153084 Drive Axle Ass'yDrive Axle Ass'y
