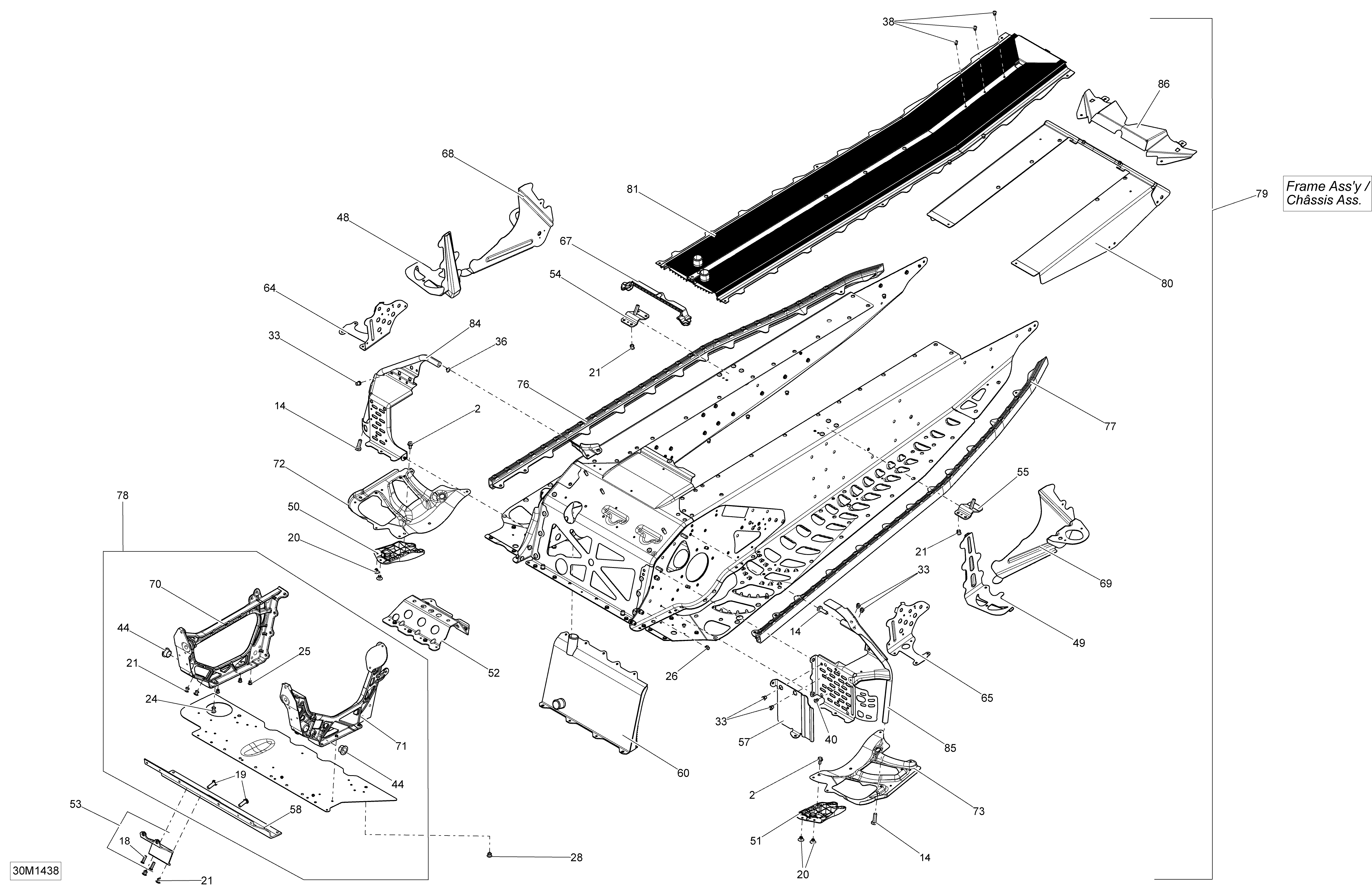

09- Frame _30M1438 для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
2207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
14250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
18250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
19250300038 Clinch StudClinch Stud
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
24293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
25293150144 Stavex RivetStavex Rivet
-
26293150146 Henrob RivetHenrob Rivet
-
28293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
33293450268 InsertInsert
-
36293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
38390909100 Avex RivetAvex Rivet
-
40390909200 Avex RivetAvex Rivet
-
44505073317 Leg CushionLeg Cushion
-
48518325747 RH ReinforcementRH Reinforcement
-
49518325748 LH ReinforcementLH Reinforcement
-
50518325782 RH DeflectorRH Deflector
-
51518325783 LH DeflectorLH Deflector
-
52518325796 Link CrossLink Cross
-
53518325943 MAG Engine SupportMAG Engine Support
-
54518325973 RH Rear BaseRH Rear Base
-
55518325974 LH Rear BaseLH Rear Base
-
57518326188 PlatePlate
-
58518326198 Front MemberFront Member
-
60518326486 Front RadiatorFront Radiator
-
64518326616 RH Front RetainerRH Front Retainer
-
65518326617 LH Front RetainerLH Front Retainer
-
67518326656 SealSeal
-
68518326766 RH Rear SupportRH Rear Support
-
69518326767 LH Rear SupportLH Rear Support
-
70518326795 RH MemberRH Member
-
71518326796 LH MemberLH Member
-
72518326937 RH ReinforcementRH Reinforcement
-
73518326938 LH ReinforcementLH Reinforcement
-
76518327187 RH RollerRH Roller
-
77518327188 LH RollerLH Roller
-
78518327567 Front E ModuleFront E Module
-
79415129852 Frame Ass'yFrame Ass'y
-
80518327624 Rear CapRear Cap
-
81518327632 Rear Welded RadiatorRear Welded Radiator
-
84518327841 RH StirupRH Stirup
-
85518327937 LH StirupLH Stirup
-
86518328263 Rear Light PlateRear Light Plate
