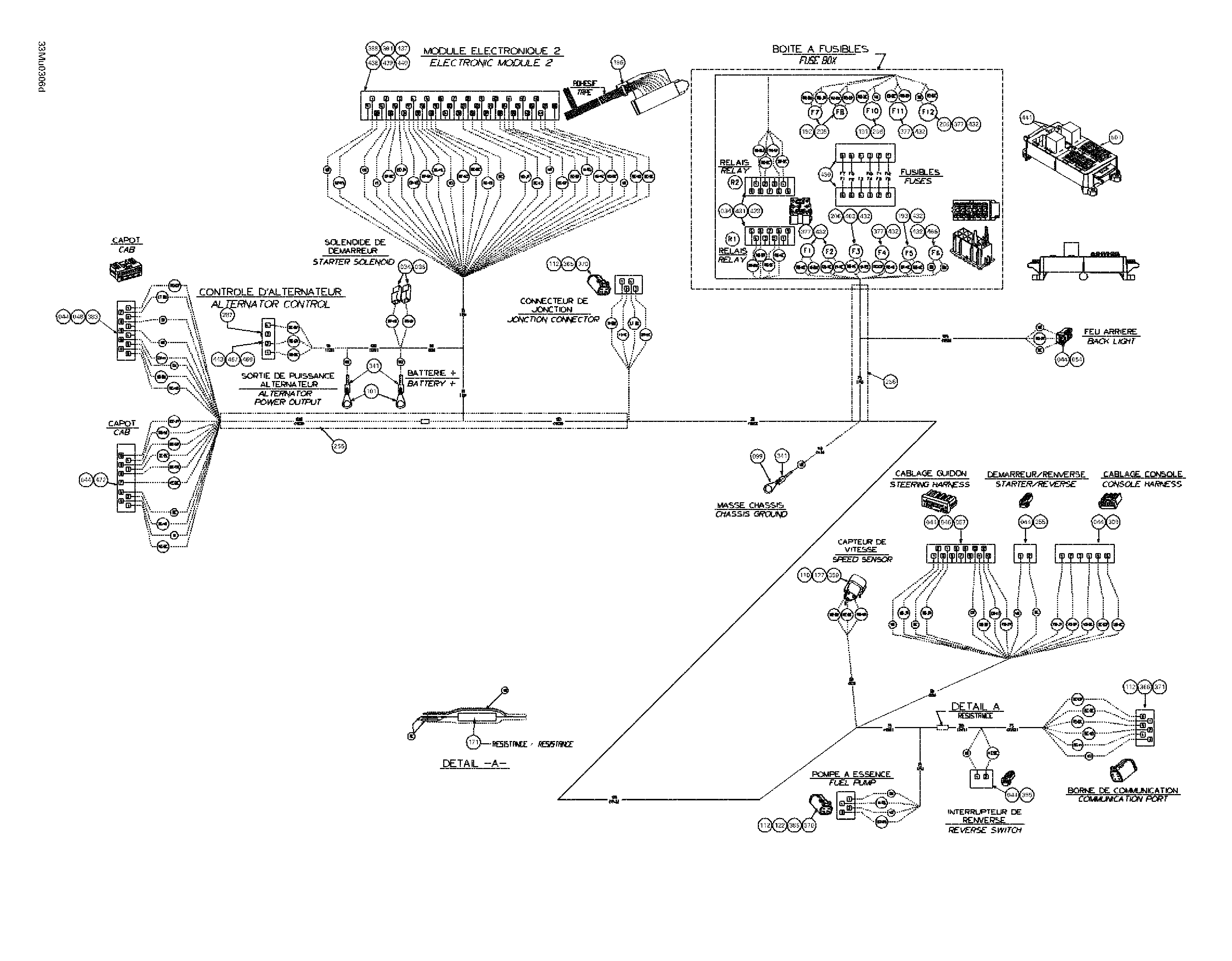

10- Frame Harness для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
34515175790 Frame harness. Includes 34 - 501.Frame harness. Includes 34 - 501.
-
34409010100 Female terminalFemale terminal
-
36409010400 Female terminal housing (1 circuit)Female terminal housing (1 circuit)
-
44515175231 Female terminalFemale terminal
-
46515175282 Female terminalFemale terminal
-
54515175495 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
57515175350 Female terminal housing (13 circuits)Female terminal housing (13 circuits)
-
101278001392 Open barrelOpen barrel
-
110278000631 Male terminalMale terminal
-
112278000632 Female terminalFemale terminal
-
122278000739 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
127409207600 Lock male (3 circuits)Lock male (3 circuits)
-
171515175241 ResistanceResistance
-
191410917200 Fuse (30 amperes)Fuse (30 amperes)
-
192409003900 Fuse (20 amperes)Fuse (20 amperes)
-
193409012800 Fuse (1 ampere)Fuse (1 ampere)
-
196293750002 Tie-rap 130 mmTie-rap 130 mm
-
206409004200 Female terminalFemale terminal
-
256415080000 Tubing (16 mm)Tubing (16 mm)
-
287710000080 CapCap
-
298293740005 Vinyl tape 3/4''Vinyl tape 3/4''
-
309515175543 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
355515175658 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
359515175666 Male terminal housing (3 circuits)Male terminal housing (3 circuits)
-
365515175672 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
366515175673 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
370515175677 Lock female (4 circuits)Lock female (4 circuits)
-
371515175678 Lock female (6 circuits)Lock female (6 circuits)
-
377278000344 Fuse (5 amperes)Fuse (5 amperes)
-
383515175719 Female terminal housing (11 circuits)Female terminal housing (11 circuits)
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
388278001750 Female terminalFemale terminal
-
391278001751 Female terminal housing (41 circuits)Female terminal housing (41 circuits)
-
403278000704 Fuse (7.5 amperes)Fuse (7.5 amperes)
-
430515175857 Fuse holderFuse holder
-
431515175856 Relay holderRelay holder
-
432515175855 Female terminalFemale terminal
-
433515175854 Female terminalFemale terminal
-
437515175886 SealSeal
-
438515175883 LatchLatch
-
439515175884 LockLock
-
440515175885 CoverCover
-
441410113604 RelayRelay
-
443710000335 Female terminalFemale terminal
-
467515175978 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
469515175979 SealSeal
