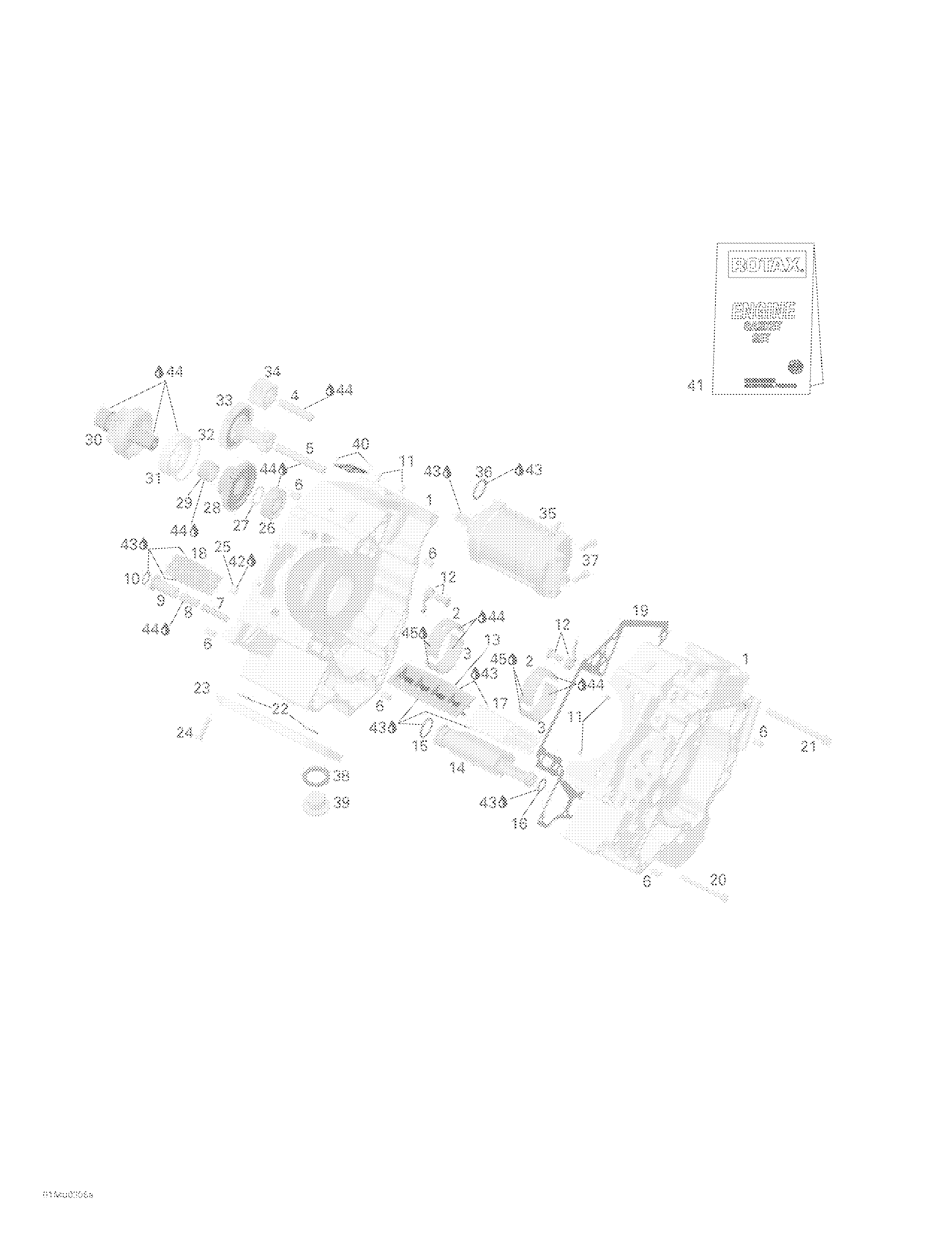

01- Crankcase для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1420888881 Crankcase ass'y. Includes 1 - 11.Crankcase ass'y. Includes 1 - 11.
-
2420933492 Bearing sleeveBearing sleeve
-
3420933495 Plain BearingPlain Bearing
-
4420229301 Location pinLocation pin
-
5420229410 PinPin
-
6420632010 Center pinCenter pin
-
7420239445 SpringSpring
-
8420256510 Pressure regulating pistonPressure regulating piston
-
9420956780 Valve seatValve seat
-
10420230880 O-ringO-ring
-
11420929650 Drive pin 5 x 10Drive pin 5 x 10
-
12420956820 Oil nozzle ass'yOil nozzle ass'y
-
13420924735 Valve housins ass'yValve housins ass'y
-
14420956790 Oil sieve ass'y. Includes 14 - 16.Oil sieve ass'y. Includes 14 - 16.
-
15420931630 O-ringO-ring
-
16293300024 O-ringO-ring
-
17420856070 Oil sieveOil sieve
-
18420856072 Oil sieveOil sieve
-
19420950600 GasketGasket
-
20420440602 Hex. flanged screw M6 x 65Hex. flanged screw M6 x 65
-
21420440412 Hex. flanged screw M8 x 90Hex. flanged screw M8 x 90
-
22420430370 O-ringO-ring
-
23420811770 CoverCover
-
24420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
25420240480 Plug screw 1/8-27 NPTPlug screw 1/8-27 NPT
-
26420232192 Ball bearingBall bearing
-
27420227440 Thurst washerThurst washer
-
28420834410 Cam clutch drive gear. (32 teeth)Cam clutch drive gear. (32 teeth)
-
29420232745 Needle bearingNeedle bearing
-
30420834405 Generator gear ass'y. Includes 30 - 32.Generator gear ass'y. Includes 30 - 32.
-
31420259492 Sprag clutchSprag clutch
-
32420845590 Snap ringSnap ring
-
33420834420 Double gear (61/11 teeth)Double gear (61/11 teeth)
-
34420834430 Intermediate gear (33 teeth)Intermediate gear (33 teeth)
-
35420296480 Electric starter ass'yElectric starter ass'y
-
37420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
38420950620 Gasket ring (plug screw)Gasket ring (plug screw)
-
39420641090 Plug screwPlug screw
-
41420889980 Gasket set engineGasket set engine
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
43293550014 Grease, super lubeGrease, super lube
-
44293600054 Engine oil 4 strokes, 0W40, 12 x 1 literEngine oil 4 strokes, 0W40, 12 x 1 liter
-
45420899271 Petamo grease GHY133N, 400 gPetamo grease GHY133N, 400 g
