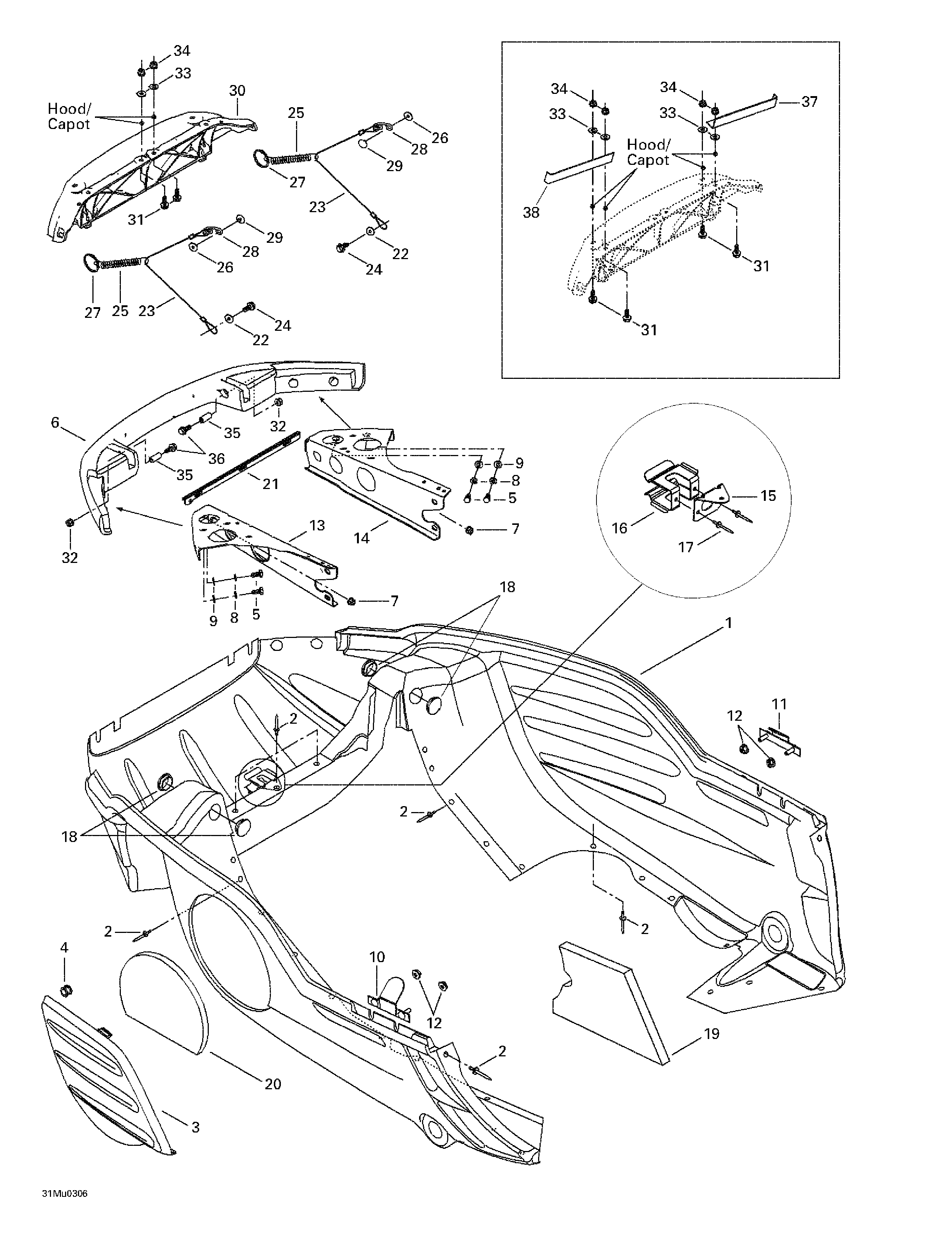

09- Bottom Pan для BRP Ski-Doo Legend V-1000 - 2003

-
№АртикулНазвание
-
1502006635 Bottom pan (BLUE (B-226))Bottom pan (BLUE (B-226))
-
2293150108 Pop rivet 3/16''Pop rivet 3/16''
-
3502006641 Bottom pan door (BLUE (B-226))Bottom pan door (BLUE (B-226))
-
4414036300 GrommetGrommet
-
5207161444 Hex. screw M6 x 14Hex. screw M6 x 14
-
6502006642 Bumper (BLUE (B-226))Bumper (BLUE (B-226))
-
7233261414 Elastic flanged nut M6Elastic flanged nut M6
-
8234161471 Lock washer 6 mmLock washer 6 mm
-
9224061121 Flat washerFlat washer
-
10502006645 L.H. bracketL.H. bracket
-
11502006685 R.H. bracketR.H. bracket
-
12233261414 Elastic flanged nut M6Elastic flanged nut M6
-
13502006597 L.H. supportL.H. support
-
14502006602 R.H. supportR.H. support
-
15502006599 Belt supportBelt support
-
16517281905 BracketBracket
-
17390402400 Pop rivet 3/16''Pop rivet 3/16''
-
18414916600 Nylon capNylon cap
-
19502006558 Bottom foamBottom foam
-
20502006559 Bottom pan door foamBottom pan door foam
-
21502006647 Bottom pan reinforcementBottom pan reinforcement
-
22391301600 WasherWasher
-
23415093900 Retainer cableRetainer cable
-
25415043300 SpringSpring
-
26517124300 WasherWasher
-
27415058300 RingRing
-
28517262800 BracketBracket
-
29293150104 Pop rivet 3/16''Pop rivet 3/16''
-
30517302631 HingeHinge
-
31207662084 Hex. flanged screw M6 x 20Hex. flanged screw M6 x 20
-
32233261414 Elastic flanged nut M6Elastic flanged nut M6
-
33224061201 Flat washerFlat washer
-
34232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
35517302179 BushingBushing
-
36207663544 Hex. flanged screw M6 x 35Hex. flanged screw M6 x 35
-
37517302949 R.H. corner supportR.H. corner support
-
38517302950 L.H. corner supportL.H. corner support
