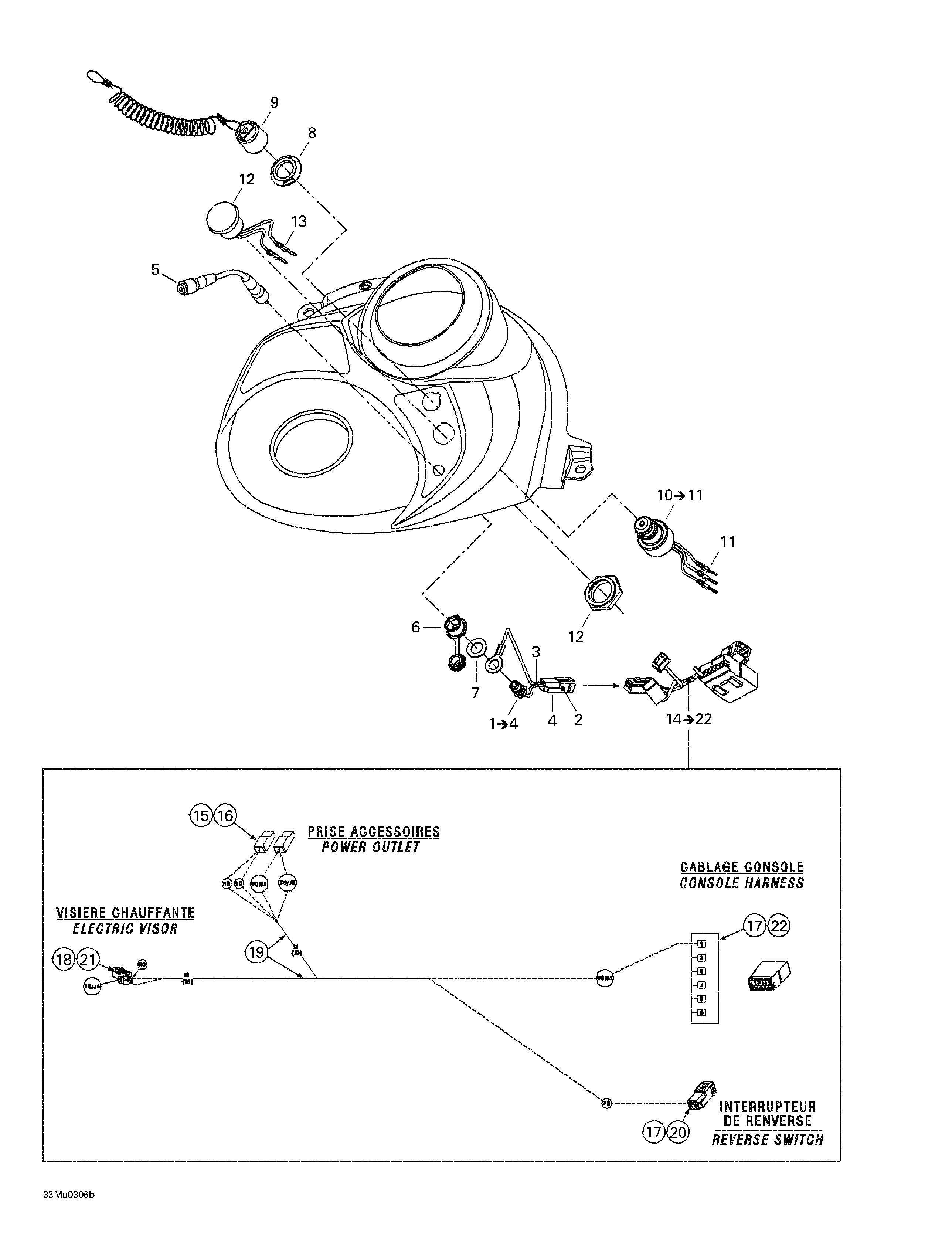

10- Console Harness для BRP Ski-Doo Legend V-1000 - 2003

  • №
    Артикул
    Название
  • 1
    515175964 Visor plug harness. Includes 1 - 4.
    Visor plug harness. Includes 1 - 4.
  • 2
    515175232 Male terminal
    Male terminal
  • 3
    293740005 Vinyl tape 3/4''
    Vinyl tape 3/4''
  • 4
    515175654 Male terminal housing (2 Circuits)
    Male terminal housing (2 Circuits)
  • 5
    515175971 Extension
    Extension
  • 6
    572103300 Cap
    Cap
  • 7
    503175800 Washer
    Washer
  • 8
    278000508 Nut
    Nut
  • 9
    515166900 DESS cap
    DESS cap
  • 10
    515175913 DESS switch. Includes 10 - 11.
    DESS switch. Includes 10 - 11.
  • 11
    515175232 Male terminal
    Male terminal
  • 12
    515175966 Starter switch
    Starter switch
  • 13
    515175232 Male terminal
    Male terminal
  • 14
    515175965 Console harness. Includes 14 - 22.
    Console harness. Includes 14 - 22.
  • 15
    409010600 Female terminal
    Female terminal
  • 16
    409010400 Female terminal housing (1 circuit)
    Female terminal housing (1 circuit)
  • 17
    515175232 Male terminal
    Male terminal
  • 18
    515175231 Female terminal
    Female terminal
  • 19
    293740005 Vinyl tape 3/4''
    Vinyl tape 3/4''
  • 20
    515175654 Male terminal housing (2 Circuit)
    Male terminal housing (2 Circuit)
  • 21e
    515175658 Female terminal housing (2 circuit)
    Female terminal housing (2 circuit)
  • 22
    515175662 Male terminal housing (6 Circuit)
    Male terminal housing (6 Circuit)
