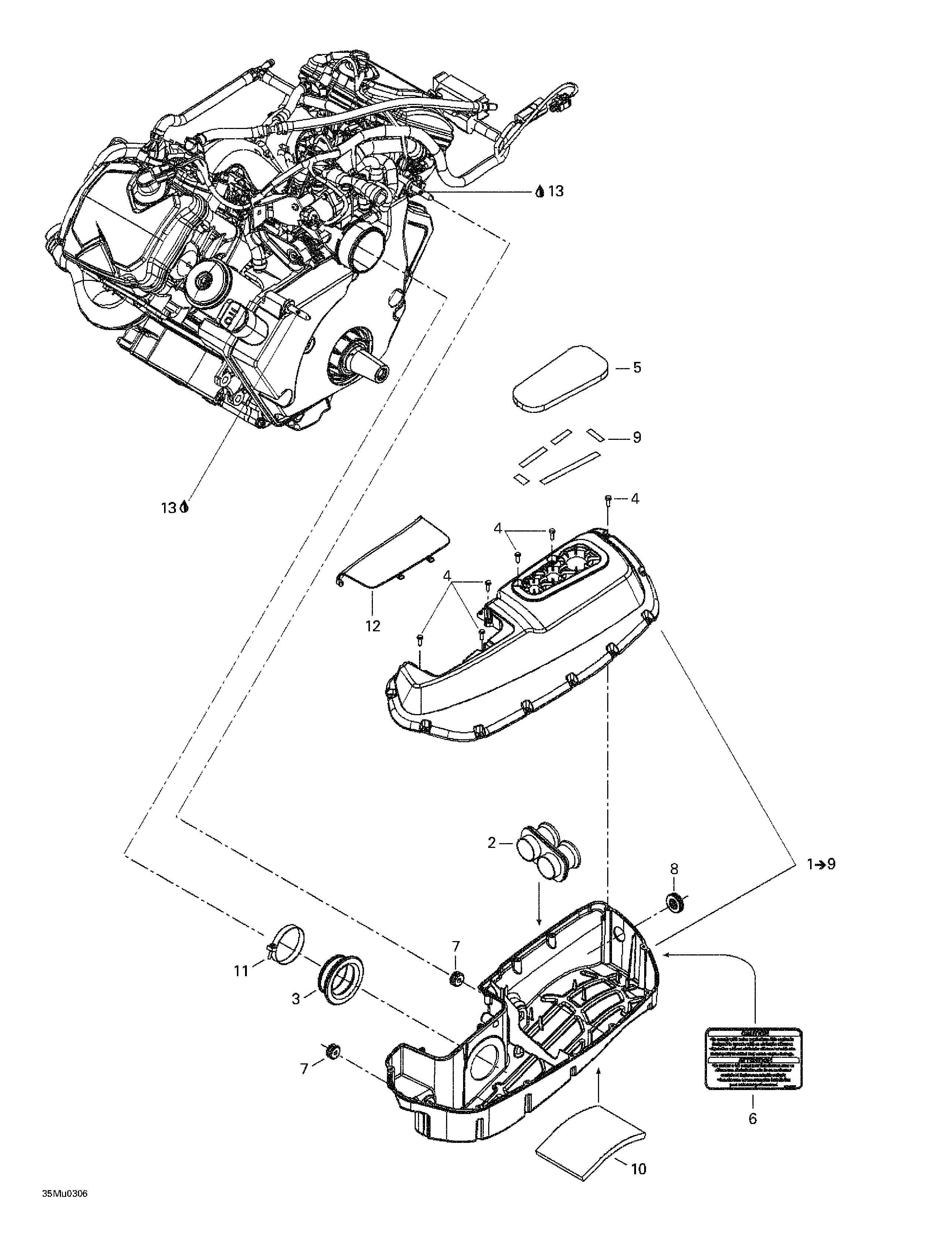

02- Air Intake System для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1508000315 Air intake ass'y. Includes 1 - 9.Air intake ass'y. Includes 1 - 9.
-
2273000107 Inlet tubeInlet tube
-
3508000254 Intake adaptatorIntake adaptator
-
4243141680 Hex. screw M4.8 x 1.8Hex. screw M4.8 x 1.8
-
5508000251 Air filterAir filter
-
6516001191 Caution label. (air intake)Caution label. (air intake)
-
7508000331 GrommetGrommet
-
8570065500 GrommetGrommet
-
9415110900 Velcro 1/2''Velcro 1/2''
-
10508000250 Inferior foamInferior foam
-
11508000334 ClampClamp
-
12508000253 DoorDoor
-
13293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
