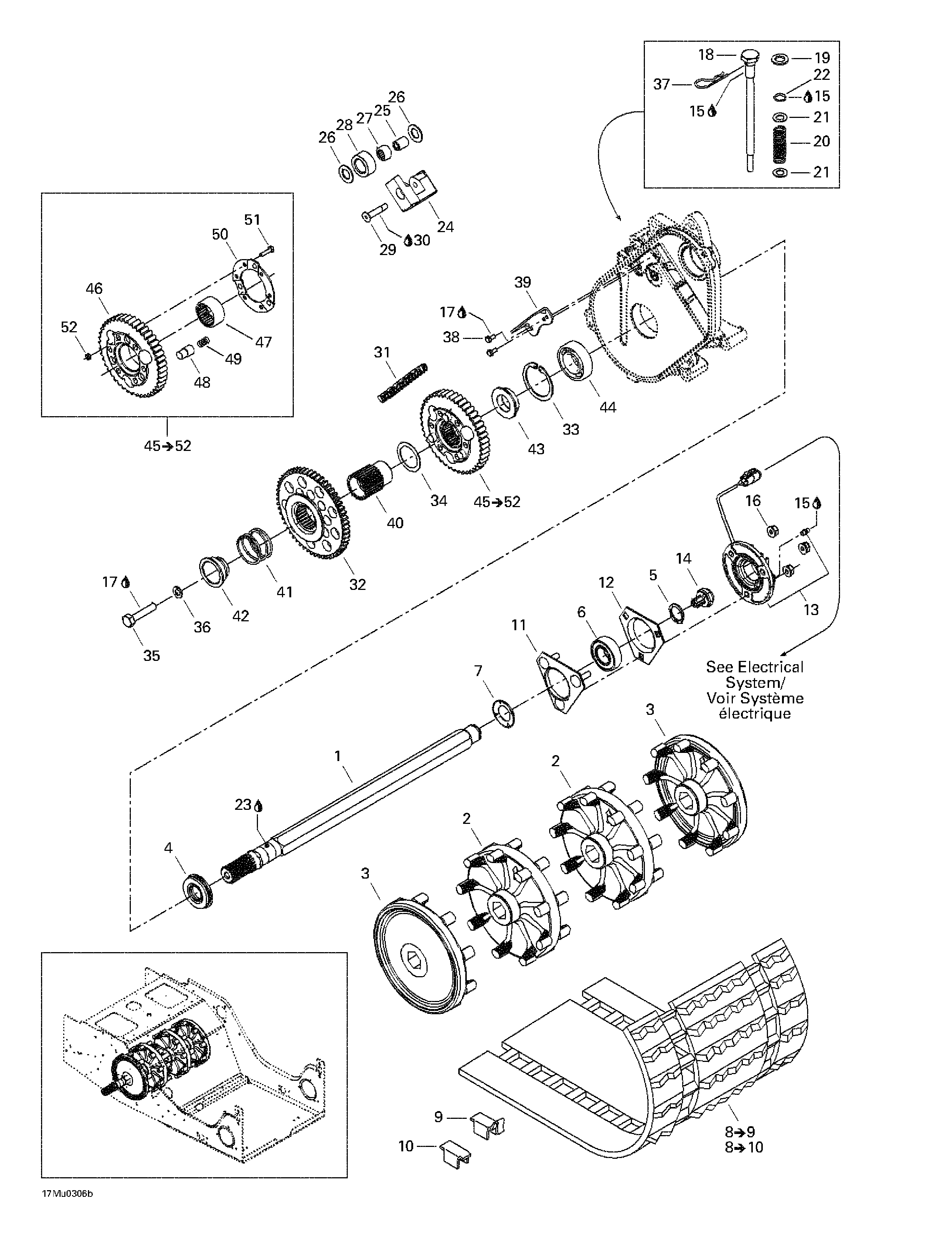

05- Drive System для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1501027400 Drive axleDrive axle
-
2504151781 Sprocket (9 teeth)Sprocket (9 teeth)
-
3504151782 Half sprocket (9 teeth)Half sprocket (9 teeth)
-
4504151918 Oil seal ass'yOil seal ass'y
-
5371910200 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 Bearing protectorBearing protector
-
8504152061 Track ass'y (15'' x 136'' x 1.00''). Includes 8 - 9. (Europe) Grand Touring V-1000.Track ass'y (15'' x 136'' x 1.00''). Includes 8 - 9. (Europe) Grand Touring V-1000.
-
9500003400 Guide cleat (Europe). Grand Touring V-1000.Guide cleat (Europe). Grand Touring V-1000.
-
8504151802 Track ass'y (15'' x 121'' x 0.88''). Includes 8 - 10. Legend V-1000.Track ass'y (15'' x 121'' x 0.88''). Includes 8 - 10. Legend V-1000.
-
9500003400 Guide cleat. Legend V-1000.Guide cleat. Legend V-1000.
-
10504151828 Cleat. Legend V-1000.Cleat. Legend V-1000.
-
8504151804 Track ass'y (15'' x 136'' x 0.88''). Includes 8 - 10. Grand Touring V-1000.Track ass'y (15'' x 136'' x 0.88''). Includes 8 - 10. Grand Touring V-1000.
-
9500003400 Guide cleat. Grand Touring V-1000.Guide cleat. Grand Touring V-1000.
-
10504151828 Cleat. Grand Touring V-1000.Cleat. Grand Touring V-1000.
-
11504151860 Bearing housingBearing housing
-
12501025000 FlangeFlange
-
13504152173 Flange (speedo)Flange (speedo)
-
14504152040 Magnetic adaptorMagnetic adaptor
-
15219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
16233281414 Elastic flanged nut M8Elastic flanged nut M8
-
17293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
18504151946 Screw adjustingScrew adjusting
-
19503189148 WasherWasher
-
20504151945 SpringSpring
-
21503125900 Hard washerHard washer
-
22504151954 O-ringO-ring
-
23219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
24504151940 Tension chaineTension chaine
-
25504080200 SpacerSpacer
-
26504080300 WasherWasher
-
27405403000 Needle bearingNeedle bearing
-
28414531300 RollerRoller
-
29732601144 ScrewScrew
-
30293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
31504151857 Chain (74 )Chain (74 )
-
32504096800 Sliding gear (56 teeth)Sliding gear (56 teeth)
-
33415064300 Circlip (interior)Circlip (interior)
-
34504094300 WasherWasher
-
35207005044 Hex. screw M10 x 50Hex. screw M10 x 50
-
36234100602 Lock spring washer M10Lock spring washer M10
-
37414575600 Hair PinHair Pin
-
38210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
39504152036 Slider chainSlider chain
-
40504097700 CouplingCoupling
-
41504096600 Release springRelease spring
-
42504151964 CapCap
-
43504076300 Retaining ringRetaining ring
-
44504152005 Ball bearingBall bearing
-
45581096800 Sprock assy (44 teeth). Includes 45 - 52.Sprock assy (44 teeth). Includes 45 - 52.
-
46504084400 Sprocket (44 teeth)Sprocket (44 teeth)
-
47414772600 Needle bearingNeedle bearing
-
48504076800 Drive pinDrive pin
-
49414772700 SpringSpring
-
50504076100 Retainer RingRetainer Ring
-
51207152044 Hex. screw M5 x 20Hex. screw M5 x 20
-
52233551416 Lock spring washer M5Lock spring washer M5
