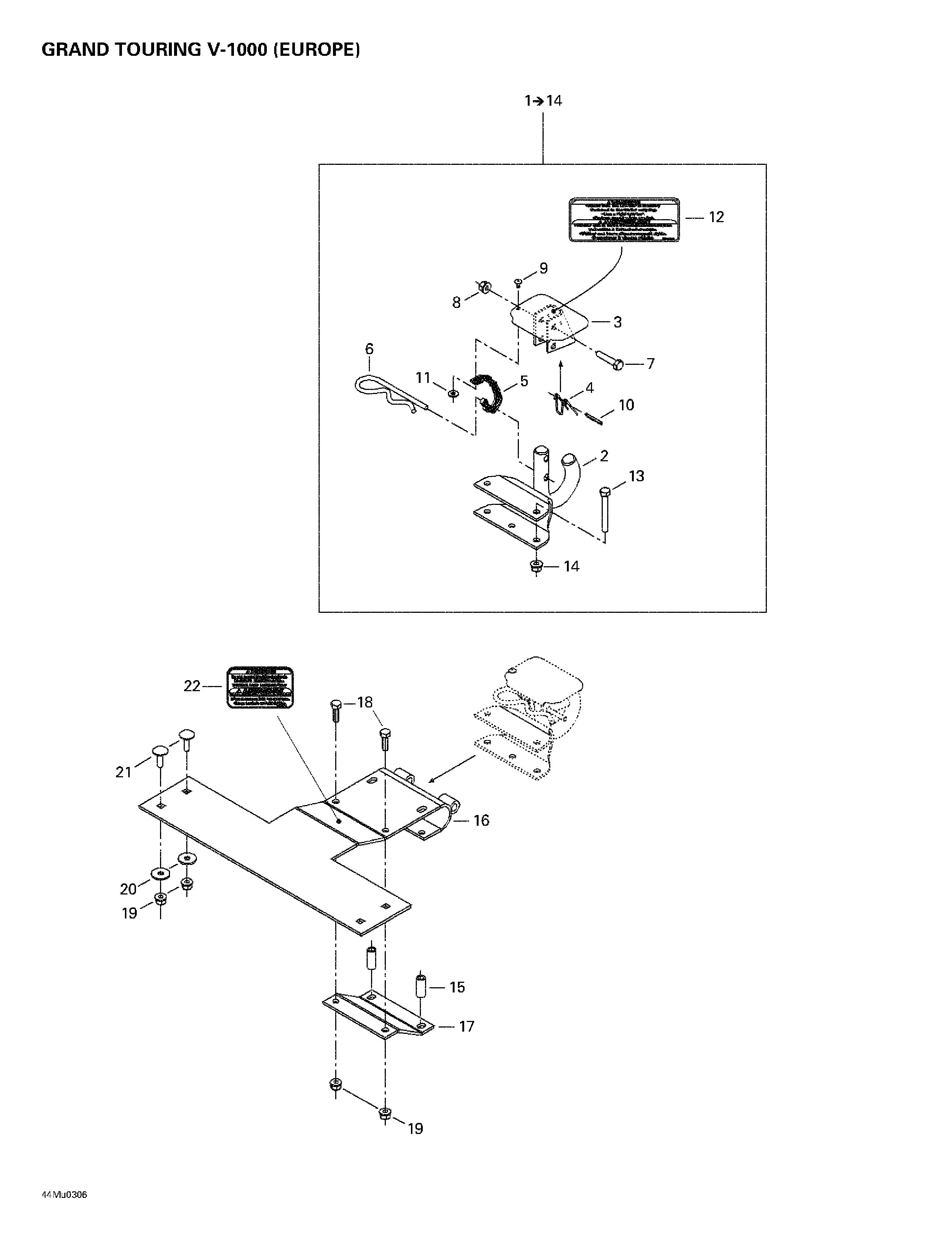

09- Hitch (Europe) для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1861778700 Hitch ass'y kit (Europe). Includes 1 - 14. Grand Touring V-1000.Hitch ass'y kit (Europe). Includes 1 - 14. Grand Touring V-1000.
-
2517199300 Hitch. Grand Touring V-1000.Hitch. Grand Touring V-1000.
-
3517152700 Hitch protector. Grand Touring V-1000.Hitch protector. Grand Touring V-1000.
-
4517152800 Spring. Grand Touring V-1000.Spring. Grand Touring V-1000.
-
6114045200 Hair pin. Grand Touring V-1000.Hair pin. Grand Touring V-1000.
-
7207063044 Hex. screw M6 x 30. Grand Touring V-1000.Hex. screw M6 x 30. Grand Touring V-1000.
-
8232561414 Elastic Stop Nut M6. Grand Touring V-1000.Elastic Stop Nut M6. Grand Touring V-1000.
-
9390409400 Pop rivet 5/32''. Grand Touring V-1000.Pop rivet 5/32''. Grand Touring V-1000.
-
10732804000 Spring pin. Grand Touring V-1000.Spring pin. Grand Touring V-1000.
-
12516001243 Security label (hitch). Grand Touring V-1000.Security label (hitch). Grand Touring V-1000.
-
13207065044 Hex. screw M6 x 50. Grand Touring V-1000.Hex. screw M6 x 50. Grand Touring V-1000.
-
14233261414 Elastic flanged nut M6. Grand Touring V-1000.Elastic flanged nut M6. Grand Touring V-1000.
-
15517191700 Spacer. Grand Touring V-1000.Spacer. Grand Touring V-1000.
-
16511000217 Fixation. Grand Touring V-1000.Fixation. Grand Touring V-1000.
-
17517223500 Reinforcement. Grand Touring V-1000.Reinforcement. Grand Touring V-1000.
-
18207162044 Hex. screw M6 x 20. Grand Touring V-1000.Hex. screw M6 x 20. Grand Touring V-1000.
-
19233261414 Elastic flanged nut M6. Grand Touring V-1000.Elastic flanged nut M6. Grand Touring V-1000.
-
20224061201 Flat washer. Grand Touring V-1000.Flat washer. Grand Touring V-1000.
-
21207762044 Carriage bolt M6 x 20. Grand Touring V-1000.Carriage bolt M6 x 20. Grand Touring V-1000.
-
22516001709 Security label (hitch). Grand Touring V-1000.Security label (hitch). Grand Touring V-1000.
