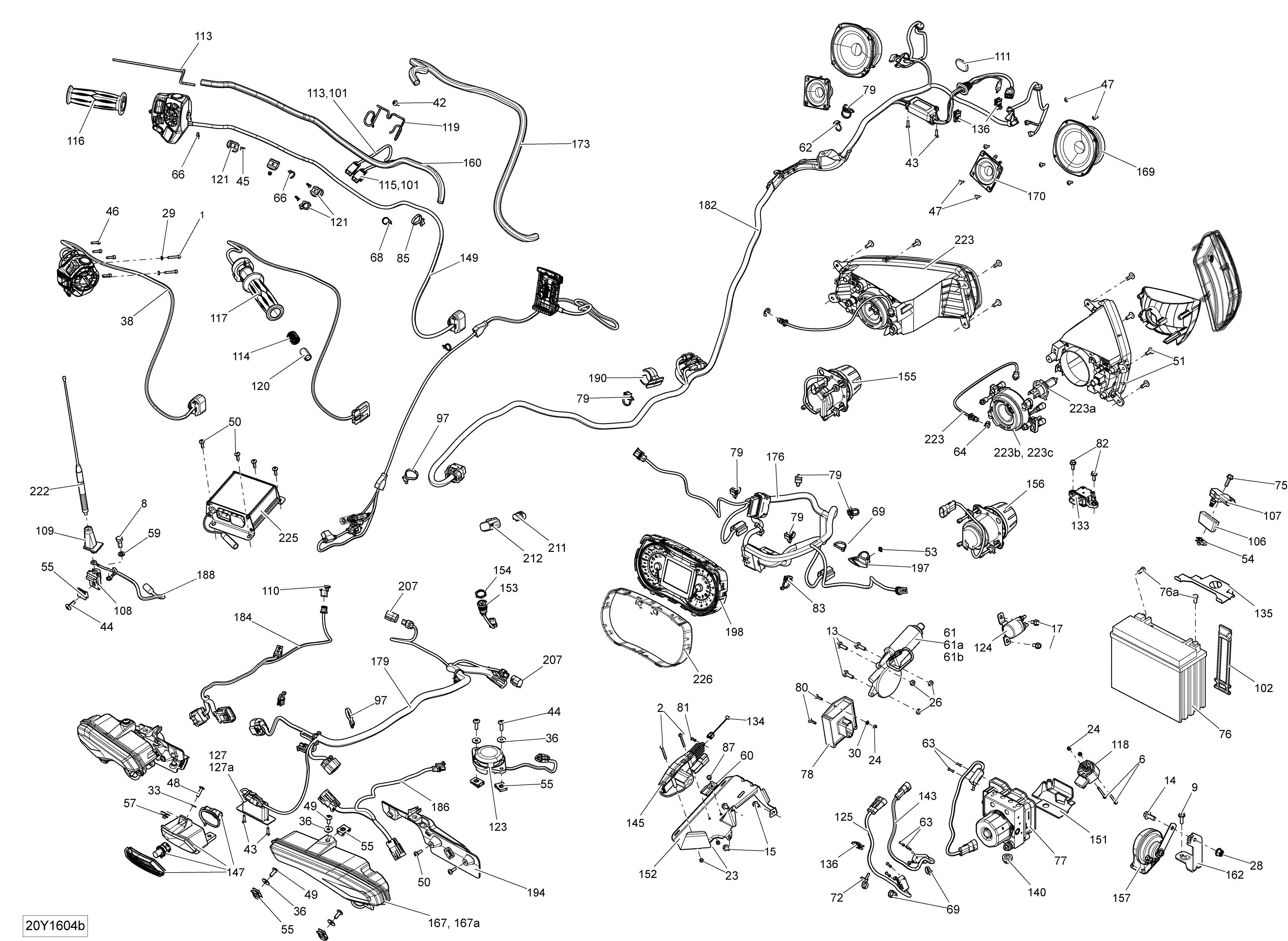

10- Electrical System - Package T-LTD - Headlamp And Accessories для BRP F3 - 2016
-
№АртикулНазвание
-
1205042594 Socket Screw, M4 X 25Socket Screw, M4 X 25
-
2205444056 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
6207144044 Hex. Cap ScrewHex. Cap Screw
-
8207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
9207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
13207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14207682034 Hex. Flanged ScrewHex. Flanged Screw
-
15210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
17210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
23232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
24232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
26232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
28233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
29234040600 Flat Washer 4 mmFlat Washer 4 mm
-
30234041480 Flat Washer 4 mmFlat Washer 4 mm
-
33234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
36234062670 Flat Washer, StainlessFlat Washer, Stainless
-
38710004583 Housing-Switch RHHousing-Switch RH
-
42250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
43250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
44250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
45250000453 Torx Cutting Screw, M4 X 10Torx Cutting Screw, M4 X 10
-
46250000494 Socket Screw, M4 X 16 Scotch GripSocket Screw, M4 X 16 Scotch Grip
-
47250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
48250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
49250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
50250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
51250000721 Torx ScrewTorx Screw
-
53250100034 Push NutPush Nut
-
54250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
55250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
57250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
59250200111 WasherWasher
-
60270000141 ClipClip
-
61278003071 Control Gear Motor. Includes 61 To 61bControl Gear Motor. Includes 61 To 61b
-
61a278000231 Insulation SheathInsulation Sheath
-
61b278000230 Male TerminalMale Terminal
-
62293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
63293150150 Pop RivetPop Rivet
-
64293370013 E-CirclipE-Circlip
-
66293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
69293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
72293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
75207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
76219800305 Battery, 12 Volts, 21 Amperes. Brazil, Includes 76 To 76aBattery, 12 Volts, 21 Amperes. Brazil, Includes 76 To 76a
-
76410922962 Battery, 12 Volts, 21 Amperes. EuropeBattery, 12 Volts, 21 Amperes. Europe
-
76410922962 Battery, 12 Volts, 21 Amperes. AustraliaBattery, 12 Volts, 21 Amperes. Australia
-
76410922962 Battery, 12 Volts, 21 Amperes. North AmericaBattery, 12 Volts, 21 Amperes. North America
-
76410922962 Battery, 12 Volts, 21 Amperes. JapanBattery, 12 Volts, 21 Amperes. Japan
-
76a250000282 Battery Bolt KitBattery Bolt Kit
-
77219800375 VCM Dry ProgVCM Dry Prog
-
78710004883 PBM Module AssemblyPBM Module Assembly
-
79293750058 Locking Tie RapLocking Tie Rap
-
80250000750 Torx Screw M4 X 16Torx Screw M4 X 16
-
81390403000 Pop Rivet 5/32Pop Rivet 5/32
-
82210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
83293750063 Clip Tie-RapClip Tie-Rap
-
85293750074 Tie RapTie Rap
-
87390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
97515175220 Tie RapTie Rap
-
101515175283 Housing SupportHousing Support
-
102520000528 LatchLatch
-
106707000586 FilterFilter
-
107707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
108708301797 SupportSupport
-
109708302051 Antenna CapAntenna Cap
-
110708400046 CapCap
-
111708400166 CapCap
-
113709400625 Heating Handle GripHeating Handle Grip
-
114709400773 SpringSpring
-
115709400929 Throttle Heating GripThrottle Heating Grip
-
116709401054 Handle GripHandle Grip
-
117709401055 Throttle Handle GripThrottle Handle Grip
-
118219800354 Steering Position SensorSteering Position Sensor
-
119709401619 Wire GuideWire Guide
-
120709401801 BushingBushing
-
121709401804 Wire GuideWire Guide
-
123710001346 Passenger Detection SwitchPassenger Detection Switch
-
124710001364 Starter RelayStarter Relay
-
125710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
127710001451 License LightLicense Light
-
127a219800128 Bulb. Includes 127 To 127aBulb. Includes 127 To 127a
-
133710002677 Yaw Rate SensorYaw Rate Sensor
-
134710002889 Reverse CableReverse Cable
-
135710002893 Battery HolderBattery Holder
-
136710002899 Clip Tie-RapClip Tie-Rap
-
140710003279 Damper ShockDamper Shock
-
143710003412 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
145710003776 ActuatorActuator
-
147710003879 Reverse LightReverse Light
-
149710003937 LH Housing Switch. Engine SM6LH Housing Switch. Engine SM6
-
149710004731 Housing Switch. Engine SE6Housing Switch. Engine SE6
-
151710003996 VCM Harness ProtectorVCM Harness Protector
-
152710004093 Reverse Actuator SupportReverse Actuator Support
-
153710004598 SwitchSwitch
-
154710004108 NutNut
-
155710004150 LH Low Beam. EuropeLH Low Beam. Europe
-
155710004150 LH Low Beam. BrazilLH Low Beam. Brazil
-
155710004152 LH Low Beam. AustraliaLH Low Beam. Australia
-
155710004152 LH Low Beam. JapanLH Low Beam. Japan
-
156710004151 RH Low Beam. EuropeRH Low Beam. Europe
-
156710004151 RH Low Beam. BrazilRH Low Beam. Brazil
-
156710004153 RH Low Beam. AustraliaRH Low Beam. Australia
-
156710004153 RH Low Beam. JapanRH Low Beam. Japan
-
157710004229 HornHorn
-
160710004231 Braided SleeveBraided Sleeve
-
162710004412 Black Horn SupportBlack Horn Support
-
167710004399 LH Tail Light. Includes 167 To 167aLH Tail Light. Includes 167 To 167a
-
167710004434 RH Tail Light. Includes 167 To 167aRH Tail Light. Includes 167 To 167a
-
167a219800039 Bulb 12V/10W, AmberBulb 12V/10W, Amber
-
169710004437 Woofer SpeakerWoofer Speaker
-
170710004438 Mid SpeakerMid Speaker
-
173710004489 Braided SleeveBraided Sleeve
-
176710004603 Harness, Console. North AmericaHarness, Console. North America
-
176710004604 Harness, Console. Except North AmericaHarness, Console. Except North America
-
179710004605 Harness, CargoHarness, Cargo
-
182710004607 Harness, RadioHarness, Radio
-
184710004608 LH Cargo HarnessLH Cargo Harness
-
186710004609 RH Cargo HarnessRH Cargo Harness
-
188710004610 Antenna Cable Ass'y.Antenna Cable Ass'y.
-
194710004643 LH Connector SupportLH Connector Support
-
194710004644 RH Connector SupportRH Connector Support
-
197
-
198710004723 Speed-ProgSpeed-Prog
-
207710004900 Connector PlugConnector Plug
-
211710004906 Connector PlugConnector Plug
-
212710004907 Connector PlugConnector Plug
-
222710005084 Short AntennaShort Antenna
-
223710004701 LH Headlamp. Includes 223 To 223cLH Headlamp. Includes 223 To 223c
-
223710004702 RH Headlamp. Includes 223 To 223cRH Headlamp. Includes 223 To 223c
-
223A515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
223b219800280 Rubber Cap ProtectorRubber Cap Protector
-
223c219800281 SpringSpring
-
225710004792 Radio AssemblyRadio Assembly
-
226415129349 LensLens
