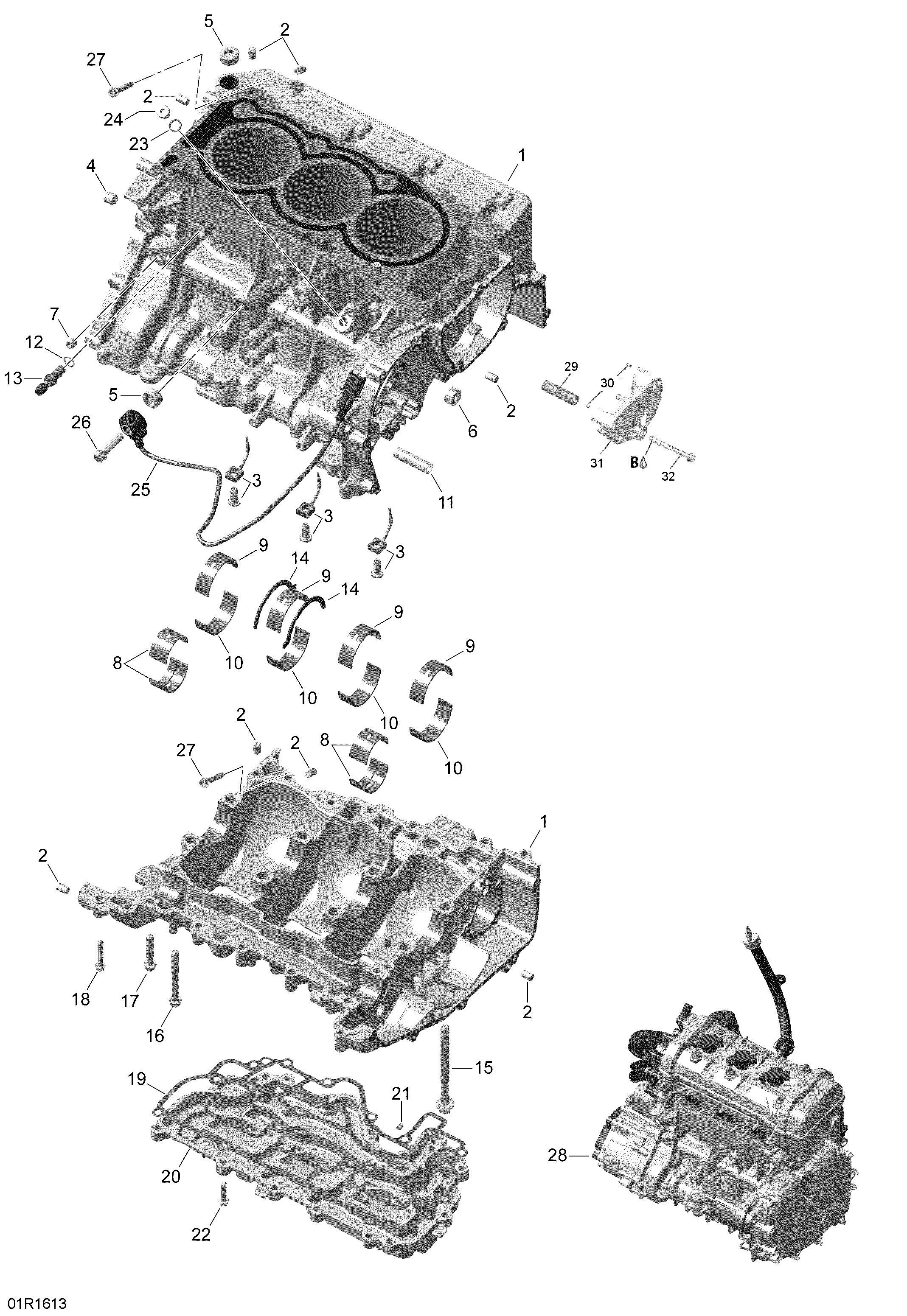

01- Crankcase для BRP F3 - 2016
-
№АртикулНазвание
-
1420686581 Crankcase Ass'y. Includes 1 to 13Crankcase Ass'y. Includes 1 to 13
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420656972 Oil Spraying JetOil Spraying Jet
-
4420840657 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
5420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
6420441050 Plug Screw M18 X 1.5Plug Screw M18 X 1.5
-
7420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
8420933858 Plain BearingPlain Bearing
-
9420233848 Plain BearingPlain Bearing
-
10420233846 Plain BearingPlain Bearing
-
11420647280 SleeveSleeve
-
12420230150 Oil SealOil Seal
-
13420441630 Bleeder Screw M10 X 1Bleeder Screw M10 X 1
-
14420933475 Half-RingHalf-Ring
-
15420940945 Flanged Torx Screw M9 X 113Flanged Torx Screw M9 X 113
-
16420441085 Socket Head Screw M8 X 70Socket Head Screw M8 X 70
-
17420440485 Allen Screw M8 X 40Allen Screw M8 X 40
-
18420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
19420250610 GasketGasket
-
20420611741 Oil SumpOil Sump
-
21420941614 Plug Screw M8 x 1Plug Screw M8 x 1
-
22420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
23420230150 Oil SealOil Seal
-
24420641733 Plug Screw M10 X 1Plug Screw M10 X 1
-
25420664031 Noise SensorNoise Sensor
-
26420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
27420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
28361403116 Engine, 1330 ACE - SM6Engine, 1330 ACE - SM6
-
28361403216 Engine, 1330 ACE - SE6Engine, 1330 ACE - SE6
