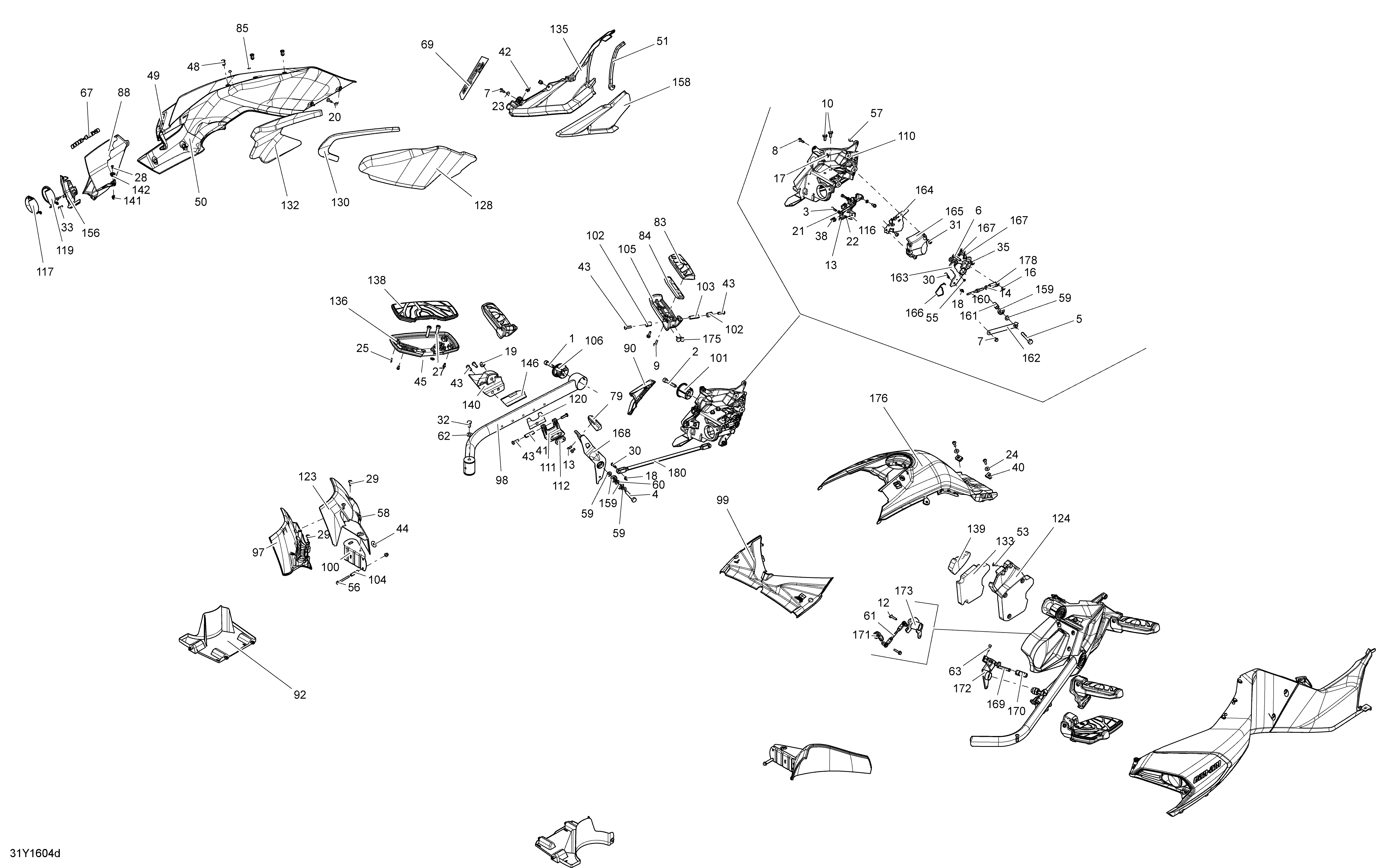

09- Body And Accessories - General для BRP F3 - 2016
-
№АртикулНазвание
-
1244003560 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
2205505560 Socket Head ScrewSocket Head Screw
-
3205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
4207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
5207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
6207283544 Hexagonal Head Cap Screw M8 X 35Hexagonal Head Cap Screw M8 X 35
-
7293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
9207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
10207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
12207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
13210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
14232081414 Hex. Nut M8Hex. Nut M8
-
16232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
18233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
20234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
21234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
22234061670 Flat Washer 6 mmFlat Washer 6 mm
-
23705010890 SpacerSpacer
-
24234062670 Flat Washer, StainlessFlat Washer, Stainless
-
25250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
26250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
27250000456 Thin Socket Screw M10 X 40, Scotch GripThin Socket Screw M10 X 40, Scotch Grip
-
28250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
29250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
30250000714 Flanged Screw M6 X 26Flanged Screw M6 X 26
-
31250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
32250000719 Hex. Cap Screw Full ThreadHex. Cap Screw Full Thread
-
33250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
35250000725 Screw M4 X 16Screw M4 X 16
-
38250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
38250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
41250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
42250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
43250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
44250200029 Washer M6Washer M6
-
45250200105 Stainless Flat Washer, 10 mmStainless Flat Washer, 10 mm
-
48293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
49293250143 SealSeal
-
50705010349 Black Steel RH FairingBlack Steel RH Fairing
-
50705010348 Black Steel LH FairingBlack Steel LH Fairing
-
50705010839 Black Monolith RH FairingBlack Monolith RH Fairing
-
50705010847 Black Monolith LH FairingBlack Monolith LH Fairing
-
50705010353 White RH FairingWhite RH Fairing
-
50705010352 White LH FairingWhite LH Fairing
-
50705010842 Red Intense RH FairingRed Intense RH Fairing
-
50705010850 Red Intense LH FairingRed Intense LH Fairing
-
50705010357 Red Dragon RH FairingRed Dragon RH Fairing
-
50705010356 Red Dragon LH FairingRed Dragon LH Fairing
-
50705010355 Magnesium RH FairingMagnesium RH Fairing
-
50705010354 Magnesium LH FairingMagnesium LH Fairing
-
51293250380 TrimTrim
-
53293730024 Dart, FastexDart, Fastex
-
55250100178 Push NutPush Nut
-
56250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
57293830005 Rubber BumperRubber Bumper
-
58414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
59503183800 WasherWasher
-
60503192496 WasherWasher
-
61504152819 Linkage RodLinkage Rod
-
62506152582 WasherWasher
-
63514054626 Socket Head Screw M6 X 22, Scotch GripSocket Head Screw M6 X 22, Scotch Grip
-
67704905126 Logo Can-Am BlackLogo Can-Am Black
-
67704904675 Brillant Chrome CAN-AM LogoBrillant Chrome CAN-AM Logo
-
69704904667 Spyder F3 Decal Vegas White. Model White Package STDSpyder F3 Decal Vegas White. Model White Package STD
-
69704904821 Spyder F3S Decal Vegas White. Model White Package SSpyder F3S Decal Vegas White. Model White Package S
-
69704904822 Spyder F3 Decal Steel Black. Model Steel black Package STDSpyder F3 Decal Steel Black. Model Steel black Package STD
-
69704904823 Spyder F3S Decal Steel Black. Model Steel black Package SSpyder F3S Decal Steel Black. Model Steel black Package S
-
69704905202 F3-S Spyder Decal Monolith Black. Model Monolith black Package SF3-S Spyder Decal Monolith Black. Model Monolith black Package S
-
69704904824 Spyder F3S Decal Dragon Red. Model Dragon Red Package SSpyder F3S Decal Dragon Red. Model Dragon Red Package S
-
69704904825 Spyder F3S Decal Magnesium. Model Magnesium Package SSpyder F3S Decal Magnesium. Model Magnesium Package S
-
79705004933 Rubber PadRubber Pad
-
83705006297 Rubber PadRubber Pad
-
84705006388 Vibration DampenerVibration Dampener
-
85705006634 Polyurethane StopperPolyurethane Stopper
-
88705010343 Hyper Silver RH Air DuctHyper Silver RH Air Duct
-
88705010342 Hyper Silver LH Air DuctHyper Silver LH Air Duct
-
88705010341 Full Moon RH Air DuctFull Moon RH Air Duct
-
88705010340 Full Moon LH Air DuctFull Moon LH Air Duct
-
88705010929 Red RH Air DuctRed RH Air Duct
-
88705010932 Red LH Air DuctRed LH Air Duct
-
88705010930 White RH Air DuctWhite RH Air Duct
-
88705010933 White LH Air DuctWhite LH Air Duct
-
88705010934 Black Steel LH Air DuctBlack Steel LH Air Duct
-
88705010931 Black Steel RH Air DuctBlack Steel RH Air Duct
-
88705010685 Black Carbon RH Air DuctBlack Carbon RH Air Duct
-
88705010684 Black Carbon LH Air DuctBlack Carbon LH Air Duct
-
90705007781 RH Engine FairingRH Engine Fairing
-
90705007780 LH Engine FairingLH Engine Fairing
-
92705007786 RH Front Skid PlateRH Front Skid Plate
-
92705007785 LH Front Skid PlateLH Front Skid Plate
-
97705007795 RH DeflectorRH Deflector
-
97705007794 LH DeflectorLH Deflector
-
98705008258 Black Deep RH Footrest SupportBlack Deep RH Footrest Support
-
98705008256 Black Deep LH Footrest SupportBlack Deep LH Footrest Support
-
98705008954 Black Carbon RH Footrest SupportBlack Carbon RH Footrest Support
-
98705008955 Black Carbon LH Footrest SupportBlack Carbon LH Footrest Support
-
98705008956 Red RH Footrest SupportRed RH Footrest Support
-
98705008957 Red LH Footrest SupportRed LH Footrest Support
-
99705008058 Service Center FairingService Center Fairing
-
100705008950 Tube SupportTube Support
-
101705008263 Pivot Cap. Package STD, S, TPivot Cap. Package STD, S, T
-
101705010202 Plug. Package LTD, SpecialPlug. Package LTD, Special
-
102705008166 Spacer BushingSpacer Bushing
-
103705008167 Pivot PinPivot Pin
-
104705008219 SpacerSpacer
-
105705008160 RH Carbon Black FootpegRH Carbon Black Footpeg
-
105705008663 LH Carbon Black FootpegLH Carbon Black Footpeg
-
106705008161 Plug. Package STD, S, TPlug. Package STD, S, T
-
106705010203 Plug. Package LTD, SpecialPlug. Package LTD, Special
-
106705008161 Pivot CapPivot Cap
-
110705008275 Silver RH Rear Footrest SupportSilver RH Rear Footrest Support
-
110705008274 Silver LH Rear Footrest SupportSilver LH Rear Footrest Support
-
110705009402 Black Carbon RH Rear Footrest SupportBlack Carbon RH Rear Footrest Support
-
110705009401 Black Carbon LH Rear Footrest SupportBlack Carbon LH Rear Footrest Support
-
110705008277 Chrome RH Rear Footrest SupportChrome RH Rear Footrest Support
-
110705008276 Chrome RH Rear Footrest SupportChrome RH Rear Footrest Support
-
111705008158 Carbon Black RH Slider OutsideCarbon Black RH Slider Outside
-
111705009371 Carbon Black RH Slider InsideCarbon Black RH Slider Inside
-
111705007798 Carbon Black LH Slider OutsideCarbon Black LH Slider Outside
-
111705009372 Carbon Black LH Slider InsideCarbon Black LH Slider Inside
-
112705008553 Back FlangeBack Flange
-
116705008962 RH Fairing SupportRH Fairing Support
-
116705008961 LH Fairing SupportLH Fairing Support
-
117705008963 RH Cap LigthRH Cap Ligth
-
117705007787 LH Cap LigthLH Cap Ligth
-
119705008996 RH Heat ShieldRH Heat Shield
-
119705008995 LH Heat ShieldLH Heat Shield
-
120705009023 RH Frame Protector InsideRH Frame Protector Inside
-
120705009025 LH Frame Protector InsideLH Frame Protector Inside
-
123705009029 RH ShellRH Shell
-
123705009027 LH ShellLH Shell
-
124705009144 LH Acoustic FairingLH Acoustic Fairing
-
128705009155 Acoustic FoamAcoustic Foam
-
128705009156 Acoustic FoamAcoustic Foam
-
130705009157 Acoustic Foam LHAcoustic Foam LH
-
130705009158 Acoustic Foam RHAcoustic Foam RH
-
132705009159 Acoustic Foam LHAcoustic Foam LH
-
132705009160 Acoustic Foam RHAcoustic Foam RH
-
133705009162 Acoustic FoamAcoustic Foam
-
135705009245 White RH Low Fairing. Model with Package STD / S / SPEWhite RH Low Fairing. Model with Package STD / S / SPE
-
135705009925 White RH Low Fairing. Model with Package T / LTDWhite RH Low Fairing. Model with Package T / LTD
-
135705009242 White LH Low Fairing. Model with Package STD / S / SPEWhite LH Low Fairing. Model with Package STD / S / SPE
-
135705009924 White LH Low Fairing. Model with Package T / LTDWhite LH Low Fairing. Model with Package T / LTD
-
135705008255 Black Steel RH Low Fairing. Model with Package STD / S / SPEBlack Steel RH Low Fairing. Model with Package STD / S / SPE
-
135705009216 Black Steel RH Low Fairing. Model with Package T / LTDBlack Steel RH Low Fairing. Model with Package T / LTD
-
135705008254 Black Steel LH Low Fairing. Model with Package STD / S / SPEBlack Steel LH Low Fairing. Model with Package STD / S / SPE
-
135705009215 Black Steel LH Low Fairing. Model with Package T / LTDBlack Steel LH Low Fairing. Model with Package T / LTD
-
135705009919 Black Monolith RH Low Fairing. Model with Package STD / S / SPEBlack Monolith RH Low Fairing. Model with Package STD / S / SPE
-
135705010643 Black Monolith RH Low Fairing. Model with Package T / LTDBlack Monolith RH Low Fairing. Model with Package T / LTD
-
135705009918 Black Monolith LH Low Fairing. Model with Package STD / S / SPEBlack Monolith LH Low Fairing. Model with Package STD / S / SPE
-
135705010644 Black Monolith LH Low Fairing. Model with Package T / LTDBlack Monolith LH Low Fairing. Model with Package T / LTD
-
135705009266 Red Dragon RH Low Fairing. Model with Package STD / S / SPERed Dragon RH Low Fairing. Model with Package STD / S / SPE
-
135705009929 Red Dragon RH Low Fairing. Model with Package T / LTDRed Dragon RH Low Fairing. Model with Package T / LTD
-
135705009265 Red Dragon LH Low Fairing. Model with Package STD / S / SPERed Dragon LH Low Fairing. Model with Package STD / S / SPE
-
135705009928 Red Dragon LH Low Fairing. Model with Package T / LTDRed Dragon LH Low Fairing. Model with Package T / LTD
-
135705009931 Red Intense RH Low Fairing. Model with Package T / LTDRed Intense RH Low Fairing. Model with Package T / LTD
-
135705009930 Red Intense LH Low Fairing. Model with Package T / LTDRed Intense LH Low Fairing. Model with Package T / LTD
-
135705009927 Magnesium RH Low Fairing. Model with Package T / LTDMagnesium RH Low Fairing. Model with Package T / LTD
-
135705009244 Magnesium LH Low Fairing. Model with Package STD / S / SPEMagnesium LH Low Fairing. Model with Package STD / S / SPE
-
135705009926 Magnesium LH Low Fairing. Model with Package T / LTDMagnesium LH Low Fairing. Model with Package T / LTD
-
135705009247 Magnesium RH Low Fairing. Model with Package STD / S / SPEMagnesium RH Low Fairing. Model with Package STD / S / SPE
-
136705009455 Foot Board RhFoot Board Rh
-
136705009454 Foot Board LhFoot Board Lh
-
138705009230 Rh PadRh Pad
-
138705009229 Lh PadLh Pad
-
139705009344 Acoustic FoamAcoustic Foam
-
140705009463 SliderSlider
-
141705009430 Anchor PinAnchor Pin
-
142705009431 Shouldered BushingShouldered Bushing
-
146705009448 RH Frame Protector OutsideRH Frame Protector Outside
-
146705009449 LH Frame Protector OutsideLH Frame Protector Outside
-
146705009452 Lh Slider ProtectorLh Slider Protector
-
146705009453 Rh Slider ProtectorRh Slider Protector
-
156705010138 RH Vent GridRH Vent Grid
-
156
-
158705010474 Acoustic Foam Rh. Model with Package T / LTDAcoustic Foam Rh. Model with Package T / LTD
-
158705010473 Acoustic Foam Lh. Model with Package T / LTDAcoustic Foam Lh. Model with Package T / LTD
-
158705009153 Acoustic Foam LH. Model with Package STD / S / SPEAcoustic Foam LH. Model with Package STD / S / SPE
-
158705009154 Acoustic Foam RH. Model with Package STD / S / SPEAcoustic Foam RH. Model with Package STD / S / SPE
-
159705600458 BearingBearing
-
160705600468 Piston RodPiston Rod
-
161705600541 BushingBushing
-
161a293300191 O-RingO-Ring
-
162705601229 Locking TabLocking Tab
-
163705601308 Master Cylinder RockerMaster Cylinder Rocker
-
164705601342 Light Switch BracketLight Switch Bracket
-
165705601343 Switch DeflectorSwitch Deflector
-
166705601350 Quick-Attach Bracket RHQuick-Attach Bracket RH
-
166707001753 Quick-Attach Bracket LHQuick-Attach Bracket LH
-
167705601375 Brake Master Cylinder StopperBrake Master Cylinder Stopper
-
168705601419 Brake PedalBrake Pedal
-
169707000455 Adjustment RodAdjustment Rod
-
170707000456 End Clutch PedalEnd Clutch Pedal
-
171707000926 Shifter ArmShifter Arm
-
172707001699 Gear Shift LeverGear Shift Lever
-
173707001573 Shifter Lever RockerShifter Lever Rocker
-
175708000759 Rubber StopperRubber Stopper
-
176705009235 White Vegas Fuel Tank CoverWhite Vegas Fuel Tank Cover
-
176705009902 Intense Red Tank CoverIntense Red Tank Cover
-
176705008246 Steel Black Fuel Tank CoverSteel Black Fuel Tank Cover
-
178705601506 Rod EndRod End
-
180219400565 Shifter Linkage Kit (393.4 mm)Shifter Linkage Kit (393.4 mm)
-
180219400564 Shifter Linkage Kit (344.5 mm)Shifter Linkage Kit (344.5 mm)
-
180219400627 Shifter Linkage Kit (295.9 mm)Shifter Linkage Kit (295.9 mm)
-
180219400562 Shifter Linkage Kit (248.0 mm)Shifter Linkage Kit (248.0 mm)
-
180219400560 Shifter Linkage Kit (201.0 mm)Shifter Linkage Kit (201.0 mm)
-
180219400571 Brake Linkage Kit (505.1 mm)Brake Linkage Kit (505.1 mm)
-
180219400566 Brake Linkage Kit (458.3 mm)Brake Linkage Kit (458.3 mm)
-
180219400628 Brake Linkage Kit (410.7 mm)Brake Linkage Kit (410.7 mm)
-
180219400563 Brake Linkage Kit (359.3 mm)Brake Linkage Kit (359.3 mm)
-
180219400561 Brake Linkage Kit (313.7 mm)Brake Linkage Kit (313.7 mm)
Все узлы модели:
- 00- Model Numbers
- 01- Clutch Cover - SE6
- 01- Clutch Cover - SM6
- 01- Cooling System
- 01- Crankcase
- 01- Crankshaft, Pistons and Balance Shaft
- 01- Cylinder Head
- 01- Engine - SE6
- 01- Engine - SM6
- 01- Engine Cooling
- 01- Engine Lubrication
- 01- Exhaust System - Package Standard-S-Special
- 01- Exhaust System - Package Standard-S-Special - Australia
- 01- Exhaust System - Package T-LTD
- 01- Exhaust System - Package T-LTD - Austalia
- 01- Gearbox Housing - SE6
- 01- Gearbox Housing - SM6
- 01- Valve Cover
- 01- Valve Train
- 02- Air Intake
- 02- Air Intake Manifold and Throttle Body
- 02- Fuel System
- 03- Alternator
- 03- Electric Starter
- 05- Clutch - SE6
- 05- Clutch - SM6
- 05- Gear Box
- 05- Shifting System - SE6
- 05- Shifting System - SM6
- 06- Hydraulic Brake
- 07- Drive System, Front - Except Package LTD
- 07- Drive System, Front - Package LTD
- 07- Steering - SE6
- 07- Steering - SM6
- 07- Suspension, Front
- 08- Drive System, Rear
- 08- Suspension, Rear - Except Package T-LTD
- 08- Suspension, Rear - Package T-LTD
- 09- Body And Accessories - Console
- 09- Body And Accessories - Front Fender
- 09- Body And Accessories - Front Storage - Package S-T-LTD
- 09- Body And Accessories - Front Storage - Package Special
- 09- Body And Accessories - Front Storage - Package Standard
- • 09- Body And Accessories - General
- 09- Body And Accessories - Luggages - Package LTD-LTD Special - Japan
- 09- Body And Accessories - Luggages - Package T-LTD-LTD Special - Europe_Australia
- 09- Body And Accessories - Luggages - Package T-LTD-LTD Special - North America
- 09- Decals
- 09- Frame - Except Package T, Except LTD
- 09- Frame - Package T, LTD
- 09- Seat
- 09- Utilities
- 10- Electrical Harness - Cargo
- 10- Electrical Harness - Console - Package Standard-S-Special - Except North America
- 10- Electrical Harness - Console - Package Standard-S-Special - North America
- 10- Electrical Harness - Console - Package T- Except North America
- 10- Electrical Harness - Console - Package T- North America
- 10- Electrical Harness - Frame SE6 - Package Standard-S-Special
- 10- Electrical Harness - Frame SE6 - Package T-LTD
- 10- Electrical Harness - Frame SM6 - Package Standard-S
- 10- Electrical Harness - Frame SM6 - Package T-LTD
- 10- Electrical Harness - Radio
- 10- Electrical System - Package Standard-S-Special - Accessories
- 10- Electrical System - Package Standard-S-Special - General
- 10- Electrical System - Package Standard-S-Special - Headlamp And Accessories
- 10- Electrical System - Package T-LTD - General
- 10- Electrical System - Package T-LTD - Headlamp And Accessories
- 10- Engine Harness and Electronic Module - SE6
- 10- Engine Harness and Electronic Module - SM6
