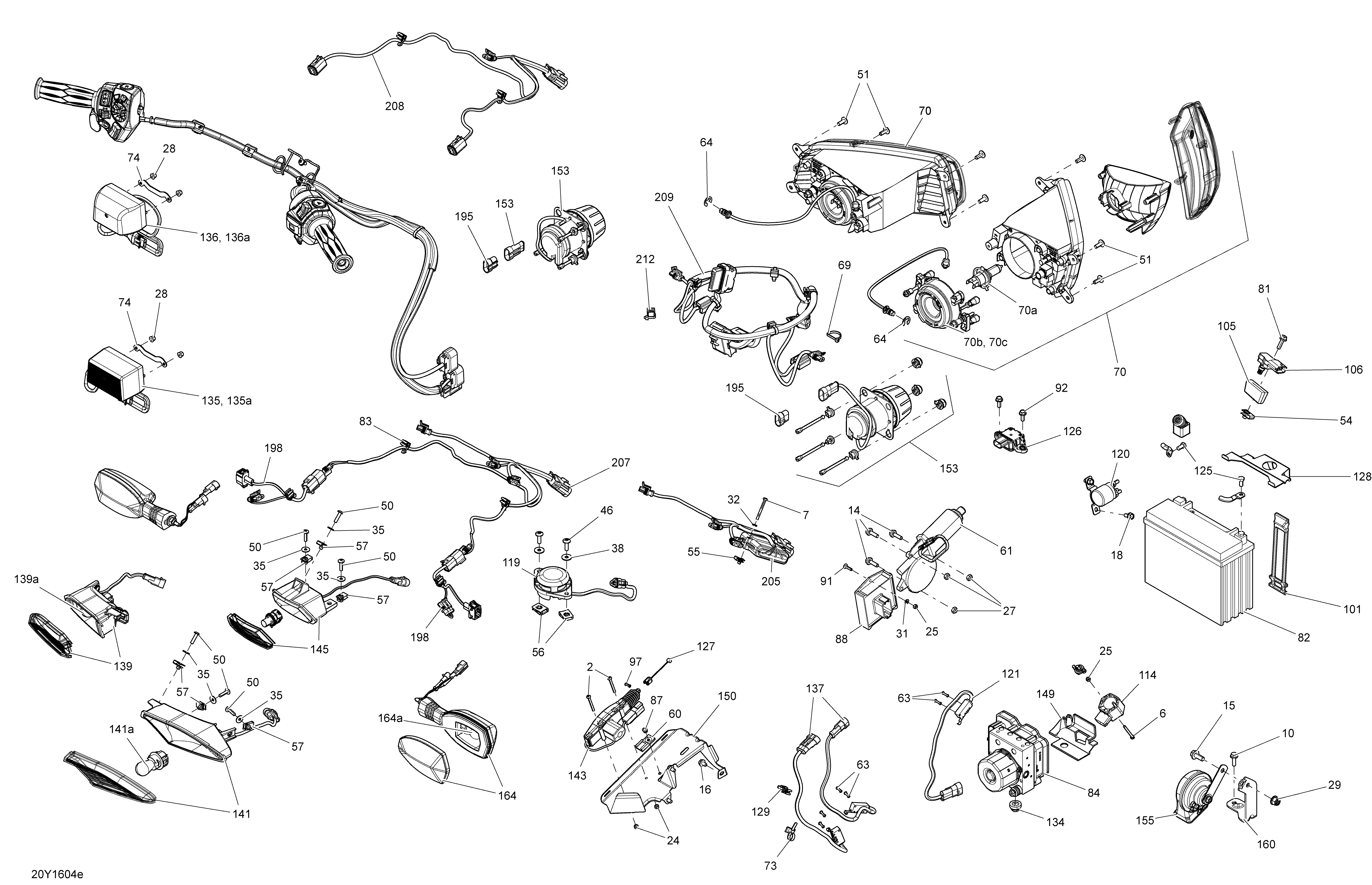

10- Electrical System - Package Standard-S-Special - Headlamp And Accessories для BRP F3 - 2016
-
№АртикулНазвание
-
2205444056 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
6207144044 Hex. Cap ScrewHex. Cap Screw
-
7207144060 Hex. Screw M4 X 40Hex. Screw M4 X 40
-
10207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
14207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15207682034 Hex. Flanged ScrewHex. Flanged Screw
-
16210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
18210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
24232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
25232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
27232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
28233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
29233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
31234041480 Flat Washer 4 mmFlat Washer 4 mm
-
32234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
35234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
38234062670 Flat Washer, StainlessFlat Washer, Stainless
-
46250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
50250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
51250000721 Torx ScrewTorx Screw
-
54250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
55250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
56250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
57250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
60270000141 ClipClip
-
61278003071 Control Gear MotorControl Gear Motor
-
63293150150 Pop RivetPop Rivet
-
64293370013 E-CirclipE-Circlip
-
69293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
70710004701 LH HeadlampLH Headlamp
-
70710004702 RH HeadlampRH Headlamp
-
70a515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
70b219800280 Rubber Cap ProtectorRubber Cap Protector
-
70c219800281 SpringSpring
-
73293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
74710004815 PlatePlate
-
81207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
82410922962 Battery, 12 Volts, 21 AmperesBattery, 12 Volts, 21 Amperes
-
83293750063 Clip Tie-RapClip Tie-Rap
-
84219800375 VCM ModuleVCM Module
-
87390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
88710004883 PBM Module AssemblyPBM Module Assembly
-
91250000750 Torx Screw M4 X 16Torx Screw M4 X 16
-
92210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
97390403000 Pop Rivet 5/32Pop Rivet 5/32
-
101520000528 LatchLatch
-
105707000586 FilterFilter
-
106707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
114219800354 Steering Position SensorSteering Position Sensor
-
119710001346 Passenger Detection SwitchPassenger Detection Switch
-
120710001364 Starter RelayStarter Relay
-
121710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
125250000282 Battery Bolt KitBattery Bolt Kit
-
126710002677 Yaw Rate SensorYaw Rate Sensor
-
127710002889 Reverse CableReverse Cable
-
128710002893 Battery HolderBattery Holder
-
129710002899 Clip Tie-RapClip Tie-Rap
-
134710003279 Damper ShockDamper Shock
-
135710003348 License Plate Light. North America ModelLicense Plate Light. North America Model
-
135a415129261 Bulb 12V 10W. North America ModelBulb 12V 10W. North America Model
-
136710003349 License Plate Light. Except North America ModelLicense Plate Light. Except North America Model
-
136a415129261 Bulb 12V 10W. Except North America ModelBulb 12V 10W. Except North America Model
-
137710003412 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
139710003707 LH Rear FlasherLH Rear Flasher
-
139a219800304 Flasher Bulb. North America ModelFlasher Bulb. North America Model
-
141710003708 RH Rear FlasherRH Rear Flasher
-
141a219800304 Flasher Bulb. Europe ModelFlasher Bulb. Europe Model
-
143710003776 ActuatorActuator
-
145710003879 Reverse LightReverse Light
-
149710003996 VCM Harness ProtectorVCM Harness Protector
-
150710004093 Reverse Actuator SupportReverse Actuator Support
-
153710004151 RH Low Beam. Europe ModelRH Low Beam. Europe Model
-
153710004153 RH Low Beam. Australia, Japan ModelRH Low Beam. Australia, Japan Model
-
153710004150 LH Low Beam. Europe ModelLH Low Beam. Europe Model
-
153710004152 LH Low Beam. Australia, Japan ModelLH Low Beam. Australia, Japan Model
-
155710004229 HornHorn
-
160710004412 Black Horn SupportBlack Horn Support
-
164710004400 Rear Flasher. Europe, Australia ModelRear Flasher. Europe, Australia Model
-
164a715900043 Bulb 12V 21W. Europe ModelBulb 12V 21W. Europe Model
-
195710004901 Connector Plug. North America ModelConnector Plug. North America Model
-
198
-
205710004961 Cargo Harness. North America ModelCargo Harness. North America Model
-
207710004962 Cargo Harness. Europe, Australia ModelCargo Harness. Europe, Australia Model
-
208710004963 Cargo Harness. Japan ModelCargo Harness. Japan Model
-
209710004986 Dashboard Harness. North America ModelDashboard Harness. North America Model
-
209710004987 Dashboard Harness. Except North America ModelDashboard Harness. Except North America Model
-
212710005037 ClipClip
