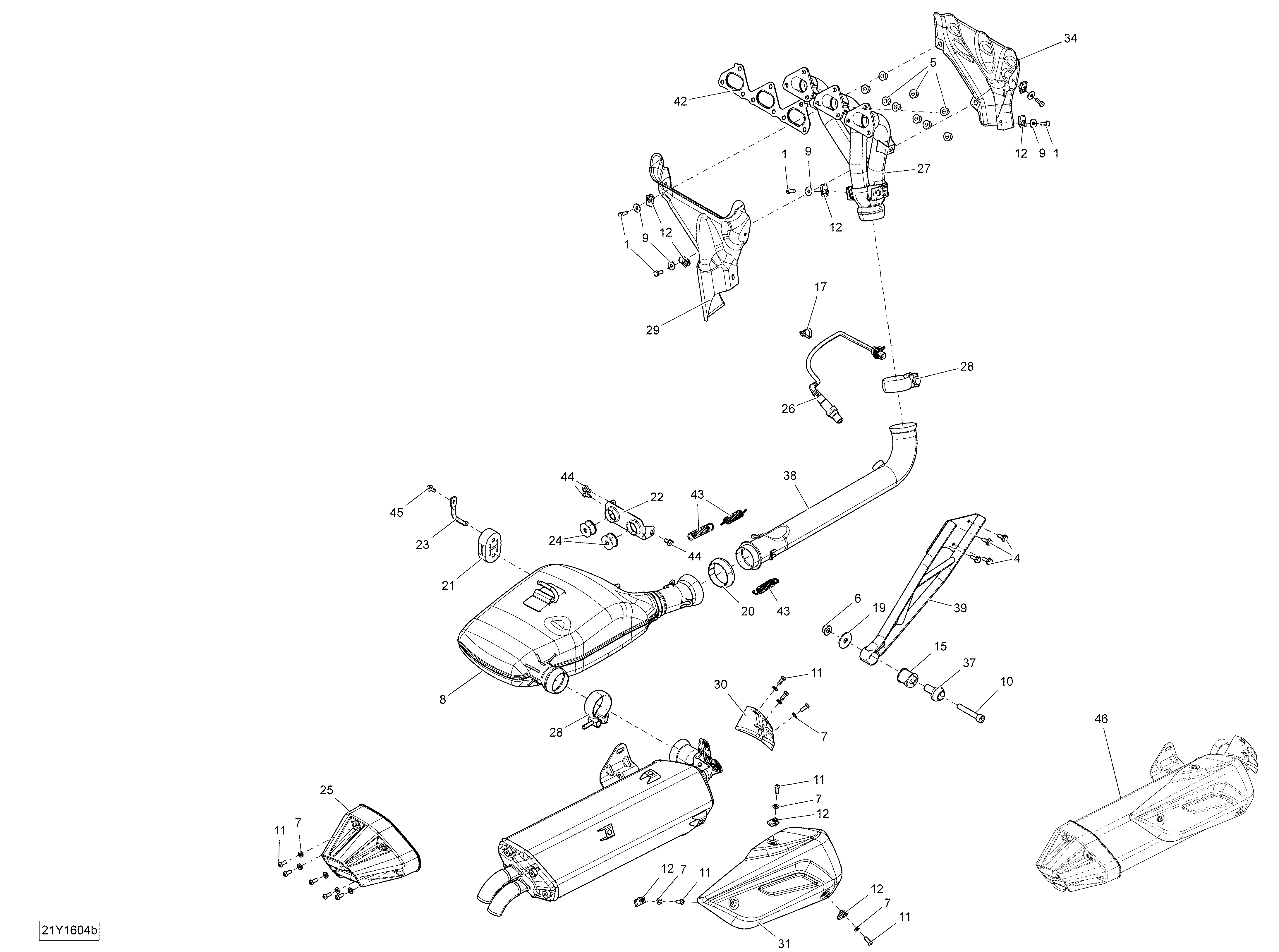

01- Exhaust System - Package Standard-S-Special - Australia для BRP F3 - 2016

  • №
    Артикул
    Название
  • 1
    207361660 Hex. Screw M6 X 16, Scotch Grip
    Hex. Screw M6 X 16, Scotch Grip
  • 5
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 6
    233101600 Hex. Flanged Nut M10
    Hex. Flanged Nut M10
  • 7
    234061600 Flat Washer M6, Stainless. Model with Package STD
    Flat Washer M6, Stainless. Model with Package STD
  • 7
    234061670 Flat Washer 6 mm. Model without Package STD
    Flat Washer 6 mm. Model without Package STD
  • 8
    707601881 Primary Muffler
    Primary Muffler
  • 9
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 10
    244006060 Socket Screw M10 X 60
    Socket Screw M10 X 60
  • 11
    250000437 Socket Screw, M6 X 16. Model with Package STD
    Socket Screw, M6 X 16. Model with Package STD
  • 11
    250000616 Socket Screw, M6 X 16. Model without Package STD
    Socket Screw, M6 X 16. Model without Package STD
  • 12
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 15
    293830162 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 17
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 19
    506150000 Washer 10 mm
    Washer 10 mm
  • 20
    514054174 Exhaust Gasket
    Exhaust Gasket
  • 21
    707600638 Rubber Bumper
    Rubber Bumper
  • 22
    707600661 Front Bracket
    Front Bracket
  • 23
    707600666 Retaining Rod
    Retaining Rod
  • 24
    707600702 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 25
    707600867 Crystal Silver Muffler End Cap. Model with Package STD
    Crystal Silver Muffler End Cap. Model with Package STD
  • 25
    707601048 Carbon Black Muffler End Cap. Model without Package STD
    Carbon Black Muffler End Cap. Model without Package STD
  • 26
    707600872 Oxygen Sensor
    Oxygen Sensor
  • 27
    707600937 Exhaust Manifold
    Exhaust Manifold
  • 28
    707600980 Exhaust Clamp
    Exhaust Clamp
  • 29
    707601028 Inner Heat Deflector
    Inner Heat Deflector
  • 30
    707601132 Crystal Silver Heat Shield. Model with Package STD
    Crystal Silver Heat Shield. Model with Package STD
  • 30
    707601054 Carbon Black Heat Shield. Model without Package STD
    Carbon Black Heat Shield. Model without Package STD
  • 31
    707601382 Crystal Silver Heat Shield. Model with Package STD
    Crystal Silver Heat Shield. Model with Package STD
  • 31
    707601381 Carbon Black Heat Shield. Model without Package STD
    Carbon Black Heat Shield. Model without Package STD
  • 34
    707601504 External Heat Deflector
    External Heat Deflector
  • 37
    707601657 Bushing
    Bushing
  • 38
    707601605 Exhaust Tuned Pipe
    Exhaust Tuned Pipe
  • 39
    707601683 Muffler Support
    Muffler Support
  • 42
    707601857 Exhaust Seal
    Exhaust Seal
  • 43
    415107100 Spring
    Spring
  • 44
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 45
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 46
    707601598 Muffler Assy. AUS Model with Package STD
    Muffler Assy. AUS Model with Package STD
  • 46
    707601732 Muffler Assy. AUS Model with Package S / SPE
    Muffler Assy. AUS Model with Package S / SPE
