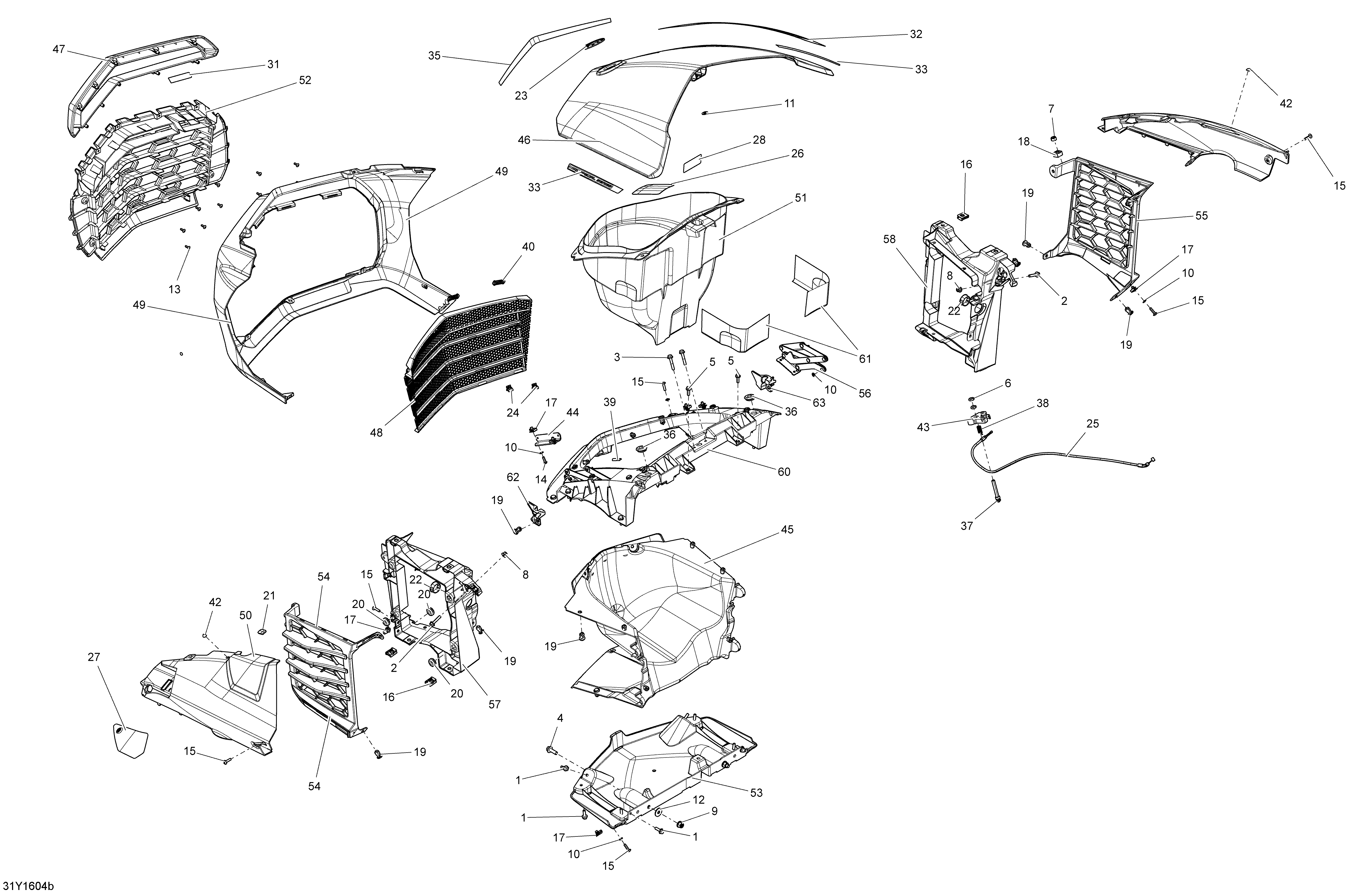

09- Body And Accessories - Front Storage - Package Special для BRP F3 - 2016
-
№АртикулНазвание
-
1207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207663054 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
3207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
4207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
5210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
6232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
7232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10234051670 Flat Washer M5Flat Washer M5
-
11234081410 Flat Washer 8 mmFlat Washer 8 mm
-
12234082430 Flat Washer M8Flat Washer M8
-
13250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
14250000578 Torx Truss Screw M5 X 16Torx Truss Screw M5 X 16
-
15250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
16250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
17250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
18269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
19293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
20293720053 GrommetGrommet
-
21293830143 Rubber PadRubber Pad
-
22414916600 Nylon CapNylon Cap
-
23516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
24517302785 ClipClip
-
25517305742 Hood CableHood Cable
-
26704904936 Notice Decal, CleaningNotice Decal, Cleaning
-
27704905092 -Decal, Tire And Loading-Decal, Tire And Loading
-
28704905122 Load DecalLoad Decal
-
31704905259 Logo SLogo S
-
32704905403 Can-Am Hood DecalCan-Am Hood Decal
-
33704905453 Hood Decal Special SeriesHood Decal Special Series
-
35704905612 DecalDecal
-
36705000321 Oval WasherOval Washer
-
37705002223 LugLug
-
38705003911 SpringSpring
-
39705004062 Protector TubeProtector Tube
-
40705004838 Flat ClipFlat Clip
-
42705006634 Polyurethane StopperPolyurethane Stopper
-
43705007379 LatchLatch
-
44708200348 LH Hinge HoodLH Hinge Hood
-
45708200362 Front Air Duct ModuleFront Air Duct Module
-
46708200544 HoodHood
-
47708200468 Front MouthFront Mouth
-
48708200393 Front Deflector GrillFront Deflector Grill
-
49708200693 Monolith Black Front FasciaMonolith Black Front Fascia
-
50708200559 Rh Vent PanelRh Vent Panel
-
50708200558 Lh Vent PanelLh Vent Panel
-
51708200403 Storage BinStorage Bin
-
52708200404 Front GrillFront Grill
-
53708200405 Front Skid PlateFront Skid Plate
-
54708200406 LH Front Lateral VentLH Front Lateral Vent
-
55708200407 RH Front Lateral VentRH Front Lateral Vent
-
56708200417 RH Hinge HoodRH Hinge Hood
-
57708200437 LH Breakaway Lateral Tower LegLH Breakaway Lateral Tower Leg
-
58708200438 RH Breakaway Lateral Tower LegRH Breakaway Lateral Tower Leg
-
60708200446 Sub-Frame Type StructureSub-Frame Type Structure
-
61708200490 Heat Shield SheetHeat Shield Sheet
-
62708200493 LH Front Union LinkLH Front Union Link
-
63708200494 RH Front Union LinkRH Front Union Link
