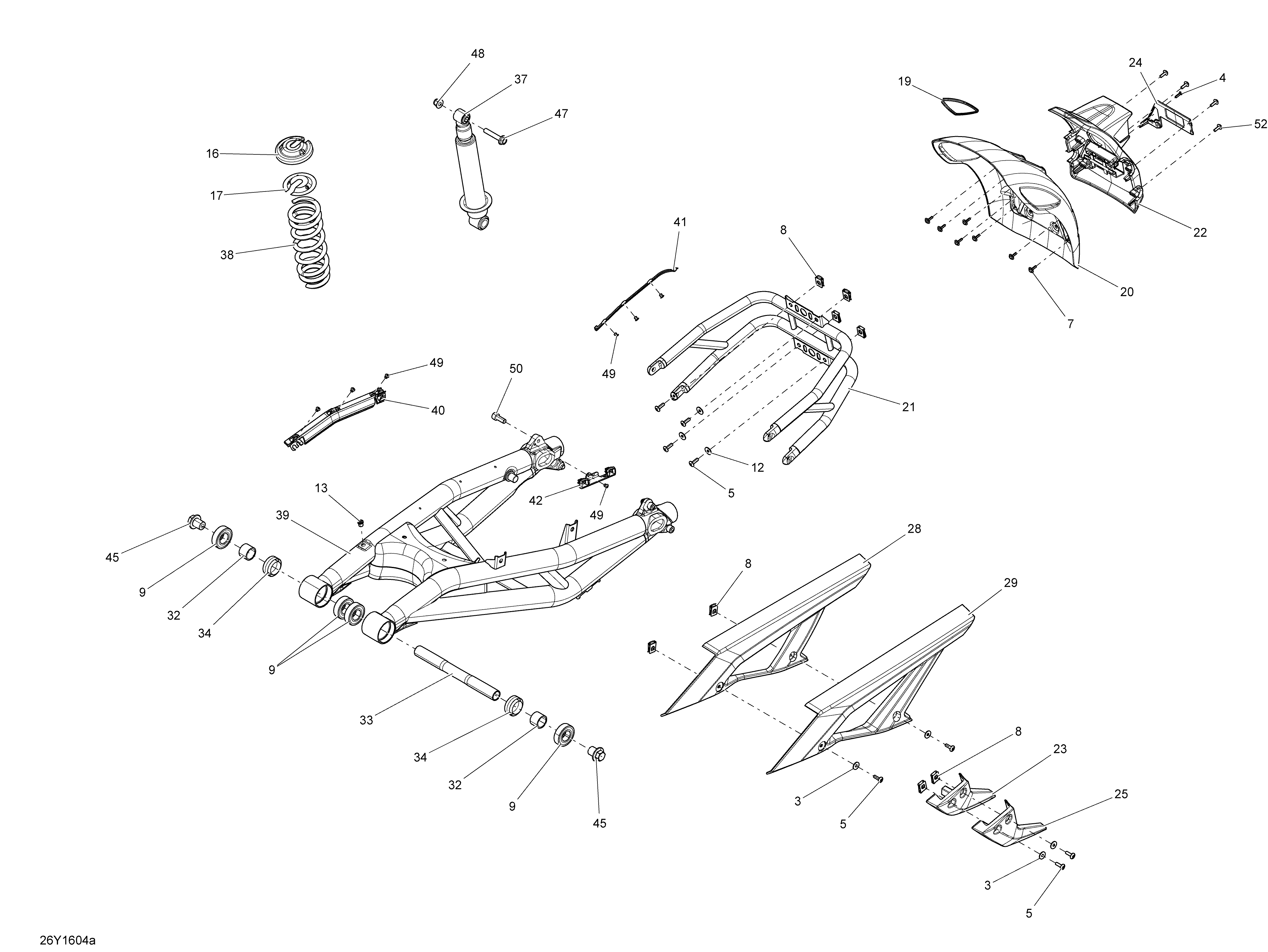

08- Suspension, Rear - Except Package T-LTD для BRP F3 - 2016

  • №
    Артикул
    Название
  • 3
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 4
    250000287 Flanged Torx Screw K40 X 16
    Flanged Torx Screw K40 X 16
  • 5
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 5
    250000705 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 7
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 8
    250100169 Panel Nut M6 X 1
    Panel Nut M6 X 1
  • 9
    293350055 Ball Bearing
    Ball Bearing
  • 12
    250200082 Flat Washer
    Flat Washer
  • 13
    293450275 Insert
    Insert
  • 16
    503193781 Spring Stopper
    Spring Stopper
  • 17
    503193782 Cap
    Cap
  • 19
    705003412 Red Lateral Reflector. Model North America
    Red Lateral Reflector. Model North America
  • 19
    705002423 Amber Lateral Reflector. Except Model North America
    Amber Lateral Reflector. Except Model North America
  • 20
    705008247 Steel Black Met Rear Fender
    Steel Black Met Rear Fender
  • 21
    705008249 Carbon Black Rear Fender Support
    Carbon Black Rear Fender Support
  • 22
    705009197 Rear Fender Moulding. Model North America
    Rear Fender Moulding. Model North America
  • 22
    705008241 Rear Fender Moulding. Except Model North America
    Rear Fender Moulding. Except Model North America
  • 23
    705008756 Lower Belt Guard. Except Model North America
    Lower Belt Guard. Except Model North America
  • 24
    705008990 Cover Moulding
    Cover Moulding
  • 25
    705009059 Lower Belt Guard
    Lower Belt Guard
  • 28
    705010380
  • 29
    705010381
  • 32
    706001152 Spacer
    Spacer
  • 33
    706001182 Swing Arm Axle
    Swing Arm Axle
  • 34
    706001366 Sleeve
    Sleeve
  • 37
    706001703 Shock
    Shock
  • 38
    706002113 Spring
    Spring
  • 39
    706002313 Black Swingarm. Package STD
    Black Swingarm. Package STD
  • 39
    706002314 Red Swingarm. Package S Color Magnesium
    Red Swingarm. Package S Color Magnesium
  • 39
    706002315 Black Carbon Swingarm. Package S Color Pearl White
    Black Carbon Swingarm. Package S Color Pearl White
  • 39
    706002315 Black Carbon Swingarm. Package S Color Steel Black
    Black Carbon Swingarm. Package S Color Steel Black
  • 39
    706002315 Black Carbon Swingarm. Package S Color Denim Blue
    Black Carbon Swingarm. Package S Color Denim Blue
  • 39
    706002315 Black Carbon Swingarm. Package S Color Dragon Red
    Black Carbon Swingarm. Package S Color Dragon Red
  • 39
    706002315 Black Carbon Swingarm. Package SPE
    Black Carbon Swingarm. Package SPE
  • 40
    706202131 Cable Cap
    Cable Cap
  • 41
    706202219 Cable Cap
    Cable Cap
  • 42
    706202264 Cable Cap
    Cable Cap
  • 45
    706001579 Bolt M20
    Bolt M20
  • 47
    207605554 Hex. Flanged Screw M10 X 55
    Hex. Flanged Screw M10 X 55
  • 48
    233201464 Hex. Elast. Flanged Nut M10
    Hex. Elast. Flanged Nut M10
  • 49
    293150102 Rivet 3/16''
    Rivet 3/16''
  • 50
    205502560 Allen Screw S.GRIP M10 X 25
    Allen Screw S.GRIP M10 X 25
  • 52
    243141630 Hex. Plastic Screw M4.8 X 16
    Hex. Plastic Screw M4.8 X 16
