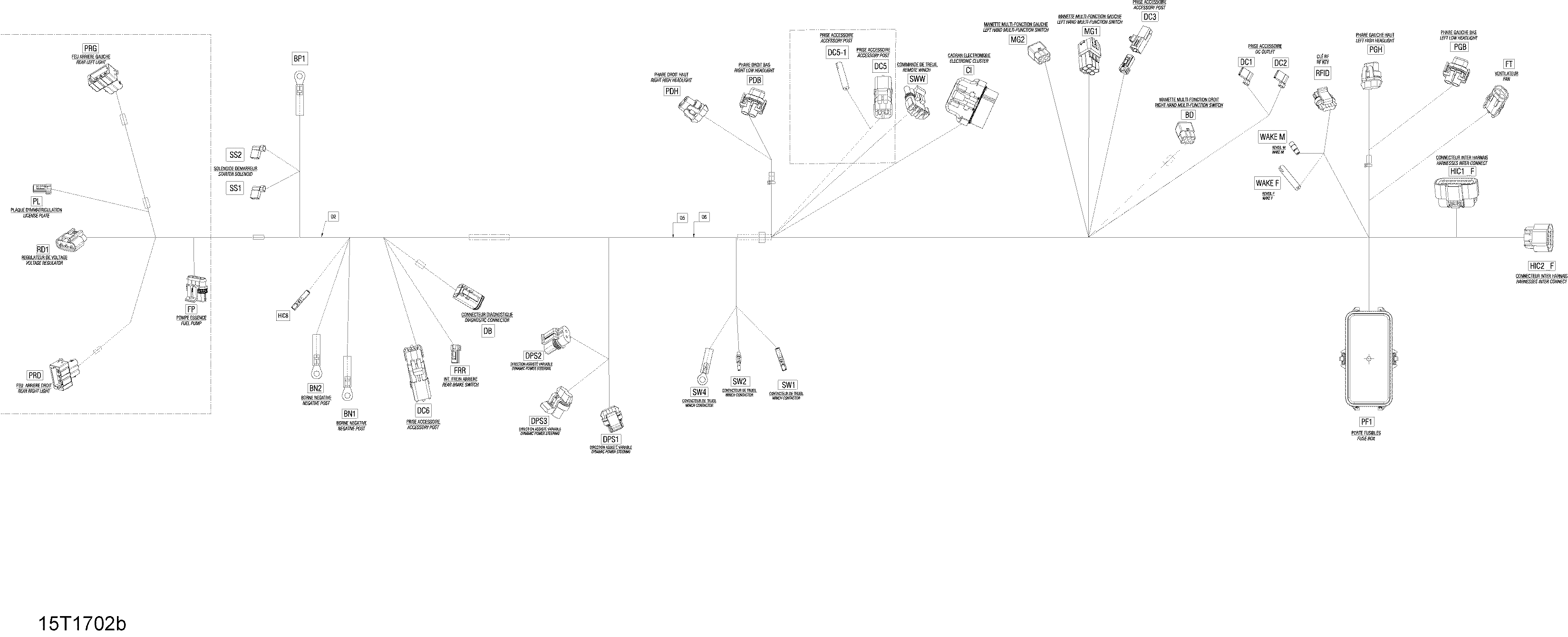

10- Electrical Harness - Main 710005036 Except Europe для BRP Renegade - 2017
-
№АртикулНазвание
-
710005036 Main HarnessMain Harness
-
BD710000081 Female Housing, 6 Circuits. SUMITOMO 6180-6181Female Housing, 6 Circuits. SUMITOMO 6180-6181
-
BD710000080 Cap. SUMITOMO 7160-9465 (PKC T2412)Cap. SUMITOMO 7160-9465 (PKC T2412)
-
BD710000402 Wire Seal. SUMITOMO 7165-0076Wire Seal. SUMITOMO 7165-0076
-
BD409012100 Female Terminal. SUMITOMO 1500-0110Female Terminal. SUMITOMO 1500-0110
-
BN1710000913 Terminal. TYCO 61868-1Terminal. TYCO 61868-1
-
BN2278001392 Open Barrel. AMP 41125Open Barrel. AMP 41125
-
BP1278001392 Open Barrel. AMP 41125Open Barrel. AMP 41125
-
CI515175801 Female Housing, 24 Circuits. PACKARD 12129225Female Housing, 24 Circuits. PACKARD 12129225
-
CI515175802 Retainer Block. PACKARD 12129183Retainer Block. PACKARD 12129183
-
CI515175812 Plug. PACKARD 12129557Plug. PACKARD 12129557
-
CI710000399 Female Housing. PACKARD 12129811Female Housing. PACKARD 12129811
-
CI515175803 Wire Seal. PACKARD 12110403Wire Seal. PACKARD 12110403
-
CI710001131 Female Terminal. PACKARD 12084913Female Terminal. PACKARD 12084913
-
D2409012700 Diode. IN5406G1Diode. IN5406G1
-
D5409012700 Diode. IN5406G1Diode. IN5406G1
-
D6409012700 Diode. IN5406G1Diode. IN5406G1
-
DB278002896 Housing, 6 Circuits. DEUTSCH DT06-6S-CE06Housing, 6 Circuits. DEUTSCH DT06-6S-CE06
-
DB515175678 Male Wedge, 6 Circuits. DEUTSCH W6S-P012 VERTMale Wedge, 6 Circuits. DEUTSCH W6S-P012 VERT
-
DB293000052 Sealing Cap. DEUTSCH 114017Sealing Cap. DEUTSCH 114017
-
DB278001665 Female Terminal. DEUTSCH 1062-16-0622Female Terminal. DEUTSCH 1062-16-0622
-
DB278000632 Female Terminal. DEUTSCH 1062-16-0122Female Terminal. DEUTSCH 1062-16-0122
-
DC_1710002398 Female TerminalFemale Terminal
-
DC_1710002399 Female TerminalFemale Terminal
-
DC_2710002398 Female TerminalFemale Terminal
-
DC_2710002399 Female TerminalFemale Terminal
-
DC3515175658 Female Housing, 2 Circuits. AMP 174463-2Female Housing, 2 Circuits. AMP 174463-2
-
DC3710000667 Male Housing, 2 Circuits. AMP 178602-1Male Housing, 2 Circuits. AMP 178602-1
-
DC3515175231 Female Terminal. AMP 173631-1Female Terminal. AMP 173631-1
-
DC5710000992 Clip. PACKARD 15495795Clip. PACKARD 15495795
-
DC5278000220 Male Connector, 2 Circuits. PACKARD 12015792Male Connector, 2 Circuits. PACKARD 12015792
-
DC5278000217 Female Housing, 2 Circuits. PACKARD 12010973Female Housing, 2 Circuits. PACKARD 12010973
-
DC5278000216 Wire Seal. PACKARD 12010300Wire Seal. PACKARD 12010300
-
DC5278001065 Wire Seal. PACKARD 15324985Wire Seal. PACKARD 15324985
-
DC5278000223 Female Terminal. PACKARD 12089188Female Terminal. PACKARD 12089188
-
DC5_1278001007 Insulated Sheath. YASAKI 7120-1151Insulated Sheath. YASAKI 7120-1151
-
DC5_1710000421 Female Terminal. YASAKI 7115-1050-02Female Terminal. YASAKI 7115-1050-02
-
DC6710000992 Clip. PACKARD 15495795Clip. PACKARD 15495795
-
DC6278000220 Male Connector, 2 Circuits. PACKARD 12015792Male Connector, 2 Circuits. PACKARD 12015792
-
DC6278000217 Female Housing, 2 Circuits. PACKARD 12010973Female Housing, 2 Circuits. PACKARD 12010973
-
DC6278000216 Wire Seal. PACKARD 12010300Wire Seal. PACKARD 12010300
-
DC6278001065 Wire Seal. PACKARD 15324985Wire Seal. PACKARD 15324985
-
DC6278000223 Female Terminal. PACKARD 12089188Female Terminal. PACKARD 12089188
-
DPS1710001161 Housing. PACKARD 15410728Housing. PACKARD 15410728
-
DPS1710001162 Lock. PACKARD 15305028Lock. PACKARD 15305028
-
DPS1710001225 Cap. PACKARD 15305171Cap. PACKARD 15305171
-
DPS1710001114 CapCap
-
DPS1710001163 Wire Seal. PACKARD 15366022Wire Seal. PACKARD 15366022
-
DPS1710001164 Female Terminal. PACKARD 15326266Female Terminal. PACKARD 15326266
-
DPS2278001326 Fuse Holder Cap. PACKARD 12033731Fuse Holder Cap. PACKARD 12033731
-
DPS2278001987 Fuse Holder. PACKARD 12066681Fuse Holder. PACKARD 12066681
-
DPS2710000113 Female Terminal. PACKARD 12066614Female Terminal. PACKARD 12066614
-
DPS3710001157 Housing. PACKARD 12052613Housing. PACKARD 12052613
-
DPS3710001323 Lock. PACKARD 12059897Lock. PACKARD 12059897
-
F11710000747 Little Fuse, 30 Amperes. MINI-FUSIBLE 30 AMPLittle Fuse, 30 Amperes. MINI-FUSIBLE 30 AMP
-
F12710000745 Little Fuse, 15 Amperes. MINI-FUSIBLE 15 AMPLittle Fuse, 15 Amperes. MINI-FUSIBLE 15 AMP
-
F14710000745 Little Fuse, 15 Amperes. MINI-FUSIBLE 15 AMPLittle Fuse, 15 Amperes. MINI-FUSIBLE 15 AMP
-
F15710000742 Little Fuse, 5 Amperes. LITTLE FUSE 297005Little Fuse, 5 Amperes. LITTLE FUSE 297005
-
F3710001613 Fuse. LITTLEFUSE 257040Fuse. LITTLEFUSE 257040
-
F4710000742 Little Fuse, 5 Amperes. LITTLE FUSE 297005Little Fuse, 5 Amperes. LITTLE FUSE 297005
-
F5710000742 Little Fuse, 5 Amperes. LITTLE FUSE 297005Little Fuse, 5 Amperes. LITTLE FUSE 297005
-
F6710000742 Little Fuse, 5 Amperes. LITTLE FUSE 297005Little Fuse, 5 Amperes. LITTLE FUSE 297005
-
F7710000742 Little Fuse, 5 Amperes. LITTLE FUSE 297005Little Fuse, 5 Amperes. LITTLE FUSE 297005
-
F8710000742 Little Fuse, 5 Amperes. LITTLE FUSE 297005Little Fuse, 5 Amperes. LITTLE FUSE 297005
-
F9710002590 Fuse, 25 Amps. TYCO BD280-1927-25/16-WFuse, 25 Amps. TYCO BD280-1927-25/16-W
-
FL-1715003119 Wire-Fuse 31-40 AMPWire-Fuse 31-40 AMP
-
FL-2715003119 Wire-Fuse 31-40 AMPWire-Fuse 31-40 AMP
-
FP409209700 Female Housing, 4 Circuits. AMP 282088-1Female Housing, 4 Circuits. AMP 282088-1
-
FP278001013 Wire Seal. AMP 281934-2Wire Seal. AMP 281934-2
-
FP515176621 Wire Seal. AMP 281934-4Wire Seal. AMP 281934-4
-
FP278001014 Female Terminal. AMP 282110-1Female Terminal. AMP 282110-1
-
FP710001340 Female Terminal. AMP 282403-1Female Terminal. AMP 282403-1
-
FRR515175658 Female Housing, 2 Circuits. AMP 174463-2Female Housing, 2 Circuits. AMP 174463-2
-
FRR515175231 Female Terminal. AMP 173631-1Female Terminal. AMP 173631-1
-
FT409210100 Clip. PACKARD 06288295Clip. PACKARD 06288295
-
FT278000217 Female Housing, 2 Circuits. PACKARD 12010973Female Housing, 2 Circuits. PACKARD 12010973
-
FT278000218 Wire Seal. PACKARD 15324982Wire Seal. PACKARD 15324982
-
FT409004300 Male Terminal. PACKARD 12124582Male Terminal. PACKARD 12124582
-
HIC1_F710001226 Housing. PACKARD 15326863Housing. PACKARD 15326863
-
HIC1_F710001221 Lock. PACKARD 15317832Lock. PACKARD 15317832
-
HIC1_F710001225 Cap. PACKARD 15305171Cap. PACKARD 15305171
-
HIC1_F710001233 Seal. PACKARD 15366021Seal. PACKARD 15366021
-
HIC1_F710001332 Seal Wire. PACKARD 15366060Seal Wire. PACKARD 15366060
-
HIC1_F710001229 Terminal. PACKARD 12191818Terminal. PACKARD 12191818
-
HIC1_F710001228 Terminal. PACKARD 12191819Terminal. PACKARD 12191819
-
HIC2_F710001928 Housing. PACKARD 15326835Housing. PACKARD 15326835
-
HIC2_F710001221 Lock. PACKARD 15317832Lock. PACKARD 15317832
-
HIC2_F710001225 Cap. PACKARD 15305171Cap. PACKARD 15305171
-
HIC2_F710001233 Seal. PACKARD 15366021Seal. PACKARD 15366021
-
HIC2_F710001332 Seal Wire. PACKARD 15366060Seal Wire. PACKARD 15366060
-
HIC2_F710001229 Terminal. PACKARD 12191818Terminal. PACKARD 12191818
-
HIC2_F710001228 Terminal. PACKARD 12191819Terminal. PACKARD 12191819
-
HIC8278001007 Insulated Sheath. YASAKI 7120-1151Insulated Sheath. YASAKI 7120-1151
-
HIC8710000421 Female Terminal. YASAKI 7115-1050-02Female Terminal. YASAKI 7115-1050-02
-
MG1710000835 Male Terminal Housing, 6 Circuits. SUMITOMO 6187-6801Male Terminal Housing, 6 Circuits. SUMITOMO 6187-6801
-
MG1710000080 Cap. SUMITOMO 7160-9465 (PKC T2412)Cap. SUMITOMO 7160-9465 (PKC T2412)
-
MG1710000402 Wire Seal. SUMITOMO 7165-0076Wire Seal. SUMITOMO 7165-0076
-
MG1409012300 Seal. SUMITOMO 7160-8234Seal. SUMITOMO 7160-8234
-
MG1409011300 Male Terminal. SUMITOMO 1500-0105Male Terminal. SUMITOMO 1500-0105
-
MG2710000081 Female Housing, 6 Circuits. SUMITOMO 6180-6181Female Housing, 6 Circuits. SUMITOMO 6180-6181
-
MG2710000080 Cap. SUMITOMO 7160-9465 (PKC T2412)Cap. SUMITOMO 7160-9465 (PKC T2412)
-
MG2710000402 Wire Seal. SUMITOMO 7165-0076Wire Seal. SUMITOMO 7165-0076
-
MG2409012300 Seal. SUMITOMO 7160-8234Seal. SUMITOMO 7160-8234
-
MG2409012100 Female Terminal. SUMITOMO 1500-0110Female Terminal. SUMITOMO 1500-0110
-
PDB710002578 Housing. PACKARD 12124819Housing. PACKARD 12124819
-
PDB710001427 Wire Seal. PACKARD 12089444Wire Seal. PACKARD 12089444
-
PDB278002578 Terminal. PACKARD 12084201Terminal. PACKARD 12084201
-
PDH710002278 Housing. PACKARD 12059183Housing. PACKARD 12059183
-
PDH710002279 Lock. PACKARD 12059185Lock. PACKARD 12059185
-
PDH710001427 Wire Seal. PACKARD 12089444Wire Seal. PACKARD 12089444
-
PDH278002578 Terminal. PACKARD 12084201Terminal. PACKARD 12084201
-
PF1710001026 Fuse Cover. TYCO 1443996-3Fuse Cover. TYCO 1443996-3
-
PF1710002653 Fuse DecalFuse Decal
-
PF1710005288 Fuse DecalFuse Decal
-
PF1278002172 FoamFoam
-
PF1415129856 Fuse Box Base Ass?y. TYCO C-1443997Fuse Box Base Ass?y. TYCO C-1443997
-
PF1710000840 Cap. AMP 828922Cap. AMP 828922
-
PF1278000999 Wire Seal. AMP 828905-1Wire Seal. AMP 828905-1
-
PF1415128501 Seal. AMP 828904-1Seal. AMP 828904-1
-
PF1515177009 Female Terminal. AMP 1-968857-3Female Terminal. AMP 1-968857-3
-
PF1515177012 Female Terminal. AMP 1-968855-3 ( DRAW. NO. C-1355036 )VOFemale Terminal. AMP 1-968855-3 ( DRAW. NO. C-1355036 )VO
-
PF2710000992 Clip. PACKARD 15495795Clip. PACKARD 15495795
-
PF2278001326 Fuse Holder Cap. PACKARD 12033731Fuse Holder Cap. PACKARD 12033731
-
PF2278001325 Fuse Holder. PACKARD 12033769Fuse Holder. PACKARD 12033769
-
PF2710000113 Female Terminal. PACKARD 12066614Female Terminal. PACKARD 12066614
-
PGB710002578 Housing. PACKARD 12124819Housing. PACKARD 12124819
-
PGB710001427 Wire Seal. PACKARD 12089444Wire Seal. PACKARD 12089444
-
PGB278002578 Terminal. PACKARD 12084201Terminal. PACKARD 12084201
-
PGH710002278 Housing. PACKARD 12059183Housing. PACKARD 12059183
-
PGH710002279 Lock. PACKARD 12059185Lock. PACKARD 12059185
-
PGH710001427 Wire Seal. PACKARD 12089444Wire Seal. PACKARD 12089444
-
PGH278002578 Terminal. PACKARD 12084201Terminal. PACKARD 12084201
-
PL515175658 Female Housing, 2 Circuits. AMP 174463-2Female Housing, 2 Circuits. AMP 174463-2
-
PL710003896 Female Terminal. AMP 173630-6Female Terminal. AMP 173630-6
-
PRD710003167 Connector, 3 Positions. OKAYMOTOR DJ032-3.5-21Connector, 3 Positions. OKAYMOTOR DJ032-3.5-21
-
PRD415128501 Seal. AMP 828904-1Seal. AMP 828904-1
-
PRD710002443 Terminal. AMP 929941Terminal. AMP 929941
-
PRG710003167 Connector, 3 Positions. OKAYMOTOR DJ032-3.5-21Connector, 3 Positions. OKAYMOTOR DJ032-3.5-21
-
PRG415128501 Seal. AMP 828904-1Seal. AMP 828904-1
-
PRG710002443 Terminal. AMP 929941Terminal. AMP 929941
-
R1515176774 Relay, 30 AMP. SONG CHUAN 301-1C-CR1 U01Relay, 30 AMP. SONG CHUAN 301-1C-CR1 U01
-
R2710001778 Relay. SONG CHUAN 303-AH-C-R1-U01Relay. SONG CHUAN 303-AH-C-R1-U01
-
R3515176774 Relay, 30 AMP. SONG CHUAN 301-1C-CR1 U01Relay, 30 AMP. SONG CHUAN 301-1C-CR1 U01
-
R4710001778 Relay. SONG CHUAN 303-AH-C-R1-U01Relay. SONG CHUAN 303-AH-C-R1-U01
-
R5710001778 Relay. SONG CHUAN 303-AH-C-R1-U01Relay. SONG CHUAN 303-AH-C-R1-U01
-
R8710001778 Relay. SONG CHUAN 303-AH-C-R1-U01Relay. SONG CHUAN 303-AH-C-R1-U01
-
RD1710000879 Housing, 3 Circuits. FURUKAWA QLW-A-B3FBHousing, 3 Circuits. FURUKAWA QLW-A-B3FB
-
RD1710000882 Cap. QLW-W-DCap. QLW-W-D
-
RD1710001932 Seal. FURUKAWA QLW-W-800Seal. FURUKAWA QLW-W-800
-
RD1710001934 Terminal. FURUKAWA QLW-F-800Terminal. FURUKAWA QLW-F-800
-
RFID710001161 Housing. PACKARD 15410728Housing. PACKARD 15410728
-
RFID710001162 Lock. PACKARD 15305028Lock. PACKARD 15305028
-
RFID710001225 Cap. PACKARD 15305171Cap. PACKARD 15305171
-
RFID710001163 Wire Seal. PACKARD 15366022Wire Seal. PACKARD 15366022
-
RFID710001164 Female Terminal. PACKARD 15326266Female Terminal. PACKARD 15326266
-
SS1409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
SS2409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
SW1278001007 Insulated Sheath. YASAKI 7120-1151Insulated Sheath. YASAKI 7120-1151
-
SW1710000421 Female Terminal. YASAKI 7115-1050-02Female Terminal. YASAKI 7115-1050-02
-
SW2278001008 Insulated Sheath. YASAKI 7120-8013Insulated Sheath. YASAKI 7120-8013
-
SW2278002261 Female Terminal. YASAKI 7113-1020-02Female Terminal. YASAKI 7113-1020-02
-
SW4278000992 Open Barrel. AMP 485029-1Open Barrel. AMP 485029-1
-
SWW278000273 Male Housing, 3 Circuits. PACKARD 12015793Male Housing, 3 Circuits. PACKARD 12015793
-
SWW278001065 Wire Seal. PACKARD 15324985Wire Seal. PACKARD 15324985
-
SWW278000223 Female Terminal. PACKARD 12089188Female Terminal. PACKARD 12089188
-
WAKE_F278001007 Insulated Sheath. YASAKI 7120-1151Insulated Sheath. YASAKI 7120-1151
-
WAKE_F710000421 Female Terminal. YASAKI 7115-1050-02Female Terminal. YASAKI 7115-1050-02
-
WAKE_M278001008 Insulated Sheath. YASAKI 7120-8013Insulated Sheath. YASAKI 7120-8013
-
WAKE_M278002261 Female Terminal. YASAKI 7113-1020-02Female Terminal. YASAKI 7113-1020-02
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System - All Models
- 01- Crankcase - 1000R EFI (Except XMR)
- 01- Crankcase - 1000R EFI (XMR)
- 01- Crankcase - 570 EFI
- 01- Crankcase - 850 EFI
- 01- Crankshaft and Pistons - 570 EFI
- 01- Crankshaft, Piston and Cylinder - 1000R EFI
- 01- Crankshaft, Piston and Cylinder - 850 EFI
- 01- Cylinder Head, Front - 1000R EFI
- 01- Cylinder Head, Front - 570 EFI
- 01- Cylinder Head, Front - 850 EFI
- 01- Cylinder Head, Rear - 1000R EFI
- 01- Cylinder Head, Rear - 570 EFI
- 01- Cylinder Head, Rear - 850 EFI
- 01- Engine And Engine Support - Except XMR
- 01- Engine And Engine Support - XMR
- 01- Engine Cooling - 1000R EFI
- 01- Engine Cooling - 570 EFI
- 01- Engine Cooling - 850 EFI
- 01- Engine Lubrication - 1000R EFI
- 01- Engine Lubrication - 570 EFI
- 01- Engine Lubrication - 850 EFI
- 01- Exhaust System - All Models
- 01- Gear Box and Components - 570 EFI
- 01- Gear Box and Components - 850 EFI Except XMR
- 01- Gear Box and Components - Renegade STD-XXC 1000R EFI
- 01- Gear Box and Components - Renegade XMR 1000R EFI
- 01- Gear Box Assy - 570 EFI
- 01- Gear Box Assy - 850 EFI
- 01- Gear Box Assy - Renegade STD-XXC 1000R EFI
- 01- Gear Box Assy - Renegade XMR 1000R EFI
- 01- Gear Box Output Shaft - 570 EFI
- 01- Gear Box Output Shaft - 850 EFI
- 01- Gear Box Output Shaft - Renegade STD-XXC 1000R EFI
- 01- Gear Box Output Shaft - Renegade XMR 1000R EFI
- 02- Air Intake Manifold and Throttle Body - 1000R EFI
- 02- Air Intake Manifold and Throttle Body - 570 EFI
- 02- Air Intake Manifold and Throttle Body - 850 EFI
- 02- Air Intake Silencer - All Models
- 02- Fuel System - All Models
- 03- Magneto and Electric Starter - 1000R EFI (Renegade)_2
- 03- Magneto and Electric Starter - 570 EFI (Renegade)
- 03- Magneto and Electric Starter - 850 EFI (Renegade)
- 05- Transmission - 1000R EFI (Renegade)
- 05- Transmission - 570 EFI
- 05- Transmission - 850 EFI (Renegade)
- 06- Brakes - All Models
- 07- Drive System, Front - All Models
- 07- Front Suspension - All Models
- 07- Steering - All Models
- 08- Drive Shaft - 1000R EFI
- 08- Drive Shaft - 570 EFI
- 08- Drive Shaft - 850 EFI
- 08- Drive, Rear Renegade - 1000R
- 08- Drive, Rear Renegade - 570
- 08- Drive, Rear Renegade - 850
- 08- Drive, Rear Renegade - Rear Differential - Except Package XMR 1000R
- 08- Drive, Rear Renegade - Rear Differential - Package XMR 1000R
- 08- Rear Suspension - All Models
- 09- Body And Accessories - All Models
- 09- Decals - All Models
- 09- Frame - All Models
- 09- Rear Cargo Box - All Models
- 09- Seat - All Models
- 10- Electrical Harness - Europe 710004680
- 10- Electrical Harness - Main 710005005 Europe
- • 10- Electrical Harness - Main 710005036 Except Europe
- 10- Electrical System - All Models
- 10- Engine Harness and Electronic Module - 1000R EFI (Renegade)_2
- 10- Engine Harness and Electronic Module - 570 EFI (Renegade)
- 10- Engine Harness and Electronic Module - 850 EFI (Renegade)
