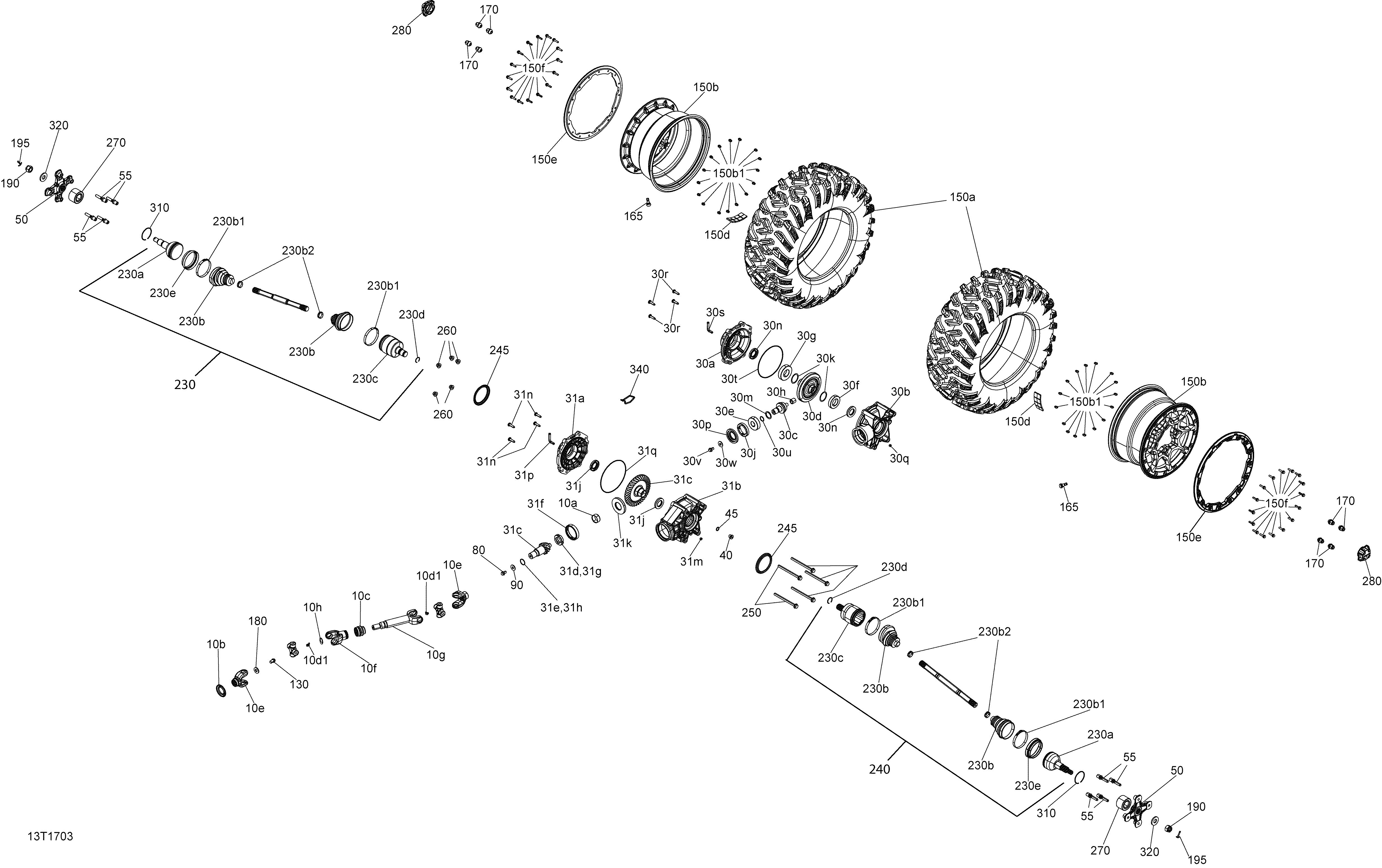

08- Drive, Rear Renegade - 570 для BRP Renegade - 2017
-
№АртикулНазвание
-
10703500986 Shaft Ass'y Kit. Except Package XMR. Includes 10 to 10fShaft Ass'y Kit. Except Package XMR. Includes 10 to 10f
-
10703500990 Shaft Ass'y Kit. Package XMR. Includes 10 to 10fShaft Ass'y Kit. Package XMR. Includes 10 to 10f
-
10a715900118 Rubber BootRubber Boot
-
10b715900326 Universal Joint. Except Package XMR. Includes 10b to 10cUniversal Joint. Except Package XMR. Includes 10b to 10c
-
10b703500846 Universal Joint Ass'y. Package XMR. Includes 10b to 10cUniversal Joint Ass'y. Package XMR. Includes 10b to 10c
-
10c715900295 Grease FittingGrease Fitting
-
10d715900499 Joint. Package XMRJoint. Package XMR
-
10e715900436 Joint. Package XMRJoint. Package XMR
-
10h715900438 Yoke. Except Package XMRYoke. Except Package XMR
-
10j715900500 Yoke. Except Package XMRYoke. Except Package XMR
-
15705501123 ProtectorProtector
-
20705400036 Wear RingWear Ring
-
30703501019 Final Drive Unit. Includes 30 to 30bFinal Drive Unit. Includes 30 to 30b
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50705501900 Wheel HubWheel Hub
-
55250300048 Wheel StudWheel Stud
-
80250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
90250200014 Flat Washer M10Flat Washer M10
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
150a705500820 Rear Tire. Packages XXC & STD - EuropeRear Tire. Packages XXC & STD - Europe
-
150a705500926 Tire. Packages XXC & STD - Excepte EuropeTire. Packages XXC & STD - Excepte Europe
-
150a705501836 Rear Tire. Package XMRRear Tire. Package XMR
-
150b705501853 Black Rim. Package STDBlack Rim. Package STD
-
150b705502244 Black Rim. Packages XMR & XXCBlack Rim. Packages XMR & XXC
-
150b1293450317 Insert. Packages XMR & XXCInsert. Packages XMR & XXC
-
150d705400193 Rim Valve With CapRim Valve With Cap
-
150e705501385 1/2 OZ Weight1/2 OZ Weight
-
150f705401763 Red Reinforcement Disk. Package XXC - Can-am RedRed Reinforcement Disk. Package XXC - Can-am Red
-
150f705401867 Black Reinforcement Disc. Package XXC - Timeless BlackBlack Reinforcement Disc. Package XXC - Timeless Black
-
150f705401763 Red Reinforcement Disk. Package XMRRed Reinforcement Disk. Package XMR
-
150g250000787 Hex. Flanged Screw M6 X 25. Packages XMR & XXCHex. Flanged Screw M6 X 25. Packages XMR & XXC
-
165293000110 Valve CapValve Cap
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705501486 RH Homocinetic Joint. Except Package XMRRH Homocinetic Joint. Except Package XMR
-
230705501848 RH CV Joint Ass'y. Package XMRRH CV Joint Ass'y. Package XMR
-
230a705501776 CV JointCV Joint
-
230b705501864 Boot Kit. Includes 230b to 230b2Boot Kit. Includes 230b to 230b2
-
230b1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230b2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230c705501780 Plunging JointPlunging Joint
-
230d705501781 CirclipCirclip
-
240705501485 LH Homocinetic Joint. Except Package XMRLH Homocinetic Joint. Except Package XMR
-
240705501847 LH CV Joint Ass'y. Package XMRLH CV Joint Ass'y. Package XMR
-
245705501124 Wear RingWear Ring
-
250250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
280705400928 Wheel CapWheel Cap
-
310293370019 CirclipCirclip
-
320250200049 Spring WasherSpring Washer
-
330a415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
-
340293750008 Tie-Rap 350 mmTie-Rap 350 mm
