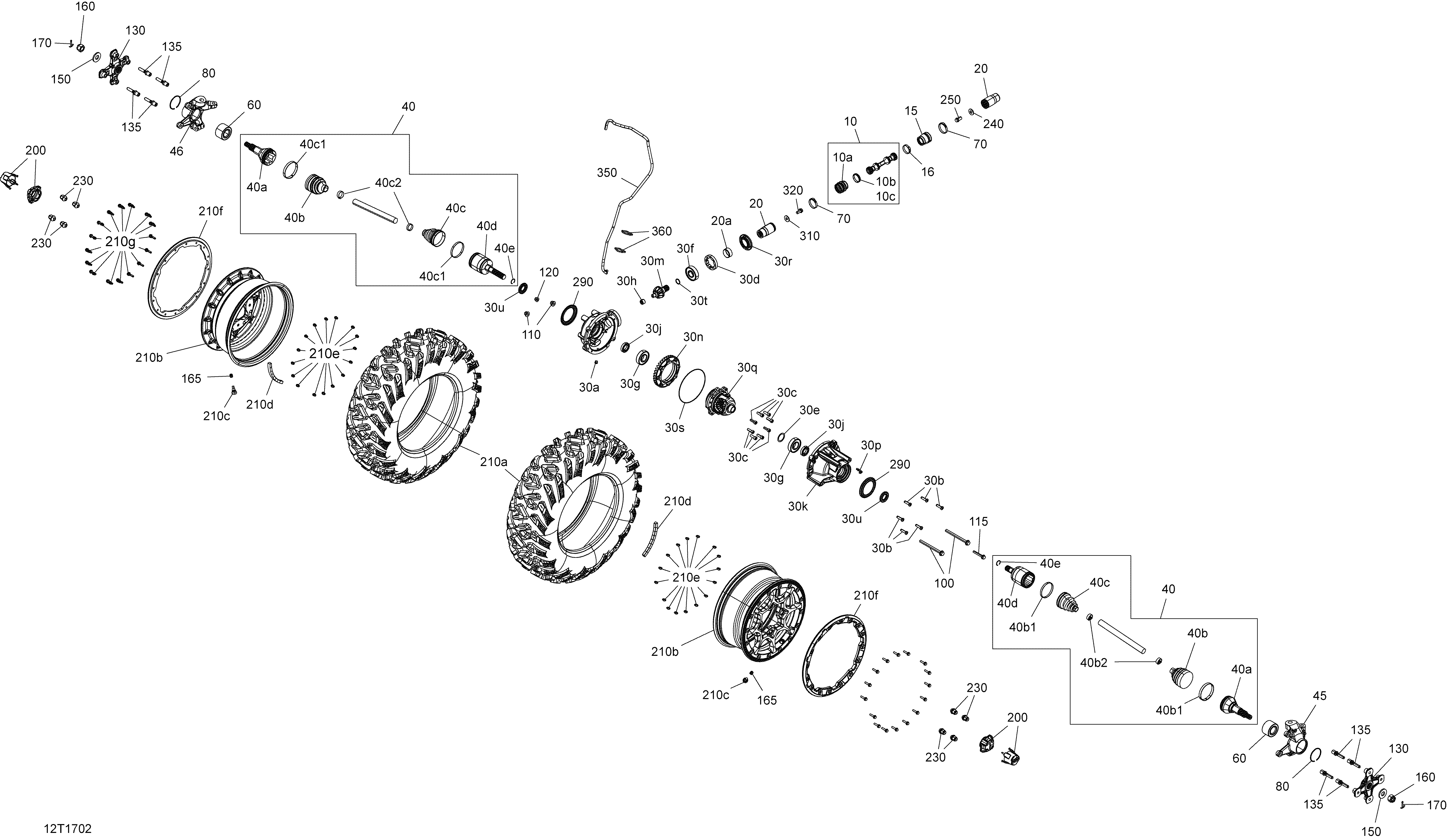

07- Drive System, Front - All Models для BRP Renegade - 2017
-
№АртикулНазвание
-
10705400913 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
10a715900118 Rubber BootRubber Boot
-
10b509000045 Oetiker Gear ClampOetiker Gear Clamp
-
10c293650138 Oetiker Gear ClampOetiker Gear Clamp
-
15705401093 Rubber BootRubber Boot
-
16293650199 Oetiker Gear ClampOetiker Gear Clamp
-
20>20a703500678 Front Bushing Shaft Kit. Includes 20 to 20aFront Bushing Shaft Kit. Includes 20 to 20a
-
20a705400036 Wear RingWear Ring
-
30>30y703500907 Front Differential. Model Without DPS. Includes 30 to 30yFront Differential. Model Without DPS. Includes 30 to 30y
-
30>30y703500908 Front Differential. Modele Avec DPS. Includes 30 to 30yFront Differential. Modele Avec DPS. Includes 30 to 30y
-
30a705501885 Drain PlugDrain Plug
-
30b705401601 ScrewScrew
-
30c705401602 ScrewScrew
-
30d705401603 NutNut
-
30e705401604 ShimShim
-
30f705401605 Ball BearingBall Bearing
-
30g705401606 Ball BearingBall Bearing
-
30h705401607 Needle BearingNeedle Bearing
-
30j705401608 Ball BearingBall Bearing
-
30k705401610 Front CoverFront Cover
-
30m705401791 Pinion 10 TeethPinion 10 Teeth
-
30n705401612 Gear 36 TeethGear 36 Teeth
-
30p705401613 Vent ValveVent Valve
-
30q705401614 Differential. Model Without DPSDifferential. Model Without DPS
-
30q705401506 Differential. Modele Avec DPSDifferential. Modele Avec DPS
-
30r705401615 Oil SealOil Seal
-
30s705401616 SealSeal
-
30t705401617 O'RingO'Ring
-
30u705401618 GasketGasket
-
30v705401769 ShimShim
-
30w705401770 ShimShim
-
30x250200014 Flat Washer M10Flat Washer M10
-
30y250000847 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
40>40e705401946 RH Homocinetic Joint. Engine 570 Except Package XMR. Includes 40 to 40eRH Homocinetic Joint. Engine 570 Except Package XMR. Includes 40 to 40e
-
40>40e705401945 LH Homocinetic Joint. Engine 570 Except Package XMR. Includes 40 to 40eLH Homocinetic Joint. Engine 570 Except Package XMR. Includes 40 to 40e
-
40>40e705401944 RH Homocinetic Joint. Engine 850, 1000 Except Package XMR. Includes 40 to 40eRH Homocinetic Joint. Engine 850, 1000 Except Package XMR. Includes 40 to 40e
-
40>40e705401943 LH Homocinetic Joint. Engine 850, 1000 Except Package XMR. Includes 40 to 40eLH Homocinetic Joint. Engine 850, 1000 Except Package XMR. Includes 40 to 40e
-
40>40e705401944 RH Homocinetic Joint. Package XMR, Engine 570. Includes 40 to 40eRH Homocinetic Joint. Package XMR, Engine 570. Includes 40 to 40e
-
40>40e705401943 LH Homocinetic Joint. Package XMR, Engine 570. Includes 40 to 40eLH Homocinetic Joint. Package XMR, Engine 570. Includes 40 to 40e
-
40>40e705401948 RH Homocinetic Joint. Package XMR, Engine 1000R. Includes 40 to 40eRH Homocinetic Joint. Package XMR, Engine 1000R. Includes 40 to 40e
-
40>40e705401947 LH Homocinetic Joint. Package XMR, Engine 1000R. Includes 40 to 40eLH Homocinetic Joint. Package XMR, Engine 1000R. Includes 40 to 40e
-
40a715900297 CV Joint. Engine 570 Except Package XMRCV Joint. Engine 570 Except Package XMR
-
40a715900297 CV Joint. Engine 570 Except Package XMRCV Joint. Engine 570 Except Package XMR
-
40a705401344 CV Joint. Engine 850, 1000 Except Package XMRCV Joint. Engine 850, 1000 Except Package XMR
-
40a705401344 CV Joint. Engine 850, 1000 Except Package XMRCV Joint. Engine 850, 1000 Except Package XMR
-
40a705401344 CV Joint. Package XMR, Engine 570CV Joint. Package XMR, Engine 570
-
40a705401344 CV Joint. Package XMR, Engine 570CV Joint. Package XMR, Engine 570
-
40a705401407 CV Joint. Package XMR, Engine 1000RCV Joint. Package XMR, Engine 1000R
-
40a705401407 CV Joint. Package XMR, Engine 1000RCV Joint. Package XMR, Engine 1000R
-
40b715900298 CV Boot Kit, Wheel Side. Engine 570 Except Package XMRCV Boot Kit, Wheel Side. Engine 570 Except Package XMR
-
40b705401345 Boot Kit, Wheel Side. Engine 850, 1000 Except Package XMRBoot Kit, Wheel Side. Engine 850, 1000 Except Package XMR
-
40b705401345 Boot Kit, Wheel Side. Package XMR, Engine 570Boot Kit, Wheel Side. Package XMR, Engine 570
-
40b705401354 Boot Kit, Wheel Side. Package XMR, Engine 1000RBoot Kit, Wheel Side. Package XMR, Engine 1000R
-
40b1715900262 Oetiker Clamp, Large. Engine 570 Except Package XMROetiker Clamp, Large. Engine 570 Except Package XMR
-
40b1715900282 Oetiker Clamp, Large. Engine 850, 1000 Except Package XMROetiker Clamp, Large. Engine 850, 1000 Except Package XMR
-
40b1715900282 Oetiker Clamp, Large. Package XMR, Engine 570Oetiker Clamp, Large. Package XMR, Engine 570
-
40b1715900260 Oetiker Clamp, Large. Package XMR, Engine 1000ROetiker Clamp, Large. Package XMR, Engine 1000R
-
40b2715900317 Oetiker Clamp, Small. Engine 570 Except Package XMROetiker Clamp, Small. Engine 570 Except Package XMR
-
40b2715900283 Oetiker Clamp, Small. Engine 850, 1000 Except Package XMROetiker Clamp, Small. Engine 850, 1000 Except Package XMR
-
40b2715900283 Oetiker Clamp, Small. Package XMR, Engine 570Oetiker Clamp, Small. Package XMR, Engine 570
-
40b2715900261 Oetiker Clamp, Small. Package XMR, Engine 1000ROetiker Clamp, Small. Package XMR, Engine 1000R
-
40c715900299 CV Boot Kit, Differential Side. Engine 570 Except Package XMRCV Boot Kit, Differential Side. Engine 570 Except Package XMR
-
40c705401346 Boot Kit, Differential Side. Engine 850, 1000 Except Package XMRBoot Kit, Differential Side. Engine 850, 1000 Except Package XMR
-
40c705401346 Boot Kit, Differential Side. Package XMR, Engine 570Boot Kit, Differential Side. Package XMR, Engine 570
-
40c705401355 Boot Kit, Differential Side. Package XMR, Engine 1000RBoot Kit, Differential Side. Package XMR, Engine 1000R
-
40c1715900318 Oetiker Clamp, Large. Engine 570 Except Package XMROetiker Clamp, Large. Engine 570 Except Package XMR
-
40c1715900284 Oetiker Clamp, Large. Engine 850, 1000 Except Package XMROetiker Clamp, Large. Engine 850, 1000 Except Package XMR
-
40c1715900284 Oetiker Clamp, Large. Package XMR, Engine 570Oetiker Clamp, Large. Package XMR, Engine 570
-
40c1715900261 Oetiker Clamp, Small. Package XMR, Engine 1000ROetiker Clamp, Small. Package XMR, Engine 1000R
-
40c2715900317 Oetiker Clamp, Small. Engine 570 Except Package XMROetiker Clamp, Small. Engine 570 Except Package XMR
-
40c2715900261 Oetiker Clamp, Small. Engine 850, 1000 Except Package XMROetiker Clamp, Small. Engine 850, 1000 Except Package XMR
-
40c2715900261 Oetiker Clamp, Small. Package XMR, Engine 570Oetiker Clamp, Small. Package XMR, Engine 570
-
40c2715900262 Oetiker Clamp, Large. Package XMR, Engine 1000ROetiker Clamp, Large. Package XMR, Engine 1000R
-
40d715900300 RH Plunging CV Joint. Engine 570 Except Package XMRRH Plunging CV Joint. Engine 570 Except Package XMR
-
40d715900301 LH Plunging CV Joint. Engine 570 Except Package XMRLH Plunging CV Joint. Engine 570 Except Package XMR
-
40d705401348 RH Plunging Joint. Engine 850, 1000 Except Package XMRRH Plunging Joint. Engine 850, 1000 Except Package XMR
-
40d705401350 LH Plunging Joint. Engine 850, 1000 Except Package XMRLH Plunging Joint. Engine 850, 1000 Except Package XMR
-
40d705401348 RH Plunging Joint. Package XMR, Engine 570RH Plunging Joint. Package XMR, Engine 570
-
40d705401350 LH Plunging Joint. Package XMR, Engine 570LH Plunging Joint. Package XMR, Engine 570
-
40d715900395 RH Plunging CV Joint. Package XMR, Engine 1000RRH Plunging CV Joint. Package XMR, Engine 1000R
-
40d715900396 LH Plunging CV Joint. Package XMR, Engine 1000RLH Plunging CV Joint. Package XMR, Engine 1000R
-
40e705401349 Circlip JointCirclip Joint
-
45705401290 LH KnuckleLH Knuckle
-
46705401291 RH KnuckleRH Knuckle
-
60293350040 Cone BearingCone Bearing
-
70293650138 Oetiker Gear ClampOetiker Gear Clamp
-
80293370019 CirclipCirclip
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
110233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
115207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
120233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
130705501900 Wheel HubWheel Hub
-
135250300048 Wheel StudWheel Stud
-
150250200049 Spring WasherSpring Washer
-
160250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
165293000110 Valve CapValve Cap
-
170250400071 Cotter PinCotter Pin
-
200705400928 Wheel CapWheel Cap
-
210a705400475 Front Tire. Europe. CARLISLE 598104 (AD-9748)Front Tire. Europe. CARLISLE 598104 (AD-9748)
-
210a705400600 Front Tire. Package STD Except Europe. CARLISLE 532070 (AD-9752)Front Tire. Package STD Except Europe. CARLISLE 532070 (AD-9752)
-
210a705401391 Front Tire. Package XMR, Engine 570Front Tire. Package XMR, Engine 570
-
210a705400962 Tire. Package XMR, Engine 1000R. CARLISLE 560524 (PD-560524-2)Tire. Package XMR, Engine 1000R. CARLISLE 560524 (PD-560524-2)
-
210a705400600 Front Tire. Package XXC Except EuropeFront Tire. Package XXC Except Europe
-
210b705401417 Black Front Rim. Package STDBlack Front Rim. Package STD
-
210b705401678 Black Front Rim. Package XXC, XMR, Engine 570Black Front Rim. Package XXC, XMR, Engine 570
-
210b705502237 Black Rim. Package XMR, Engine 1000RBlack Rim. Package XMR, Engine 1000R
-
210e293450317 Insert. Except Package STDInsert. Except Package STD
-
210f705401702 Blue Reinforcement Disk. Package XMR, Model Gulfstream BlueBlue Reinforcement Disk. Package XMR, Model Gulfstream Blue
-
210f705401837 Red Reinforcement Disk. Package XMR, Model RedRed Reinforcement Disk. Package XMR, Model Red
-
210f705401763 Red Reinforcement Disk. Package XMR, Model Red/White/BlackRed Reinforcement Disk. Package XMR, Model Red/White/Black
-
210f705401763 Red Reinforcement Disk. Package XXC, Model Red/White/Black EuropeRed Reinforcement Disk. Package XXC, Model Red/White/Black Europe
-
210f705401837 Red Reinforcement Disk. Package XXC, Model Red/White/Black Except EuropeRed Reinforcement Disk. Package XXC, Model Red/White/Black Except Europe
-
210f705401867 Black Reinforcement Disc. Package XXC, Model BlackBlack Reinforcement Disc. Package XXC, Model Black
-
210g250000787 Hex. Flanged Screw M6 X 25. Except Package STDHex. Flanged Screw M6 X 25. Except Package STD
-
230250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
240250200102 Flat Washer M12Flat Washer M12
-
250250000540 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
290705400780 Wear Sleeve. Engine 850, 1000 Except Package XMRWear Sleeve. Engine 850, 1000 Except Package XMR
-
290705400780 Wear Sleeve. Package XMR, Engine 570Wear Sleeve. Package XMR, Engine 570
-
310250200014 Flat Washer M10Flat Washer M10
-
320250000847 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
350415080200 Hose, PolyurethaneHose, Polyurethane
-
360414115200 Tie-Rap 180 mmTie-Rap 180 mm
