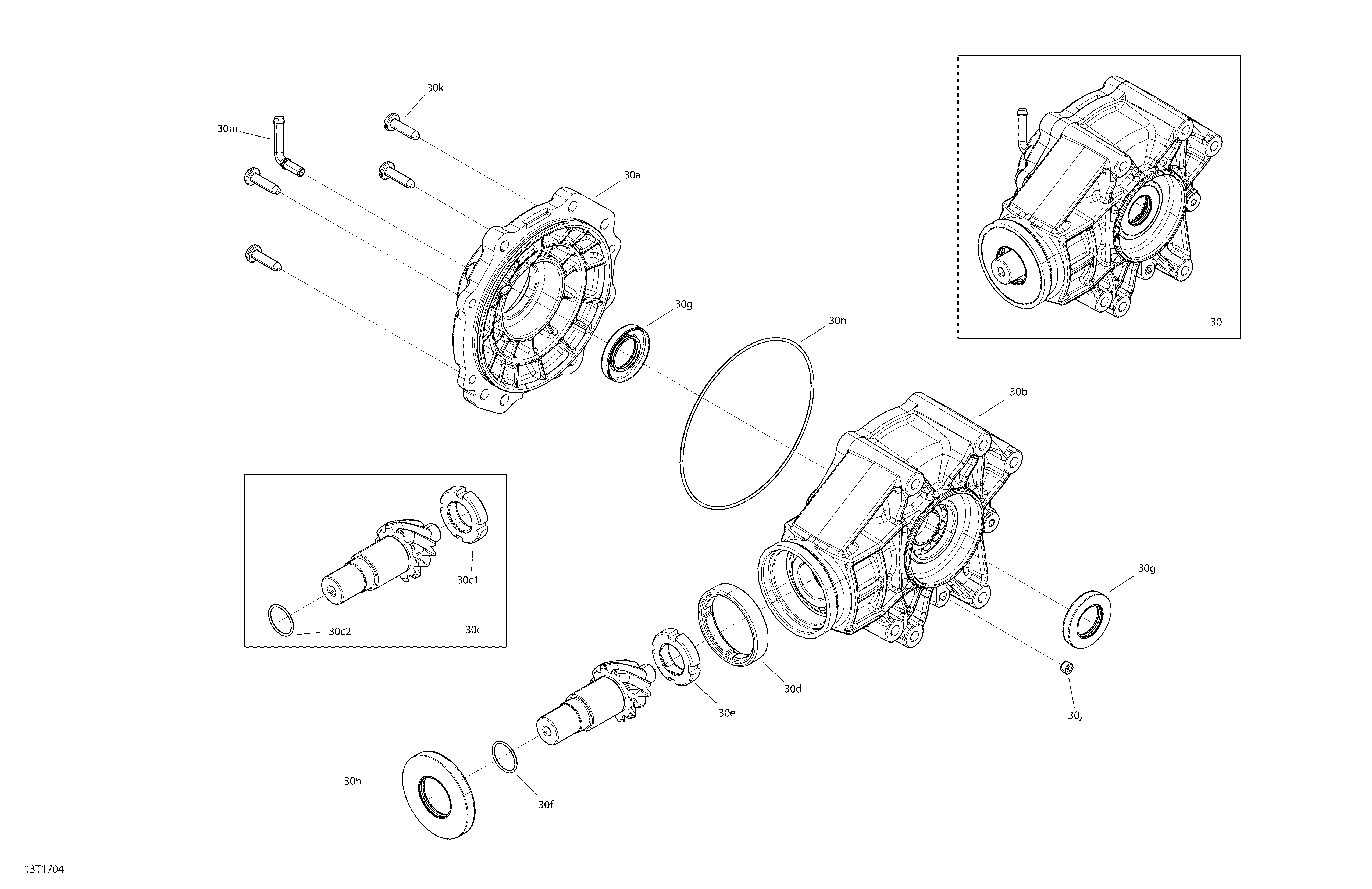

08- Drive, Rear Renegade - Rear Differential - Package XMR 1000R для BRP Renegade - 2017
-
№АртикулНазвание
-
30705502178 Rear Differential Ass'y. Package XMR 1000R. Includes 30 to 30nRear Differential Ass'y. Package XMR 1000R. Includes 30 to 30n
-
30a705502547 Rear Cover. Package XMR 1000RRear Cover. Package XMR 1000R
-
30b705502180 Rear Pinion Cover. Package XMR 1000RRear Pinion Cover. Package XMR 1000R
-
30c703500870 Differential Gear Kit. Package XMR 1000R. Includes 30c to 30c2Differential Gear Kit. Package XMR 1000R. Includes 30c to 30c2
-
30c1705501550 Nut. Package XMR 1000RNut. Package XMR 1000R
-
30c2705501554 O-Ring. Package XMR 1000RO-Ring. Package XMR 1000R
-
30d705501549 Nut. Package XMR 1000RNut. Package XMR 1000R
-
30e705501550 Nut. Package XMR 1000RNut. Package XMR 1000R
-
30f705501554 O-Ring. Package XMR 1000RO-Ring. Package XMR 1000R
-
30g705501556 Oil Seal. Package XMR 1000ROil Seal. Package XMR 1000R
-
30h705501557 Oil Seal. Package XMR 1000ROil Seal. Package XMR 1000R
-
30j705501724 Plug Drain. Package XMR 1000RPlug Drain. Package XMR 1000R
-
30k705502063 Screw. Package XMR 1000RScrew. Package XMR 1000R
-
30m705501584 Breather Tube. Package XMR 1000RBreather Tube. Package XMR 1000R
-
30n705501711 O-Ring. Package XMR 1000RO-Ring. Package XMR 1000R
