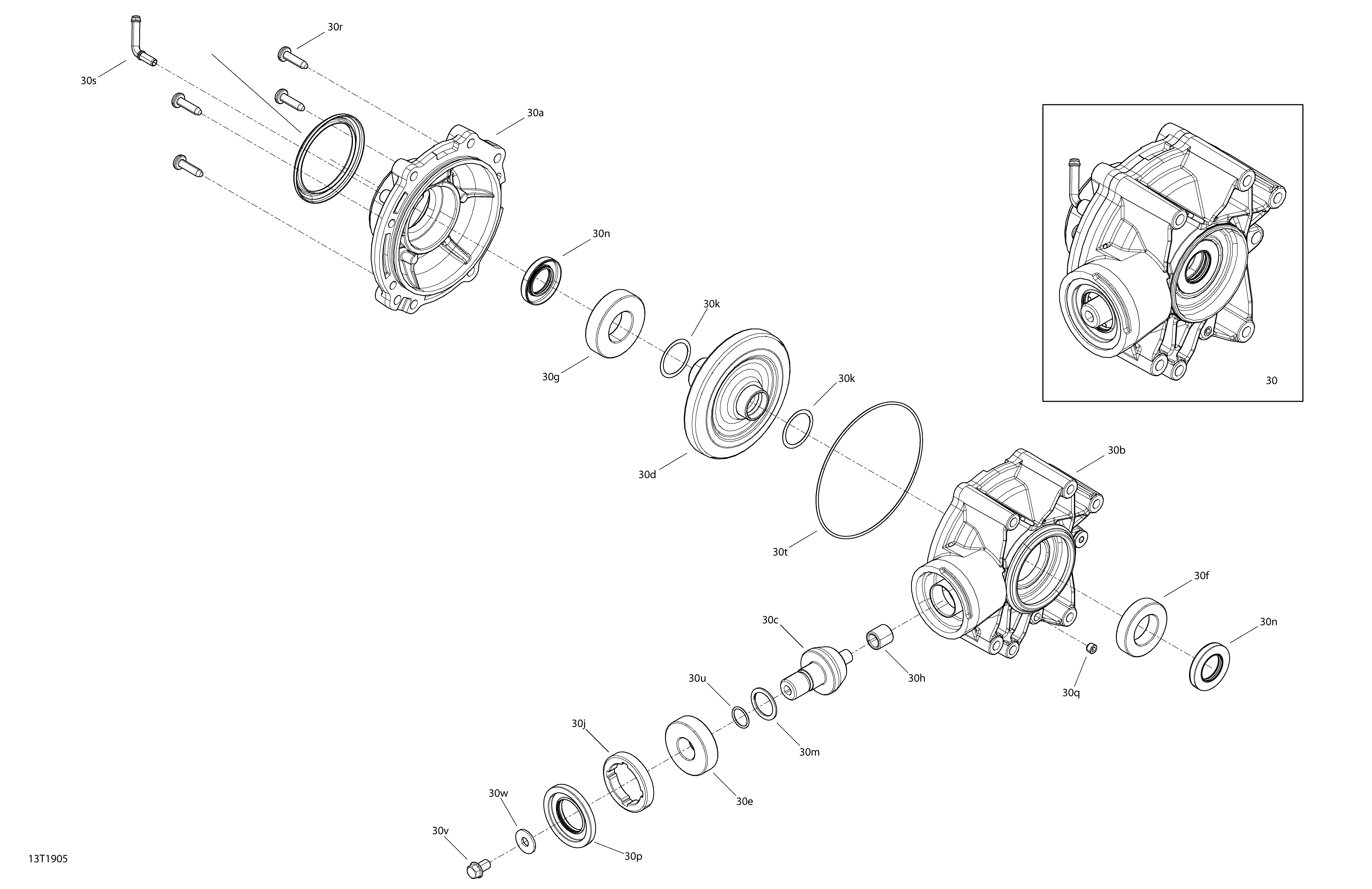

08- Drive, Rear Renegade - Rear Differential - Except Package XMR 1000R для BRP Renegade - 2017
-
№АртикулНазвание
-
30703501019 Final Drive Unit. Except Package XMR 1000R. Includes 30 to 30wFinal Drive Unit. Except Package XMR 1000R. Includes 30 to 30w
-
30a705502051 Rear Cover. Except Package XMR 1000RRear Cover. Except Package XMR 1000R
-
30b705502052 Rear Pinion Cover. Except Package XMR 1000RRear Pinion Cover. Except Package XMR 1000R
-
30c705502053 Pinion 10 Teeth. Except Package XMR 1000RPinion 10 Teeth. Except Package XMR 1000R
-
30d705502054 Gear 36 Teeth. Except Package XMR 1000RGear 36 Teeth. Except Package XMR 1000R
-
30e705502055 Ball Bearing. Except Package XMR 1000RBall Bearing. Except Package XMR 1000R
-
30f705502056 Ball Bearing. Except Package XMR 1000RBall Bearing. Except Package XMR 1000R
-
30g705502057 Ball Bearing. Except Package XMR 1000RBall Bearing. Except Package XMR 1000R
-
30h705502058 Needle Bearing. Except Package XMR 1000RNeedle Bearing. Except Package XMR 1000R
-
30j705502059 Nut. Except Package XMR 1000RNut. Except Package XMR 1000R
-
30k705502060 Differential Shim 0.02 mm. Except Package XMR 1000RDifferential Shim 0.02 mm. Except Package XMR 1000R
-
30m705502061 Pinion Gear Shim 1.67 mm. Except Package XMR 1000RPinion Gear Shim 1.67 mm. Except Package XMR 1000R
-
30n705501556 Oil Seal. Except Package XMR 1000ROil Seal. Except Package XMR 1000R
-
30p705502062 Oil Seal. Except Package XMR 1000ROil Seal. Except Package XMR 1000R
-
30q705501724 Plug Drain. Except Package XMR 1000RPlug Drain. Except Package XMR 1000R
-
30r705502063 Screw. Except Package XMR 1000RScrew. Except Package XMR 1000R
-
30s705501584 Breather Tube. Except Package XMR 1000RBreather Tube. Except Package XMR 1000R
-
30t705502064 Seal. Except Package XMR 1000RSeal. Except Package XMR 1000R
-
30u705502065 O-Ring. Except Package XMR 1000RO-Ring. Except Package XMR 1000R
-
30v250000615 Hex Flanged Screwv M10 X 16. Except Package XMR 1000RHex Flanged Screwv M10 X 16. Except Package XMR 1000R
-
30w250200014 Flat Washer M10. Except Package XMR 1000RFlat Washer M10. Except Package XMR 1000R
