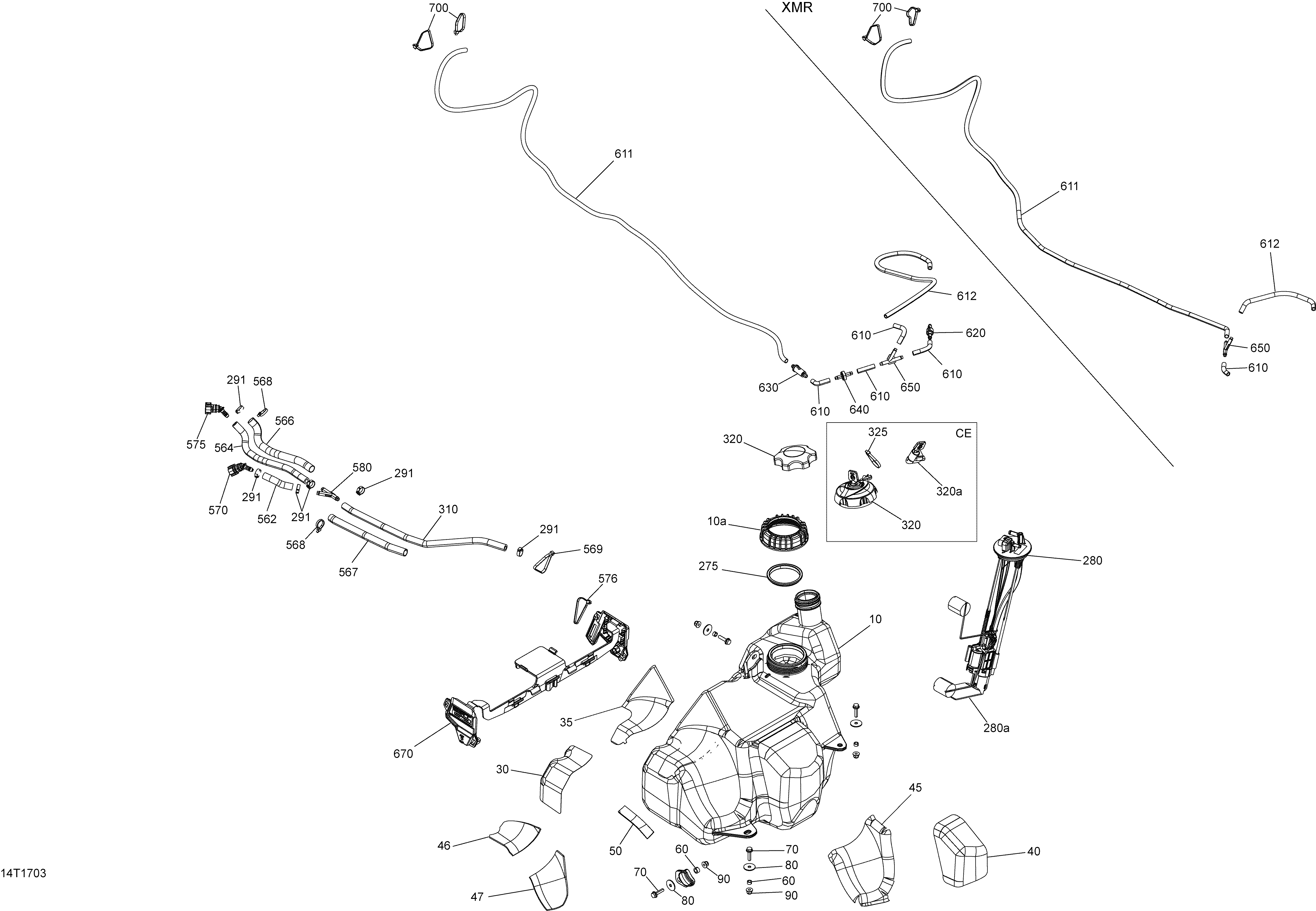

02- Fuel System - All Models для BRP Renegade - 2017
-
№АртикулНазвание
-
10>10a709000799 Fuel Tank Ass'y. Includes 10 to 10aFuel Tank Ass'y. Includes 10 to 10a
-
10a709000328 Fuel Pump Module NutFuel Pump Module Nut
-
30709000381 Heat Reflective SheetHeat Reflective Sheet
-
35709000387 Heat Reflective SheetHeat Reflective Sheet
-
40709000382 Heat Reflective SheetHeat Reflective Sheet
-
45709000388 Heat Reflective SheetHeat Reflective Sheet
-
46709000527 Heat shield. Engine 850, 1000Heat shield. Engine 850, 1000
-
47709000528 Heat shield. Engine 850, 1000Heat shield. Engine 850, 1000
-
50293830172 Rubber Pad. Engine 570Rubber Pad. Engine 570
-
60293900104 BushingBushing
-
70207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
80224060251 WasherWasher
-
90233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
275709000208 SealSeal
-
280>280a709000461 Fuel Pump. Engine 570. Includes 280 to 280aFuel Pump. Engine 570. Includes 280 to 280a
-
280>280a709000758 Fuel Pump. Engine 850, 1000. Includes 280 to 280aFuel Pump. Engine 850, 1000. Includes 280 to 280a
-
280a715900322 Prefilter Fuel Pump Kit. Engine 570Prefilter Fuel Pump Kit. Engine 570
-
280a709000389 Fuel Pre-Filter Kit. Engine 850, 1000Fuel Pre-Filter Kit. Engine 850, 1000
-
291293650047 Crimp ClampCrimp Clamp
-
310709000516 Fuel LineFuel Line
-
320513033025 Fuel Tank Cap. Except EuropeFuel Tank Cap. Except Europe
-
320>320a707001750 Lock Device Kit. Europe. Includes 320 to 320aLock Device Kit. Europe. Includes 320 to 320a
-
320a707000666 Lock. EuropeLock. Europe
-
325414115200 Tie-Rap 180 mm. EuropeTie-Rap 180 mm. Europe
-
562709000516 Fuel LineFuel Line
-
564709000516 Fuel LineFuel Line
-
566415080000 Tubing 16 mmTubing 16 mm
-
567415080000 Tubing 16 mmTubing 16 mm
-
568293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
569414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
570709000627 Quick Fitting 45° Ass'yQuick Fitting 45° Ass'y
-
575709000627 Quick Fitting 45° Ass'yQuick Fitting 45° Ass'y
-
576293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
580293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
610415080200 Hose, PolyurethaneHose, Polyurethane
-
611415080200 Hose, Polyurethane. Except Package XMRHose, Polyurethane. Except Package XMR
-
612415080200 Hose, PolyurethaneHose, Polyurethane
-
620513033469 Check ValveCheck Valve
-
630709000330 FilterFilter
-
640275500398 Check ValveCheck Valve
-
650293710059 Y-FittingY-Fitting
-
670709000359 Hose Support Ass'yHose Support Ass'y
-
700414115200 Tie-Rap 180 mmTie-Rap 180 mm
