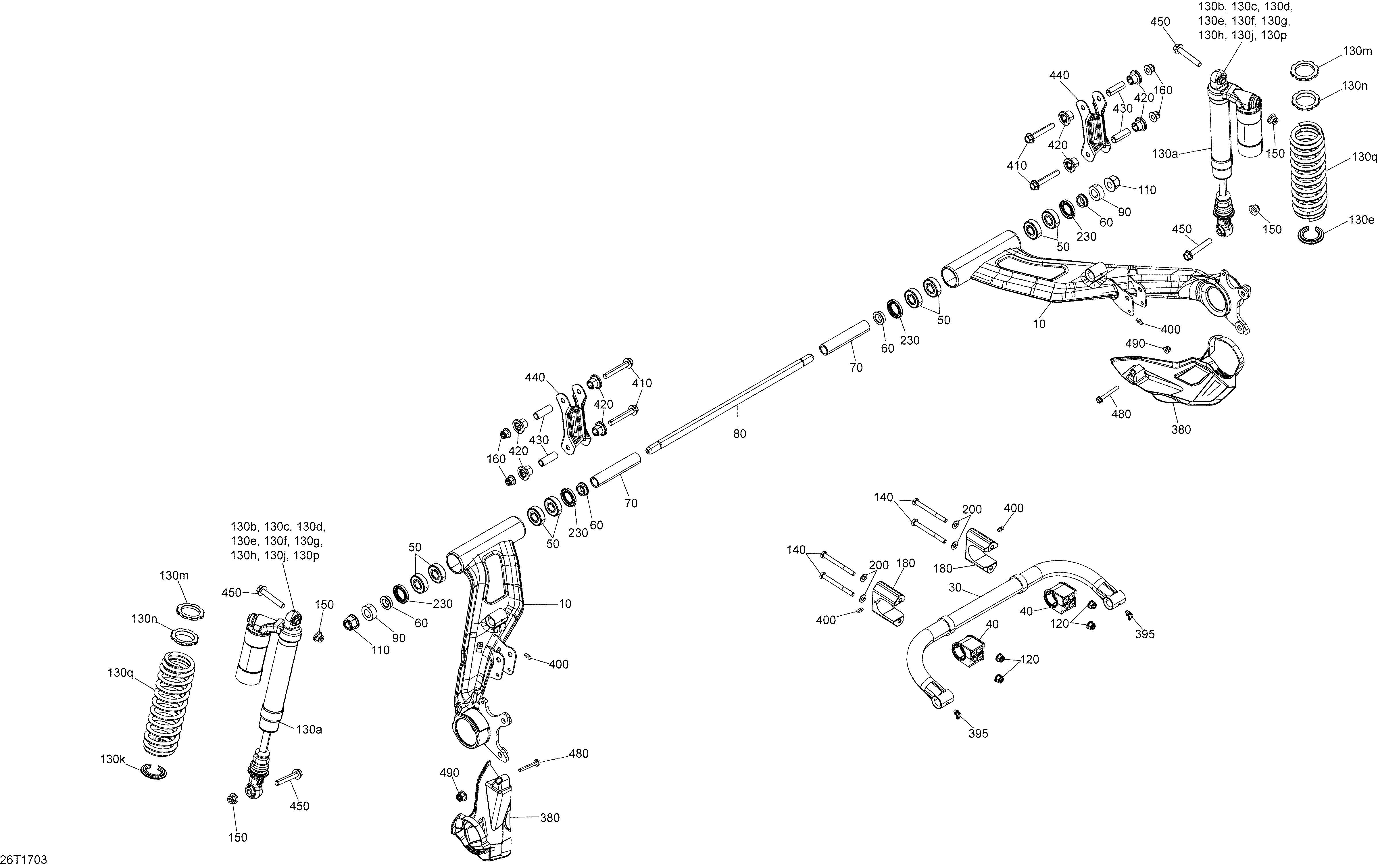

08- Rear Suspension - All Models для BRP Renegade - 2017
-
№АртикулНазвание
-
10706002414 Black LH Swing Arm. Package STDBlack LH Swing Arm. Package STD
-
10706002415 Black RH Swing Arm. Package STDBlack RH Swing Arm. Package STD
-
10706002414 Black LH Swing Arm. Package XXC Model BlackBlack LH Swing Arm. Package XXC Model Black
-
10706002415 Black RH Swing Arm. Package XXC Model BlackBlack RH Swing Arm. Package XXC Model Black
-
10706002414 Black LH Swing Arm. Package XMR Model BlueBlack LH Swing Arm. Package XMR Model Blue
-
10706002415 Black RH Swing Arm. Package XMR Model BlueBlack RH Swing Arm. Package XMR Model Blue
-
10706002634 Red LH Swing Arm. Package XXC Model RedRed LH Swing Arm. Package XXC Model Red
-
10706002635 Red RH Swing Arm. Package XXC Model RedRed RH Swing Arm. Package XXC Model Red
-
10706002634 Red LH Swing Arm. Package XMR Model RedRed LH Swing Arm. Package XMR Model Red
-
10706002635 Red RH Swing Arm. Package XMR Model RedRed RH Swing Arm. Package XMR Model Red
-
30706000988 SwaybarSwaybar
-
40706002246 CushionCushion
-
50706000826 Ball BearingBall Bearing
-
60706001282 SpacerSpacer
-
70706002259 EntretoiseEntretoise
-
80706001664 Axial Pivot M16Axial Pivot M16
-
90250200112 Flat Washer M17Flat Washer M17
-
110233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
120233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
130a706000958 Shock. Package STD, Engine 570Shock. Package STD, Engine 570
-
130a706001904 Rear Shock. Package STD, Engine 850, 1000Rear Shock. Package STD, Engine 850, 1000
-
130a706001904 Rear Shock. Package XMR, Engine 570Rear Shock. Package XMR, Engine 570
-
130a706001908 Rear Shock. Package XXCRear Shock. Package XXC
-
130a706002603 Rear Shock. Package XMR, Engine 1000RRear Shock. Package XMR, Engine 1000R
-
130b715900251 Spherical Bearing. Package XXCSpherical Bearing. Package XXC
-
130b715900336 Ball Journal. Package XMR, Engine 1000RBall Journal. Package XMR, Engine 1000R
-
130c715900209 O-Ring Bushing. Package XXCO-Ring Bushing. Package XXC
-
130d715900252 Retaining Ring. Package XXC, XMR, Engine 1000RRetaining Ring. Package XXC, XMR, Engine 1000R
-
130e706201585 Bushing Sleeve. Except Package STD, Engine 570Bushing Sleeve. Except Package STD, Engine 570
-
130f706201586 Bushing Sleeve. Except Package STD, Engine 570Bushing Sleeve. Except Package STD, Engine 570
-
130g715900210 Interior Bushing. Package XXCInterior Bushing. Package XXC
-
130h706201648 Bushing. Package XXC, XMR, Engine 1000RBushing. Package XXC, XMR, Engine 1000R
-
130j715900331 Protector. Package XMR, Engine 1000RProtector. Package XMR, Engine 1000R
-
130k503187500 Spring Guide. Package STD, Engine 570Spring Guide. Package STD, Engine 570
-
130m706200881 Spring Stopper. Package STD, Engine 570Spring Stopper. Package STD, Engine 570
-
130n505073625 Adjustment Cam. Package STD, Engine 570Adjustment Cam. Package STD, Engine 570
-
130p706200785 Cap. Package STD, Engine 570Cap. Package STD, Engine 570
-
130q706002583 Blue Spring. Package XMR, Model Gulfstream BlueBlue Spring. Package XMR, Model Gulfstream Blue
-
130q706002470 Red Spring. Package STD, Engine 570Red Spring. Package STD, Engine 570
-
130q706002582 Red Spring. Package STD, Engine 850, 1000Red Spring. Package STD, Engine 850, 1000
-
130q706002582 Red Spring. Package XMR, Engine 570Red Spring. Package XMR, Engine 570
-
130q706002584 Red Spring. Package XMR, Model RedRed Spring. Package XMR, Model Red
-
130q706002493 Red Spring. Package XXC, Model BlackRed Spring. Package XXC, Model Black
-
130q706002581 Red Spring. Package XXC, Model RedRed Spring. Package XXC, Model Red
-
140207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
150233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
160233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
180706001099 Bushing HolderBushing Holder
-
200234081430 Flat Washer M8Flat Washer M8
-
230293200144 SealSeal
-
380706002482 LH ProtectorLH Protector
-
380706002483 RH ProtectorRH Protector
-
395293550056 Grease Fitting 90°Grease Fitting 90°
-
400250000315 Grease FittingGrease Fitting
-
410207606536 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
420706200181 BushingBushing
-
430706201587 SleeveSleeve
-
440706001020 Swaybar LinkageSwaybar Linkage
-
450207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
480250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
490233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
