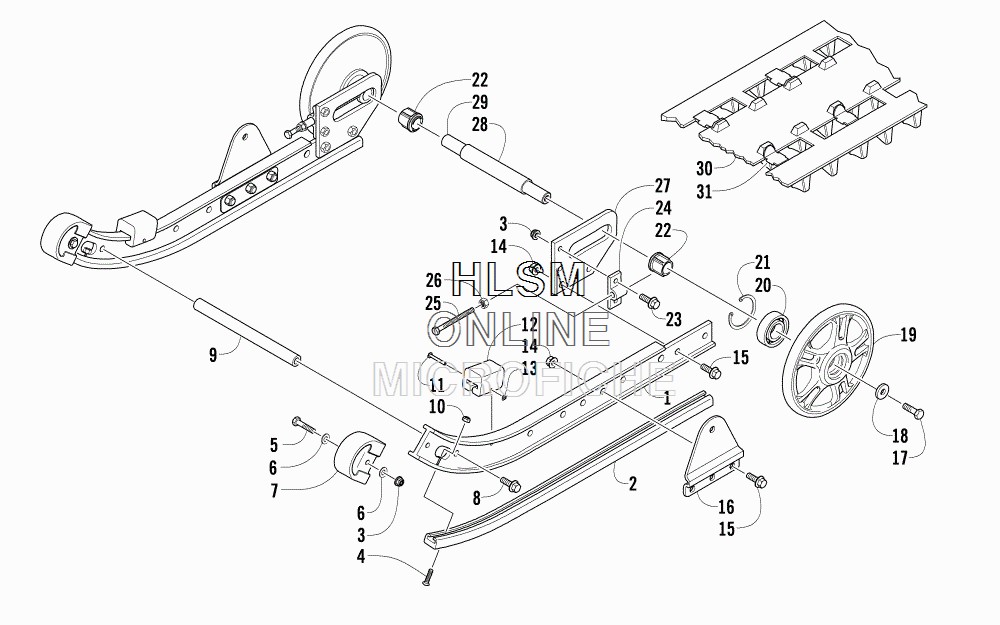

SLIDE RAIL- IDLER WHEELS- AND TRACK ASSEMBLY для Arctic Cat ZR 120 (BLACK) [S2015ZRAAAUSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2704-442 COMPLETE SKID FRAME ASSEMBLY
    COMPLETE SKID FRAME ASSEMBLY
  • 1
    1604-705 RAIL, FORMED
    RAIL, FORMED
  • 2
    1604-568 WEARSTRIP (BLACK)
    WEARSTRIP (BLACK)
  • 3
    8047-366 NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
    NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
  • 4
    0123-859 SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & Y
    SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & Y
  • 5
    8002-043 SCREW,CAP-HH 1/4-20 X1.125 G5 Z & Y
    SCREW,CAP-HH 1/4-20 X1.125 G5 Z & Y
  • 6
    8050-217 WASHER,FLAT- 1/4 X .625 X .065 Z & Y
    WASHER,FLAT- 1/4 X .625 X .065 Z & Y
  • 7
    0604-231 NOSE PIECE, SLIDE RAIL - (BLACK)
    NOSE PIECE, SLIDE RAIL - (BLACK)
  • 8
    1623-566 SCREW,CAP-HFH 5/16-18 X0.875 G5 W/2353
    SCREW,CAP-HFH 5/16-18 X0.875 G5 W/2353
  • 9
    1604-566 AXLE, CROSS-BRACE
    AXLE, CROSS-BRACE
  • 10
    8041-366 NUT, HEX - THIN LOCK
    NUT, HEX - THIN LOCK
  • 11
    0123-767 RIVET, SOLID
    RIVET, SOLID
  • 12
    0104-631 PAD,SHOCK-RUBBER
    PAD,SHOCK-RUBBER
  • 13
    0423-090 NUT,PRESS ON (PUSHNUT)-1/8 STUD
    NUT,PRESS ON (PUSHNUT)-1/8 STUD
  • 14
    8047-426 NUT, HEX - FLANGE - NY LOCK
    NUT, HEX - FLANGE - NY LOCK
  • 15
    8020-131 SCREW,CAP-HFH 5/16-18 X0.875 G5 Z & Y
    SCREW,CAP-HFH 5/16-18 X0.875 G5 Z & Y
  • 16
    0704-896 BRACKET, SUPPORT - FRONT ARM - PAINTED (BLACK)
    BRACKET, SUPPORT - FRONT ARM - PAINTED (BLACK)
  • 17
    1623-427 SCREW,CAP-HFH 3/8-16X1.000 W/2353
    SCREW,CAP-HFH 3/8-16X1.000 W/2353
  • 18
    0623-664 WASHER,FLAT 1.00X.390X.164 Z & Y
    WASHER,FLAT 1.00X.390X.164 Z & Y
  • 19
    3604-299 WHEEL, IDLER - WHITE (INC. 20-21)
    WHEEL, IDLER - WHITE (INC. 20-21)
  • 20
    3604-033 ...BEARING,WHL-NSK CHINA 6004-W/ENS GREASE
    ...BEARING,WHL-NSK CHINA 6004-W/ENS GREASE
  • 21
    0623-946 ...RING,INTERNAL RETAINING-#165
    ...RING,INTERNAL RETAINING-#165
  • 22
    3604-503 SPACER, REAR WHEEL-OUTER
    SPACER, REAR WHEEL-OUTER
  • 23
    8020-040 SCREW,CAP-HFH 1/4-20 X 0.750 Z & Y
    SCREW,CAP-HFH 1/4-20 X 0.750 Z & Y
  • 24
    0604-206 ADJUSTER, TRACK
    ADJUSTER, TRACK
  • 25
    0124-310 SCREW, CAP HHCS 3/8-16X4.0 THREADED GR5 Z & Y
    SCREW, CAP HHCS 3/8-16X4.0 THREADED GR5 Z & Y
  • 26
    8042-486 NUT,3/8-16 HEX-REG-GR5 Z & Y
    NUT,3/8-16 HEX-REG-GR5 Z & Y
  • 27
    3604-543 HOUSING, AXLE - REAR
    HOUSING, AXLE - REAR
  • 28
    3604-541 SPACER,REAR WHEEL- 5.41" LG
    SPACER,REAR WHEEL- 5.41" LG
  • 29
    3604-542 AXLE, REAR
    AXLE, REAR
  • 30
    2602-476 TRACK - 2.125 X 10.00 X 0.688 (INC. 31)
    TRACK - 2.125 X 10.00 X 0.688 (INC. 31)
  • 31
    1602-079 ...CLIP, GUIDE
    ...CLIP, GUIDE
