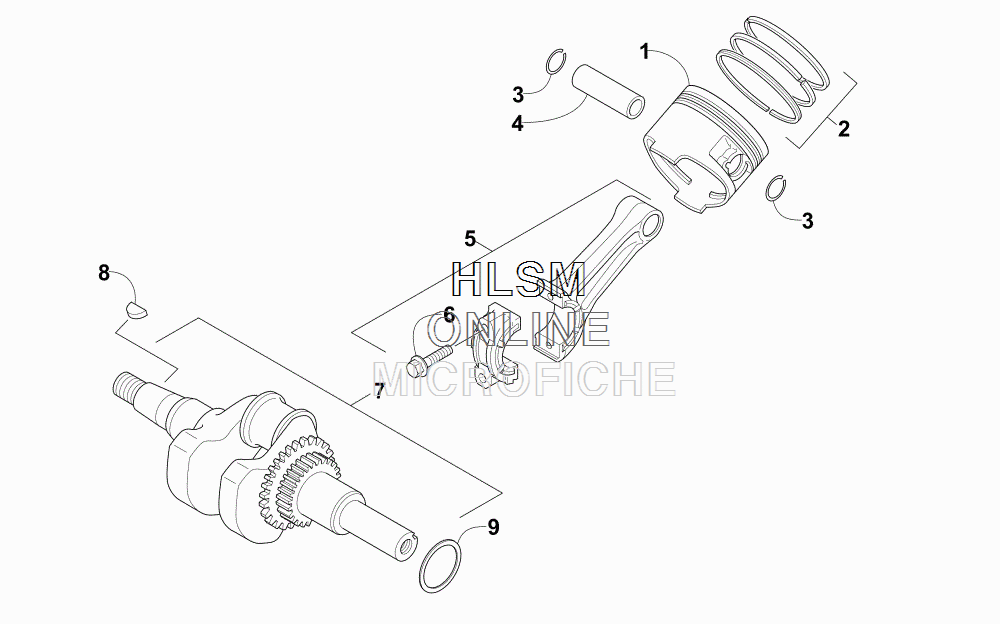

PISTON AND CRANKSHAFT ASSEMBLY для Arctic Cat ZR 120 (BLACK) [S2015ZRAAAUSB] - 2015 года выпуска
-
№АртикулНазвание
-
13020-013 PISTONPISTON
-
13020-015 PISTON, OVERSIZED (OPTIONAL) (0.25 MM)PISTON, OVERSIZED (OPTIONAL) (0.25 MM)
-
13020-016 PISTON, OVERSIZED (OPTIONAL) (0.50 MM)PISTON, OVERSIZED (OPTIONAL) (0.50 MM)
-
23020-010 RING, PISTON - SETRING, PISTON - SET
-
23020-011 RING, PISTON - SET - OVERSIZED (OPTIONAL) (0.25 MM)RING, PISTON - SET - OVERSIZED (OPTIONAL) (0.25 MM)
-
23020-012 RING, PISTON - SET - OVERSIZED (OPTIONAL) (0.50 MM)RING, PISTON - SET - OVERSIZED (OPTIONAL) (0.50 MM)
-
33020-115 CIRCLIPCIRCLIP
-
43020-014 PIN, PISTONPIN, PISTON
-
53020-031 ROD, CONNECTING - ASSEMBLY (INC. 6)ROD, CONNECTING - ASSEMBLY (INC. 6)
-
63020-032 ...B0LT, CONNECTING ROD...B0LT, CONNECTING ROD
-
73020-029 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
83020-098 KEY, WOODRUFFKEY, WOODRUFF
-
93020-030 SHIM, CRANKSHAFTSHIM, CRANKSHAFT
