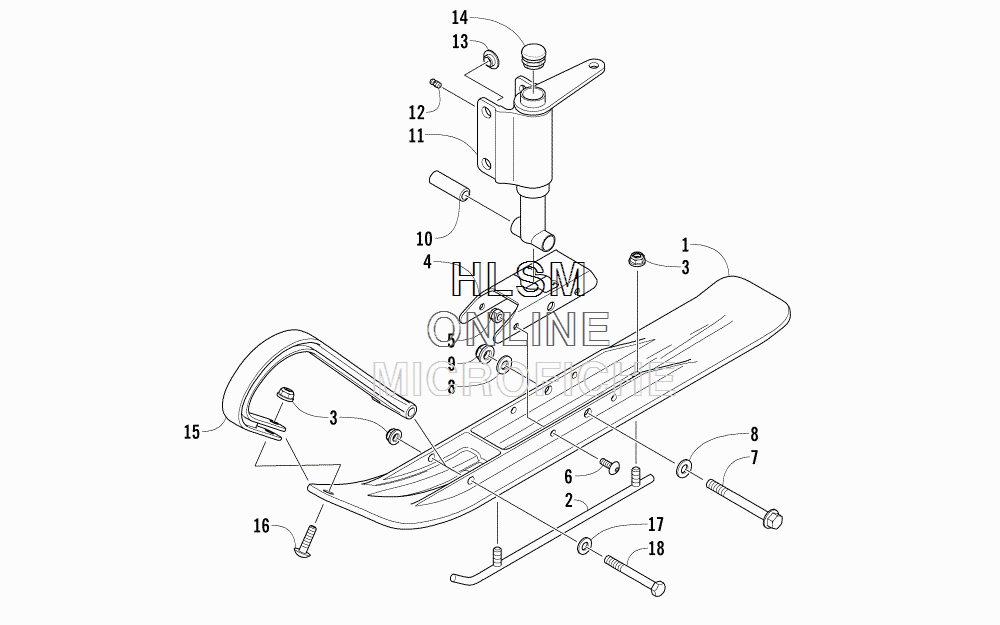

SKI AND SPINDLE ASSEMBLY для Arctic Cat ZR 120 (BLACK) [S2015ZRAAAUSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1603-593 SKI, PLASTIC (BLACK)
    SKI, PLASTIC (BLACK)
  • 2
    0703-698 WEARBAR SKAG-PTD (BLACK)
    WEARBAR SKAG-PTD (BLACK)
  • 3
    8047-426 NUT, HEX - FLANGE - NY LOCK
    NUT, HEX - FLANGE - NY LOCK
  • 4
    1703-184 SADDLE, SKI - PAINTED (BLACK)
    SADDLE, SKI - PAINTED (BLACK)
  • 5
    8047-366 NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
    NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
  • 6
    8017-580 SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z & Y
    SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z & Y
  • 7
    8020-232 SCREW,CAP-HFH 3/8-16 X 3.25 Z & Y
    SCREW,CAP-HFH 3/8-16 X 3.25 Z & Y
  • 8
    8050-277 WASHER,FLAT- 3/8 X 1.000 X .063 Z & Y
    WASHER,FLAT- 3/8 X 1.000 X .063 Z & Y
  • 9
    8047-486 NUT,HEX FLG-NY LOCK 3/8-16 GR F Z & Y
    NUT,HEX FLG-NY LOCK 3/8-16 GR F Z & Y
  • 10
    1603-365 AXLE
    AXLE
  • 11
    2703-977 SPINDLE (BLACK) (INC. 12-13)
    SPINDLE (BLACK) (INC. 12-13)
  • 12
    1623-845 ...FITTING, GREASE
    ...FITTING, GREASE
  • 13
    0603-647 ...INSERT, SPINDLE
    ...INSERT, SPINDLE
  • 14
    0623-831 CAP, SPINDLE
    CAP, SPINDLE
  • 15
    1603-594 HANDLE, SKI (BLACK)
    HANDLE, SKI (BLACK)
  • 16
    8017-672 SCREW,MACH-TSTRH 5/16-18 X 1.00 GR2 Z & Y
    SCREW,MACH-TSTRH 5/16-18 X 1.00 GR2 Z & Y
  • 17
    8050-247 WASHER,FLAT- 5/16 X .688 X .065 Z & Y
    WASHER,FLAT- 5/16 X .688 X .065 Z & Y
  • 18
    8002-141 SCREW,CAP-HH 5/16-18 X3.00-G5 Z & Y
    SCREW,CAP-HH 5/16-18 X3.00-G5 Z & Y
