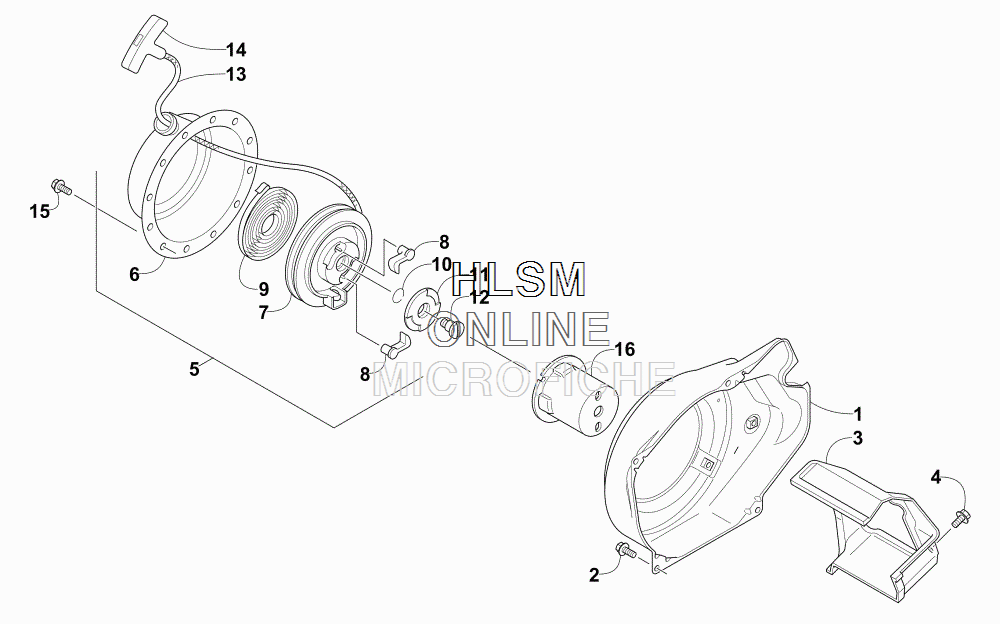

RECOIL STARTER AND AIR SHROUD ASSEMBLY для Arctic Cat ZR 120 (BLACK) [S2015ZRAAAUSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3020-051 COWLING, VENTILATION
    COWLING, VENTILATION
  • 2
    3020-120 SCREW, CAP
    SCREW, CAP
  • 3
    3020-052 SHROUD, AIR
    SHROUD, AIR
  • 4
    3020-121 SCREW, CAP
    SCREW, CAP
  • 5
    3020-064 STARTER, RECOIL - ASSEMBLY (INC. 6-14)
    STARTER, RECOIL - ASSEMBLY (INC. 6-14)
  • 6
    3020-065 ...HOUSING, RECOIL
    ...HOUSING, RECOIL
  • 7
    3020-067 ...REEL
    ...REEL
  • 8
    3020-071 ...ARM, RATCHET
    ...ARM, RATCHET
  • 9
    3020-066 ...SPRING, SPIRAL
    ...SPRING, SPIRAL
  • 10
    3020-068 ...SPRING, FRICTION
    ...SPRING, FRICTION
  • 11
    3020-069 ...PLATE, DRIVE
    ...PLATE, DRIVE
  • 12
    3020-074 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 13
    3020-072 ...ROPE, STARTER
    ...ROPE, STARTER
  • 14
    3020-073 ...GRIP, ROPE
    ...GRIP, ROPE
  • 15
    3020-119 SCREW, CAP
    SCREW, CAP
  • 16
    3020-070 PULLEY, STARTER
    PULLEY, STARTER
