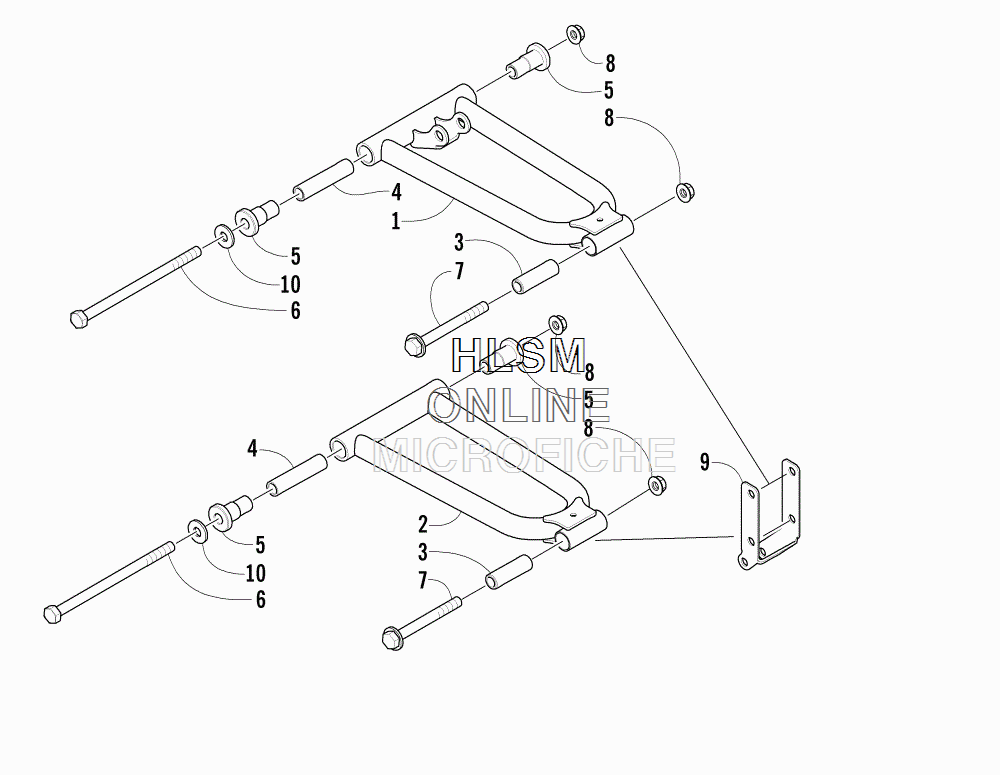

A-ARM ASSEMBLY для Arctic Cat ZR 120 (BLACK) [S2015ZRAAAUSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2703-974 A-ARM - UPPER (BLACK)
    A-ARM - UPPER (BLACK)
  • 2
    2703-975 A-ARM - LOWER (BLACK)
    A-ARM - LOWER (BLACK)
  • 3
    1603-365 AXLE
    AXLE
  • 4
    1603-394 AXLE,INNER A-ARM
    AXLE,INNER A-ARM
  • 5
    0605-451 AXLE, POWDER METAL
    AXLE, POWDER METAL
  • 6
    1623-983 SCREW,CAP-HH 3/8-16 X 6.125 G5 Z & Y
    SCREW,CAP-HH 3/8-16 X 6.125 G5 Z & Y
  • 7
    8020-232 SCREW,CAP-HFH 3/8-16 X 3.25 Z & Y
    SCREW,CAP-HFH 3/8-16 X 3.25 Z & Y
  • 8
    8047-486 NUT,HEX FLG-NY LOCK 3/8-16 GR F Z & Y
    NUT,HEX FLG-NY LOCK 3/8-16 GR F Z & Y
  • 9
    1703-179 BRACKET, MOUNTING - SHOCK (BLACK)
    BRACKET, MOUNTING - SHOCK (BLACK)
  • 10
    8050-277 WASHER,FLAT- 3/8 X 1.000 X .063 Z & Y
    WASHER,FLAT- 3/8 X 1.000 X .063 Z & Y
