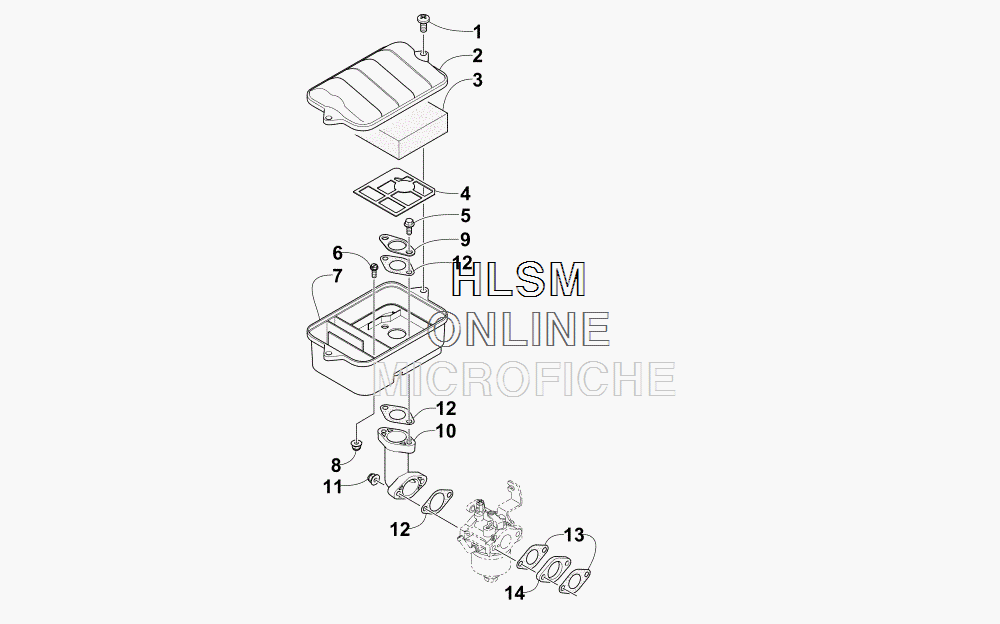

AIR CLEANER ASSEMBLY для Arctic Cat ZR 120 (BLACK) [S2015ZRAAAUSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3020-094 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 2
    3020-055 COVER, AIR CLEANER
    COVER, AIR CLEANER
  • 3
    3020-056 FILTER, AIR CLEANER
    FILTER, AIR CLEANER
  • 4
    3020-057 PLATE, RETAINING
    PLATE, RETAINING
  • 5
    1623-661 SCREW,PT THD-TSTRH K60-2.69X16MM RIE (BLACK)
    SCREW,PT THD-TSTRH K60-2.69X16MM RIE (BLACK)
  • 6
    8408-825 SCREW,CAP-HFH M8X1.25X25 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X25 CL8.8 Z & Y
  • 7
    3020-054 CASE, AIR CLEANER
    CASE, AIR CLEANER
  • 8
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 9
    3020-058 INSULATOR, INTAKE
    INSULATOR, INTAKE
  • 10
    2670-110 TUBE, INTAKE
    TUBE, INTAKE
  • 11
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 12
    3020-053 GASKET, CARBURETOR/INTAKE TUBE
    GASKET, CARBURETOR/INTAKE TUBE
  • 13
    3020-021 GASKET, INTAKE
    GASKET, INTAKE
  • 14
    3020-022 INSULATOR, CARBURETOR
    INSULATOR, CARBURETOR
