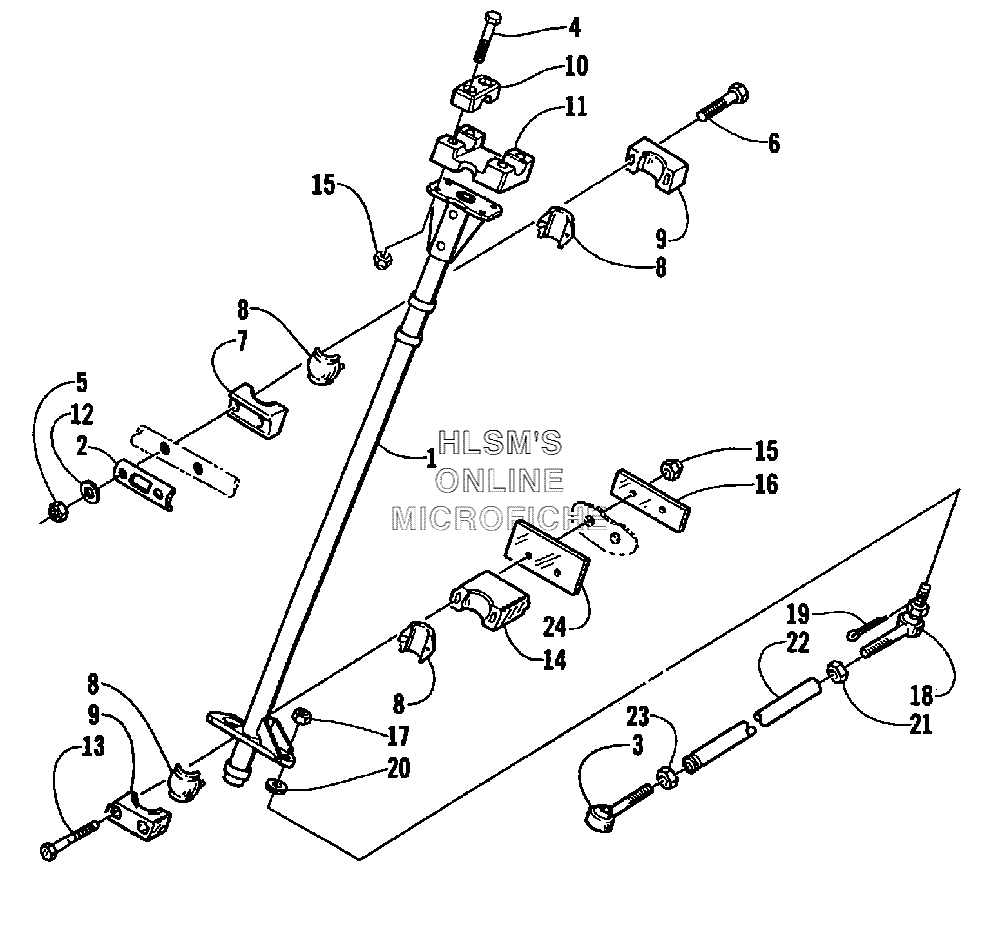

STEERING POST ASSEMBLY для Arctic Cat PANTHER 550 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10705-354 POST, STEERINGPOST, STEERING
-
20605-331 PLATE, BACKING - STEERING SUPPORTPLATE, BACKING - STEERING SUPPORT
-
30605-202 BALL JOINT, TIE ROD - RIGHTBALL JOINT, TIE ROD - RIGHT
-
48002-137 SCREW, CAPSCREW, CAP
-
58040-366 NUT, LOCKNUT, LOCK
-
60623-814 SCREW, CAPSCREW, CAP
-
70605-147 HOUSING, BEARING - UPPERHOUSING, BEARING - UPPER
-
80405-020 BEARING, HALFBEARING, HALF
-
90605-406 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
100605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
110605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
128050-217 WASHERWASHER
-
138002-143 SCREW, CAPSCREW, CAP
-
140705-335 HOUSING, BEARING - LOWERHOUSING, BEARING - LOWER
-
158040-426 NUT, LOCKNUT, LOCK
-
160605-385 PLATE, BACKINGPLATE, BACKING
-
170623-025 NUT, LOCKNUT, LOCK
-
180605-405 BALL JOINT, STEERING - LEFTBALL JOINT, STEERING - LEFT
-
190623-175 PIN, COTTERPIN, COTTER
-
200623-044 WASHERWASHER
-
210123-917 NUT, HEX - LEFTNUT, HEX - LEFT
-
220605-404 TUBE, TIE RODTUBE, TIE ROD
-
230623-294 NUT, HEX - RIGHTNUT, HEX - RIGHT
-
240605-471 STOP, STEERINGSTOP, STEERING
