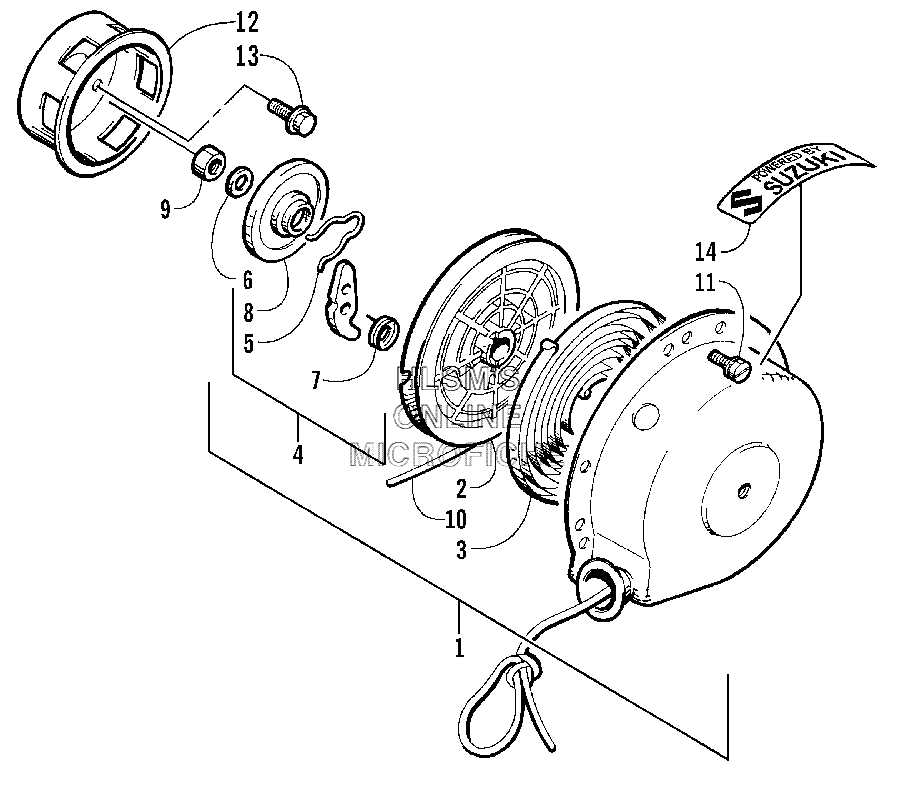

RECOIL STARTER для Arctic Cat PANTHER 550 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
13005-520 STARTER ASSEMBLY (INC 2-10)STARTER ASSEMBLY (INC 2-10)
-
23003-179 ROLLER, STARTERROLLER, STARTER
-
33002-921 SPRINGSPRING
-
43004-729 RATCHET SET (INC 5-8)RATCHET SET (INC 5-8)
-
63003-397 WASHERWASHER
-
83005-521 PLATE, FRICTIONPLATE, FRICTION
-
93004-488 NUTNUT
-
103003-327 ROPE, STARTERROPE, STARTER
-
113004-383 SCREW, CAPSCREW, CAP
-
123003-929 PULLEY, STARTERPULLEY, STARTER
-
133004-338 SCREW, CAP - PULLEYSCREW, CAP - PULLEY
-
141611-588 DECAL, ''POWERED BY''DECAL, ''POWERED BY''
