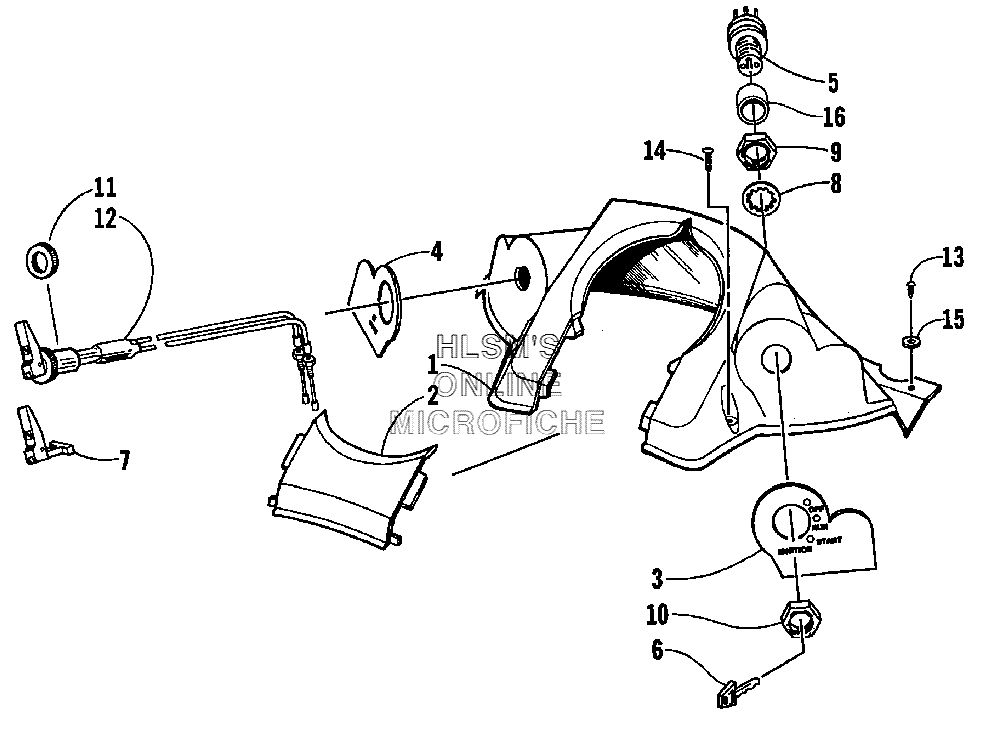

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat PANTHER 550 (INTERNATIONAL) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    2606-060 CONSOLE
    CONSOLE
  • 2
    2606-068 DOOR, CONSOLE
    DOOR, CONSOLE
  • 3
    2611-744 DECAL, CONSOLE - RIGHT
    DECAL, CONSOLE - RIGHT
  • 4
    2611-867 DECAL, CONSOLE - LEFT
    DECAL, CONSOLE - LEFT
  • 5
    0609-449 SWITCH, IGNITION - MULTI-KEY (INC 6)
    SWITCH, IGNITION - MULTI-KEY (INC 6)
  • 7
    0636-062 KIT, CHOKE LEVER
    KIT, CHOKE LEVER
  • 8
    0123-899 WASHER, INTERNAL LOCK
    WASHER, INTERNAL LOCK
  • 9
    0123-900 NUT, IGNITION
    NUT, IGNITION
  • 10
    0609-113 NUT, RETAINING
    NUT, RETAINING
  • 11
    0623-054 NUT, CHOKE
    NUT, CHOKE
  • 12
    0687-007 CABLE, CHOKE
    CABLE, CHOKE
  • 13
    0623-378 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    0623-219 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    8050-157 WASHER
    WASHER
  • 16
    0609-450 SPACER, IGNITION SWITCH
    SPACER, IGNITION SWITCH
