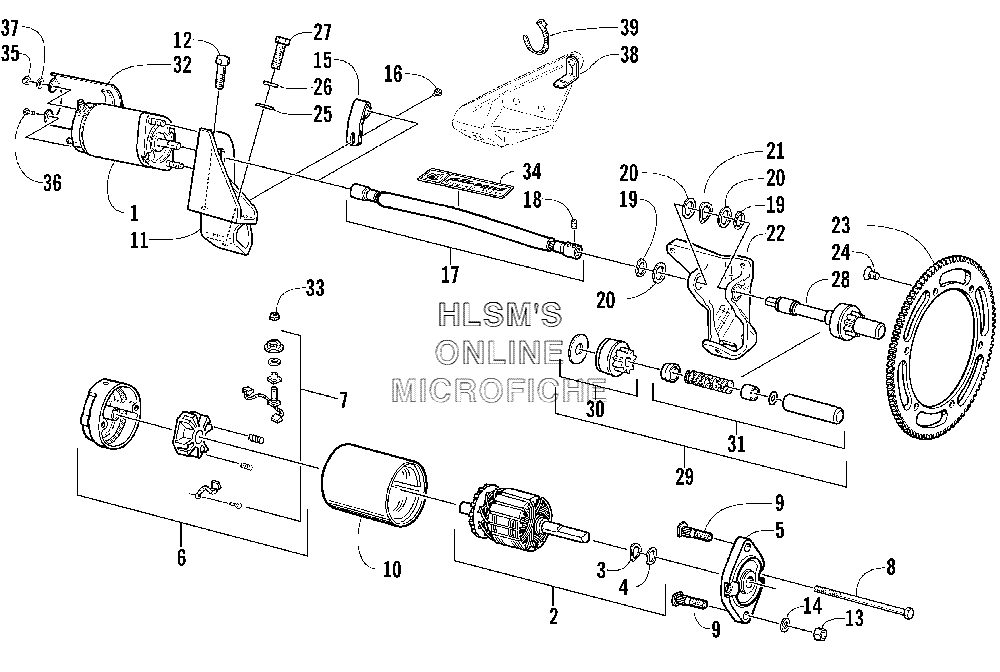

FLEX-DRIVE STARTER MOTOR ASSEMBLY для Arctic Cat PANTHER 550 (INTERNATIONAL) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-143 MOTOR, STARTER (INC 2-10)
    MOTOR, STARTER (INC 2-10)
  • 2
    0645-296 ARMATURE ASSEMBLY (INC 3-4)
    ARMATURE ASSEMBLY (INC 3-4)
  • 3
    0645-131 WASHER, WAVE
    WASHER, WAVE
  • 4
    0645-293 WASHER, THRUST
    WASHER, THRUST
  • 5
    0645-297 CAP, CASE
    CAP, CASE
  • 6
    0645-313 CAP, COMMUTATOR (INC 7)
    CAP, COMMUTATOR (INC 7)
  • 7
    0645-275 KIT, BRUSH AND SPRING
    KIT, BRUSH AND SPRING
  • 8
    0645-128 THROUGH-BOLT
    THROUGH-BOLT
  • 9
    0623-093 BOLT, RIBBED
    BOLT, RIBBED
  • 11
    0708-135 BRACKET, MOUNTING - STARTER MOTOR
    BRACKET, MOUNTING - STARTER MOTOR
  • 12
    0623-640 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 13
    8040-426 NUT, LOCK
    NUT, LOCK
  • 14
    8050-242 WASHER
    WASHER
  • 15
    0645-319 CLIP, RETAINING
    CLIP, RETAINING
  • 16
    0623-361 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    0745-156 SHAFT, FLEX-DRIVE (INC 18-34)
    SHAFT, FLEX-DRIVE (INC 18-34)
  • 18
    0623-891 SCREW, SET
    SCREW, SET
  • 19
    0645-256 RING, SNAP
    RING, SNAP
  • 20
    0645-254 WASHER, THRUST
    WASHER, THRUST
  • 21
    0645-255 WASHER, WAVE
    WASHER, WAVE
  • 22
    0745-135 BRACKET, ENGINE MOUNTING - LEFT FRONT
    BRACKET, ENGINE MOUNTING - LEFT FRONT
  • 23
    0645-169 RING GEAR
    RING GEAR
  • 24
    0623-441 SCREW, MACHINE - SOCKET HEAD
    SCREW, MACHINE - SOCKET HEAD
  • 25
    8050-277 WASHER
    WASHER
  • 26
    8051-277 WASHER, LOCK
    WASHER, LOCK
  • 27
    8002-224 SCREW, CAP
    SCREW, CAP
  • 28
    0745-150 DRIVE, PINION - SHAFT (INC 29-31)
    DRIVE, PINION - SHAFT (INC 29-31)
  • 29
    0745-145 KIT, PINION DRIVE ASSEMBLY (INC 30-31)
    KIT, PINION DRIVE ASSEMBLY (INC 30-31)
  • 30
    0745-146 KIT, PINION DRIVE
    KIT, PINION DRIVE
  • 31
    0645-186 KIT, PINION STOPPER
    KIT, PINION STOPPER
  • 32
    0745-153 SHIELD, HEAT
    SHIELD, HEAT
  • 33
    0623-122 NUT, LOCK
    NUT, LOCK
  • 34
    3611-968 DECAL, ''ACT - FLEX-DRIVE''
    DECAL, ''ACT - FLEX-DRIVE''
  • 35
    8040-366 NUT, LOCK
    NUT, LOCK
  • 36
    0623-892 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 37
    8050-212 WASHER
    WASHER
  • 38
    2606-281 TAB, FLEX-DRIVE SHAFT (SERIAL W61T109238 AND UP)
    TAB, FLEX-DRIVE SHAFT (SERIAL W61T109238 AND UP)
  • 39
    0623-909 CABLE TIE - 8.5 IN. (SERIAL W61T109238 AND UP)
    CABLE TIE - 8.5 IN. (SERIAL W61T109238 AND UP)
