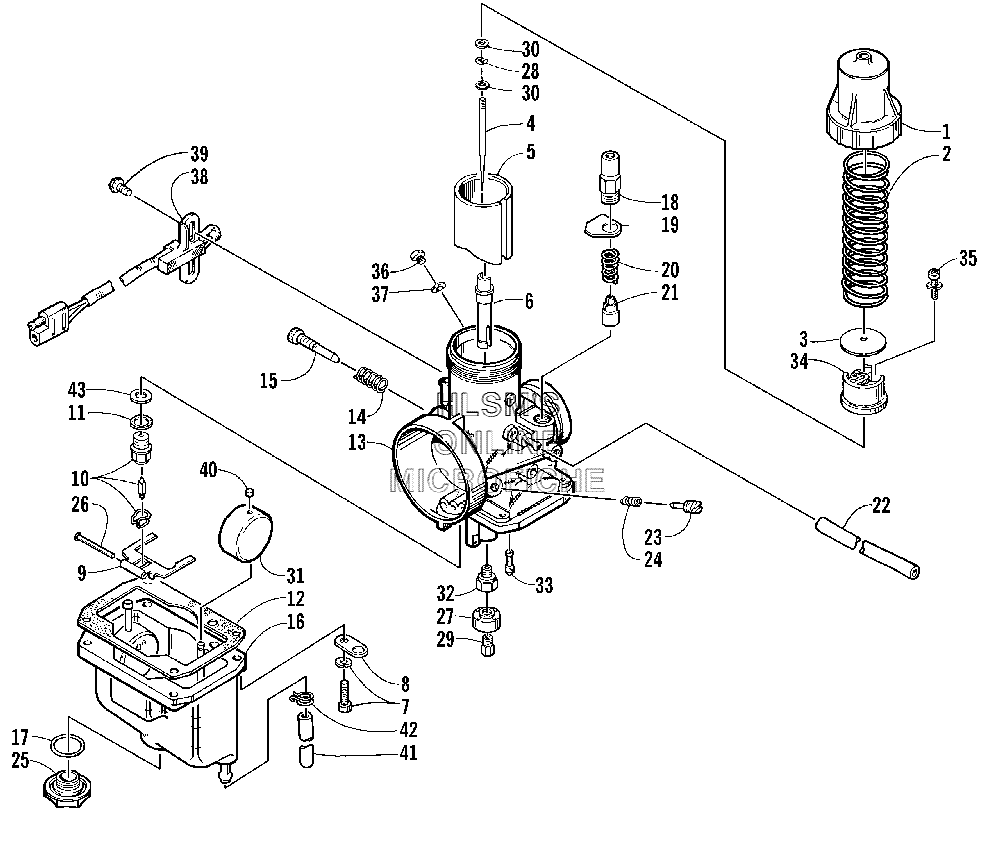

CARBURETOR для Arctic Cat PANTHER 550 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
0770-526 CARBURETOR ASSEMBLY - VM38-445 (INTERNATIONAL)CARBURETOR ASSEMBLY - VM38-445 (INTERNATIONAL)
-
16505-582 TOP, MIXING CHAMBERTOP, MIXING CHAMBER
-
26505-584 SPRING, PISTON VALVESPRING, PISTON VALVE
-
36505-588 PLATEPLATE
-
46505-236 JET NEEDLE 6DH8-3JET NEEDLE 6DH8-3
-
56505-643 PISTON VALVE CA 3.0PISTON VALVE CA 3.0
-
66505-598 NEEDLE JET P-0 480 (INTER)NEEDLE JET P-0 480 (INTER)
-
76505-195 SCREW W/SPRING WASHERSCREW W/SPRING WASHER
-
86505-094 PLATE, HOSEPLATE, HOSE
-
96505-638 ARM, FLOATARM, FLOAT
-
106505-171 NEEDLE VALVE ASSEMBLY 1.5NEEDLE VALVE ASSEMBLY 1.5
-
116505-102 WASHER, VALVE SEATWASHER, VALVE SEAT
-
126505-197 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
146505-021 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
156505-101 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
166505-646 CHAMBER, FLOAT (INTER)CHAMBER, FLOAT (INTER)
-
176505-622 O-RINGO-RING
-
186505-188 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
196505-193 WASHERWASHER
-
206505-033 SPRINGSPRING
-
216505-035 PLUNGER, STARTERPLUNGER, STARTER
-
226505-280 TUBE, AIR VENTTUBE, AIR VENT
-
236505-019 SCREW, PILOT AIRSCREW, PILOT AIR
-
246505-020 SPRING, PILOT AIR SCREWSPRING, PILOT AIR SCREW
-
256505-634 PLUG, DRAIN (INTER)PLUG, DRAIN (INTER)
-
266505-153 PIN, FLOAT ARMPIN, FLOAT ARM
-
276505-620 RING, BAFFLERING, BAFFLE
-
286505-610 E-CLIPE-CLIP
-
296505-076 MAIN JET 340MAIN JET 340
-
306505-437 WASHER, E-CLIPWASHER, E-CLIP
-
316505-640 FLOATFLOAT
-
326505-199 GUIDE, SCREWGUIDE, SCREW
-
336505-029 PILOT JET 35 (INTER)PILOT JET 35 (INTER)
-
340770-045 BLOCK, MAGNETBLOCK, MAGNET
-
356505-591 SCREW, MACHINESCREW, MACHINE
-
366505-583 SCREW, MACHINE (INTER)SCREW, MACHINE (INTER)
-
376505-399 WASHERWASHER
-
380630-076 SWITCH, MAGNETIC - CARBURETORSWITCH, MAGNETIC - CARBURETOR
-
390623-137 SCREW, CAPSCREW, CAP
-
406505-010 CAPCAP
-
410610-279 HOSE, DRAINHOSE, DRAIN
-
420623-652 CLAMP, HOSECLAMP, HOSE
-
436505-612 WASHERWASHER
