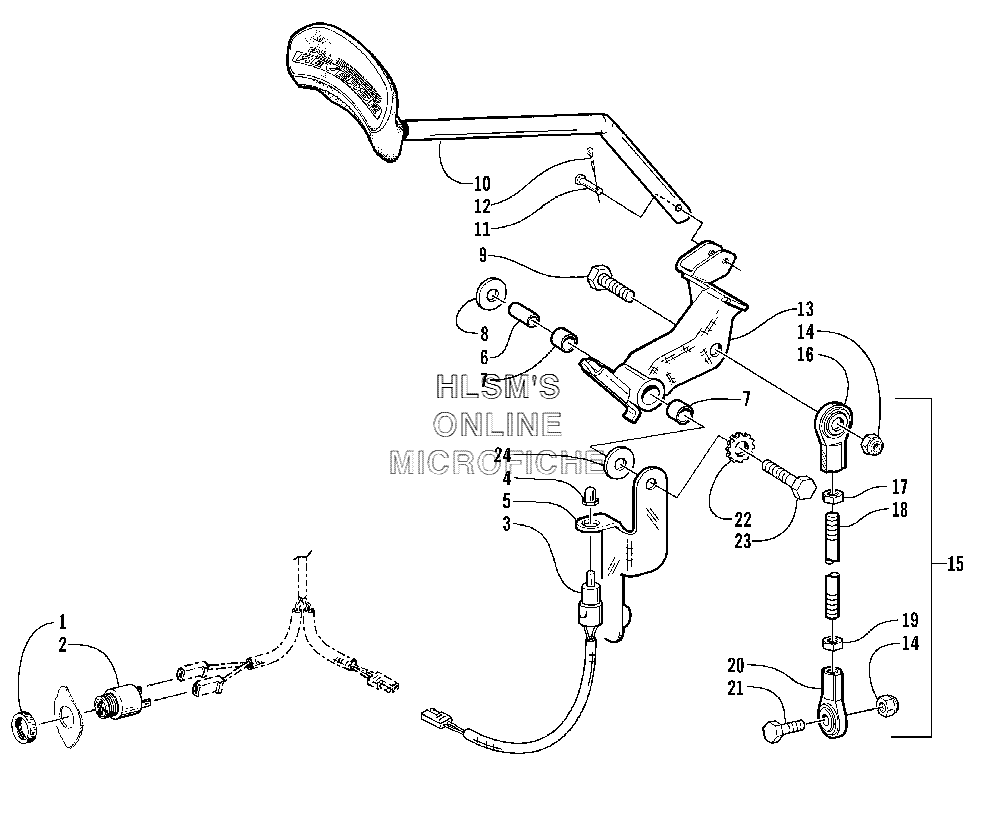

REVERSE SHIFT LEVER ASSEMBLY для Arctic Cat PANTHER 550 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10630-017 RING, RETAININGRING, RETAINING
-
20630-010 ALARM, REVERSE (INC 1)ALARM, REVERSE (INC 1)
-
30630-011 SWITCH, ALARMSWITCH, ALARM
-
40630-013 BOOT, SWITCHBOOT, SWITCH
-
50602-986 BRACKET, REVERSE SWITCHBRACKET, REVERSE SWITCH
-
60602-853 AXLE, PIVOTAXLE, PIVOT
-
70602-844 BUSHINGBUSHING
-
88050-252 WASHERWASHER
-
98002-137 SCREW, CAPSCREW, CAP
-
100602-978 LEVER, REVERSELEVER, REVERSE
-
110623-641 PIN, CLEVISPIN, CLEVIS
-
120117-868 PIN, COTTERPIN, COTTER
-
130702-349 SHIFT PIVOT (INC 7)SHIFT PIVOT (INC 7)
-
148040-426 NUT, LOCKNUT, LOCK
-
150702-347 LINKAGE, SHIFTING - ASSEMBLY (INC 16-20)LINKAGE, SHIFTING - ASSEMBLY (INC 16-20)
-
160602-305 ROD END - LEFTROD END - LEFT
-
170623-260 NUT, JAM - LEFTNUT, JAM - LEFT
-
180602-982 ROD, SHIFTING LINKAGEROD, SHIFTING LINKAGE
-
190123-144 NUT, JAM - RIGHTNUT, JAM - RIGHT
-
200602-322 ROD END - RIGHTROD END - RIGHT
-
218002-132 SCREW, CAPSCREW, CAP
-
228053-242 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
-
238002-140 SCREW, CAPSCREW, CAP
-
248050-247 WASHERWASHER
