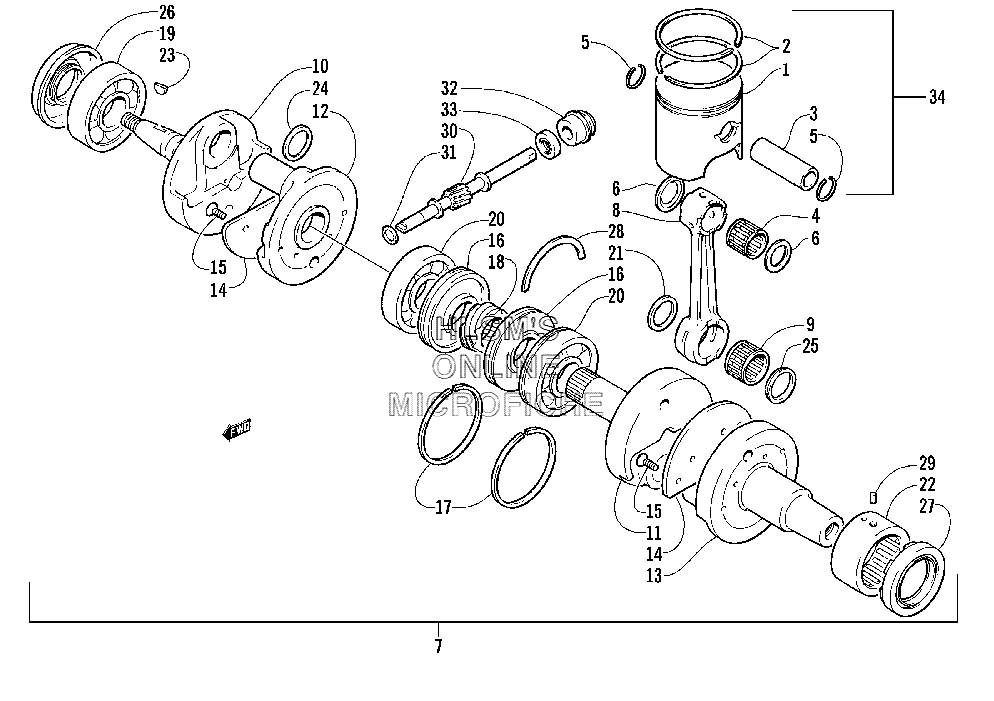

PISTON AND CRANKSHAFT для Arctic Cat PANTHER 550 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
23003-760 RING ASSEMBLYRING ASSEMBLY
-
33003-767 PIN, PISTONPIN, PISTON
-
43003-433 BEARING, PISTON PINBEARING, PISTON PIN
-
53003-439 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
63005-209 WASHER, PISTON PIN BEARINGWASHER, PISTON PIN BEARING
-
73005-752 CRANKSHAFT ASSEMBLY (INC 8-22)CRANKSHAFT ASSEMBLY (INC 8-22)
-
83005-112 ROD, CONNECTINGROD, CONNECTING
-
93003-784 BEARINGBEARING
-
103003-812 CRANKSHAFT - RIGHTCRANKSHAFT - RIGHT
-
113005-753 CRANKSHAFT - CENTERCRANKSHAFT - CENTER
-
123005-232 WHEEL, CRANKWHEEL, CRANK
-
133005-231 CRANKSHAFT - LEFTCRANKSHAFT - LEFT
-
143003-815 BALANCER, CRANKSHAFTBALANCER, CRANKSHAFT
-
153004-372 SCREW, MACHINESCREW, MACHINE
-
163004-698 RACE, MIDDLE SEALRACE, MIDDLE SEAL
-
173003-817 RINGRING
-
183005-202 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
193005-210 BEARING, CRANKSHAFT - RIGHTBEARING, CRANKSHAFT - RIGHT
-
203003-164 BEARING, CRANKSHAFT - CENTERBEARING, CRANKSHAFT - CENTER
-
213003-782 WASHERWASHER
-
223003-805 BEARING, CRANKSHAFT - LEFTBEARING, CRANKSHAFT - LEFT
-
233004-540 KEYKEY
-
243003-783 WASHERWASHER
-
253003-933 WASHER, CRANK PINWASHER, CRANK PIN
-
263005-188 SEAL, OIL - RIGHTSEAL, OIL - RIGHT
-
273003-759 SEAL, OIL - LEFTSEAL, OIL - LEFT
-
283003-216 C-RINGC-RING
-
293003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
303005-324 GEAR, DRIVEN - OIL PUMPGEAR, DRIVEN - OIL PUMP
-
313005-049 SHIM, OIL PUMP SHAFTSHIM, OIL PUMP SHAFT
-
323402-360 SEAL, MECHANICAL WATER PUMPSEAL, MECHANICAL WATER PUMP
-
333004-760 SEAL, WATER/OIL PUMPSEAL, WATER/OIL PUMP
-
343005-437 PISTON ASSEMBLY (INC 1-2 AND 5)PISTON ASSEMBLY (INC 1-2 AND 5)
