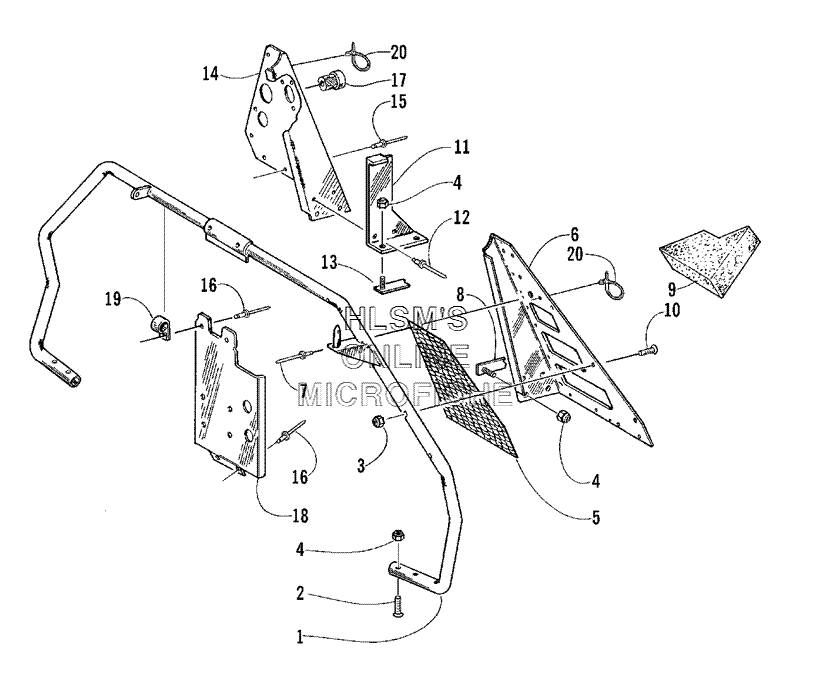

STEERING SUPPORT ASSEMBLY для Arctic Cat Bearcat 340 - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0705-143 SUPPORT, STEERING
    SUPPORT, STEERING
  • 2
    0623-060 SCREW, MACHINE
    SCREW, MACHINE
  • 3
    8040-246 NUT, LOCK
    NUT, LOCK
  • 4
    8040-366 NUT, LOCK
    NUT, LOCK
  • 5
    0616-283 SCREEN, VENT
    SCREEN, VENT
  • 6
    0616-641 PLATE, BACKING VENT - LEFT
    PLATE, BACKING VENT - LEFT
  • 7
    8061-426 RIVET
    RIVET
  • 8
    0705-042 PLATE, BACKING
    PLATE, BACKING
  • 9
    0617-198 FOAM, BACKING PLATE
    FOAM, BACKING PLATE
  • 10
    0623-227 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    0605-248 BRACE, STEERING SUPPORT - RIGHT
    BRACE, STEERING SUPPORT - RIGHT
  • 11
    0605-249 BRACE, STEERING SUPPORT - LEFT
    BRACE, STEERING SUPPORT - LEFT
  • 12
    0623-166 RIVET
    RIVET
  • 13
    0705-043 PLATE, BACKING
    PLATE, BACKING
  • 14
    0616-822 PLATE, BACKING VENT - RIGHT
    PLATE, BACKING VENT - RIGHT
  • 15
    8060-484 RIVET
    RIVET
  • 16
    8060-684 RIVET
    RIVET
  • 17
    0116-469 BUSHING, RECOIL
    BUSHING, RECOIL
  • 18
    0716-137 PANEL, FRONT
    PANEL, FRONT
  • 19
    0623-342 CLAMP, TUBE
    CLAMP, TUBE
  • 20
    0423-075 TIE, CABLE - PUSH MOUNT
    TIE, CABLE - PUSH MOUNT
