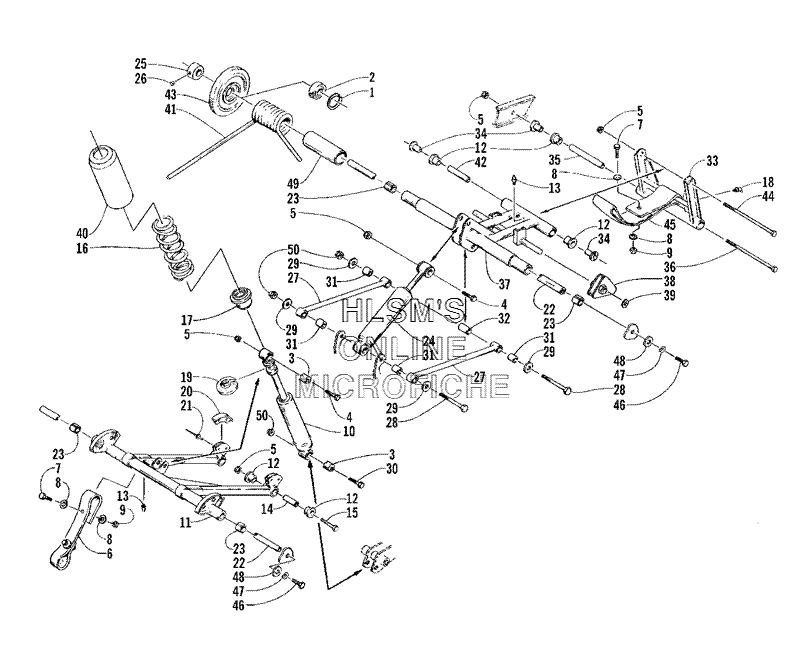

REAR SUSPENSION ARM ASSEMBLIES для Arctic Cat Bearcat 340 - 2000 года выпуска
-
№АртикулНазвание
-
10123-798 RING, RETAININGRING, RETAINING
-
20107-598 BEARINGBEARING
-
30603-030 AXLE, SERRATEDAXLE, SERRATED
-
48002-227 SCREW, CAPSCREW, CAP
-
58040-486 NUT, LOCKNUT, LOCK
-
60604-579 STRAP, LIMITERSTRAP, LIMITER
-
78002-042 SCREW, CAPSCREW, CAP
-
80623-184 WASHERWASHER
-
98040-366 NUT, LOCKNUT, LOCK
-
100604-599 SHOCK ABSORBER - FRONT ARMSHOCK ABSORBER - FRONT ARM
-
110704-243 ARM, FRONT SUSPENSION (INC. FOUR NO. 12, ONE NO. 13, AND TWO NO. 23)ARM, FRONT SUSPENSION (INC. FOUR NO. 12, ONE NO. 13, AND TWO NO. 23)
-
120104-386 . BUSHING. BUSHING
-
130623-010 . FITTING, GREASE. FITTING, GREASE
-
140104-629 SPACER, FRONT ARMSPACER, FRONT ARM
-
158002-228 SCREW, CAPSCREW, CAP
-
160604-740 SPRING, COMPRESSIONSPRING, COMPRESSION
-
170603-457 SLEEVE, RETAINER - SPRINGSLEEVE, RETAINER - SPRING
-
180623-333 FITTING, GREASEFITTING, GREASE
-
190603-033 RETAINER, SPRINGRETAINER, SPRING
-
200604-183 BUMPER, TRACK GUIDEBUMPER, TRACK GUIDE
-
218060-710 RIVETRIVET
-
220114-163 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
230603-083 BEARINGBEARING
-
240604-659 SHOCK ABSORBER - REAR ARMSHOCK ABSORBER - REAR ARM
-
250604-601 COLLAR, LOCKCOLLAR, LOCK
-
260623-217 SCREW, SETSCREW, SET
-
270704-350 LINK, REAR SHOCKLINK, REAR SHOCK
-
288002-233 SCREW, CAPSCREW, CAP
-
298050-282 WASHERWASHER
-
308002-225 SCREW, CAPSCREW, CAP
-
311604-172 AXLE, LINKAXLE, LINK
-
320604-298 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
330704-177 ARM, REAR (INC. 18 AND TWO NO. 12)ARM, REAR (INC. 18 AND TWO NO. 12)
-
340603-061 AXLE, SERRATEDAXLE, SERRATED
-
350604-194 TUBE, AXLETUBE, AXLE
-
360623-105 SCREW, CAPSCREW, CAP
-
370704-178 ARM, IDLER (INC. TWO NO. 12 AND TWO NO. 23)ARM, IDLER (INC. TWO NO. 12 AND TWO NO. 23)
-
381604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
381604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
390623-138 RING, RETAININGRING, RETAINING
-
400604-590 COVER, COMPRESSION SPRINGCOVER, COMPRESSION SPRING
-
410604-654 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
410604-655 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
420604-204 AXLE, IDLERAXLE, IDLER
-
430604-374 WHEEL, IDLER (INC. 1 AND 2)WHEEL, IDLER (INC. 1 AND 2)
-
440623-106 SCREW, CAPSCREW, CAP
-
450604-581 STRAP, LIMITERSTRAP, LIMITER
-
468012-224 SCREW, CAPSCREW, CAP
-
478051-277 WASHER, LOCKWASHER, LOCK
-
480623-044 WASHERWASHER
-
490114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
508041-486 NUT, LOCKNUT, LOCK
