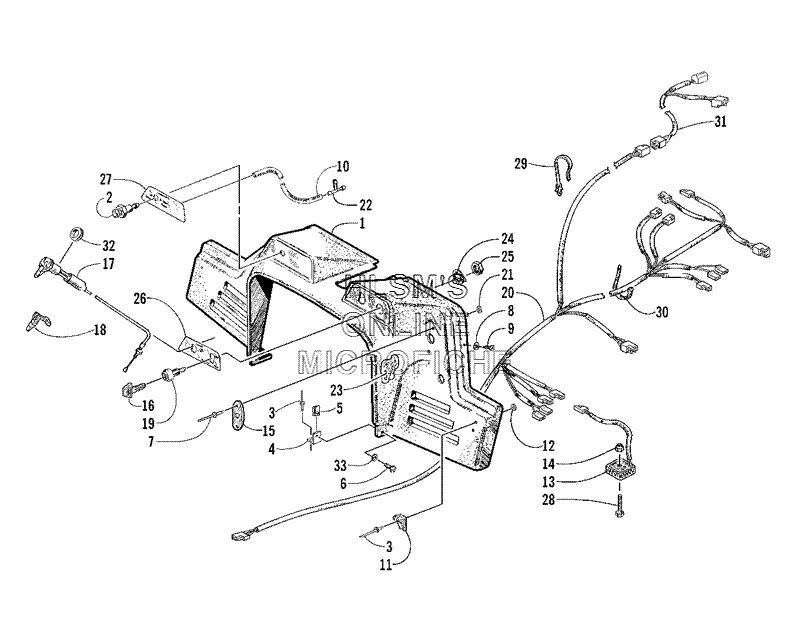

CONSOLE- SWITCHES- AND WIRING ASSEMBLIES для Arctic Cat Bearcat 340 - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1606-258 CONSOLE
    CONSOLE
  • 2
    0670-006 PRIMER
    PRIMER
  • 3
    8060-428 RIVET
    RIVET
  • 4
    0106-956 BRACKET, MOUNTING - CONSOLE
    BRACKET, MOUNTING - CONSOLE
  • 5
    0123-539 NUT, SPEED
    NUT, SPEED
  • 6
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 7
    8060-708 RIVET
    RIVET
  • 8
    8050-157 WASHER
    WASHER
  • 9
    0623-378 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 10
    0610-012 HOSE, PRIMER - 25 FT
    HOSE, PRIMER - 25 FT
  • 11
    0115-307 LATCH CUP (INC FOUR NO 12, ONE NO 13, AND TWO NO 23)
    LATCH CUP (INC FOUR NO 12, ONE NO 13, AND TWO NO 23)
  • 12
    0123-149 WASHER
    WASHER
  • 13
    0630-001 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 14
    8041-366 NUT, LOCK
    NUT, LOCK
  • 15
    0606-211 PLATE, RECOIL
    PLATE, RECOIL
  • 16
    0609-412 KEY
    KEY
  • 17
    0687-006 CABLE, CHOKE
    CABLE, CHOKE
  • 18
    0636-062 CHOKE LEVER KIT
    CHOKE LEVER KIT
  • 19
    0609-256 SWITCH, IGNITION - MANUAL
    SWITCH, IGNITION - MANUAL
  • 20
    0686-582 HARNESS, MAIN
    HARNESS, MAIN
  • 21
    0123-802 WASHER
    WASHER
  • 22
    0670-026 T-FITTING, GASLINE
    T-FITTING, GASLINE
  • 23
    0617-204 FOAM, CONSOLE - RIGHT
    FOAM, CONSOLE - RIGHT
  • 23
    0617-205 FOAM, CONSOLE - LEFT
    FOAM, CONSOLE - LEFT
  • 24
    0123-899 WASHER, IGNITION
    WASHER, IGNITION
  • 25
    0123-900 NUT, IGNITION
    NUT, IGNITION
  • 26
    3611-274 DECAL, CONSOLE SWITCH - RIGHT
    DECAL, CONSOLE SWITCH - RIGHT
  • 27
    3611-271 DECAL, CONSOLE SWITCH - LEFT
    DECAL, CONSOLE SWITCH - LEFT
  • 28
    8002-044 SCREW, CAP
    SCREW, CAP
  • 29
    0423-075 TIE, CABLE - PUSH MOUNT
    TIE, CABLE - PUSH MOUNT
  • 30
    0123-788 TIE, CABLE
    TIE, CABLE
  • 31
    0686-436 HARNESS, HEADLIGHT
    HARNESS, HEADLIGHT
  • 32
    0623-054 NUT, CHOKE
    NUT, CHOKE
  • 33
    8050-222 WASHER
    WASHER
