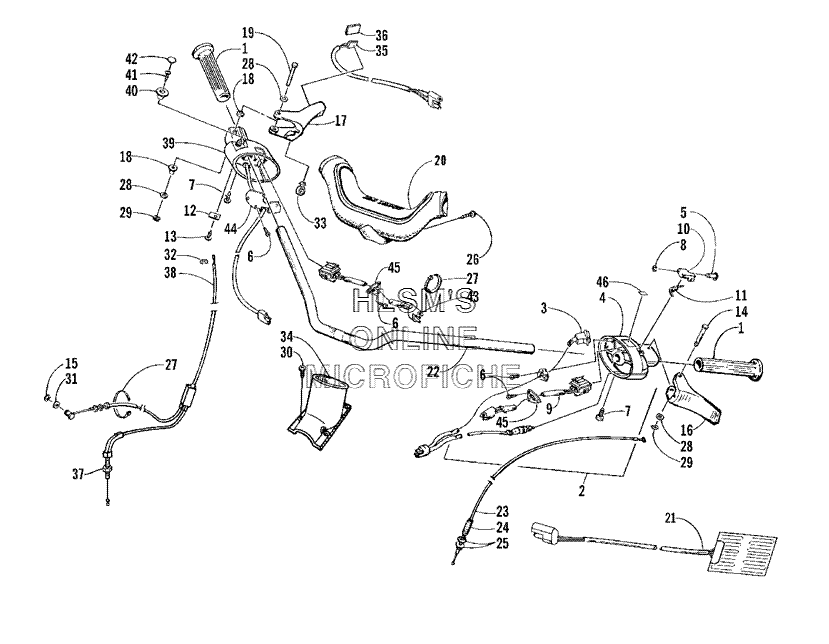

HANDLEBAR AND CONTROLS для Arctic Cat Bearcat 340 - 2000 года выпуска
-
№АртикулНазвание
-
10117-793 GRIP, HANDLEBARGRIP, HANDLEBAR
-
20609-393 CONTROL, BRAKE - ASSEMBLY (INC. 3-10)CONTROL, BRAKE - ASSEMBLY (INC. 3-10)
-
30609-452 . SWITCH, DIMMER - BRAKE. SWITCH, DIMMER - BRAKE
-
40609-478 . HOUSING, BRAKE SWITCH (INC. 5,7,8,AND10-11). HOUSING, BRAKE SWITCH (INC. 5,7,8,AND10-11)
-
50609-050 PIN, ACTUATORPIN, ACTUATOR
-
60609-312 . SCREW, SELF-TAPPING. SCREW, SELF-TAPPING
-
70609-085 . SCREW, MACHINE. SCREW, MACHINE
-
80609-051 . RING, RETAINING. RING, RETAINING
-
90609-385 . SWITCH ASSEMBLY, HANDWARMER. SWITCH ASSEMBLY, HANDWARMER
-
100609-314 . ACTUATOR, BRAKE - PARKING. ACTUATOR, BRAKE - PARKING
-
110609-313 SPRING, BRAKE - PARKINGSPRING, BRAKE - PARKING
-
120609-319 CLAMP, HARNESS - SINGLECLAMP, HARNESS - SINGLE
-
130609-321 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
140609-315 AXLE, LEVER - BRAKEAXLE, LEVER - BRAKE
-
150124-057 E-RINGE-RING
-
160609-266 LEVER, BRAKELEVER, BRAKE
-
170609-257 LEVER, THROTTLELEVER, THROTTLE
-
180609-038 SEAL, THROTTLESEAL, THROTTLE
-
190609-317 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
200616-995 PAD, HANDLEBARPAD, HANDLEBAR
-
210609-374 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
220605-308 HANDLEBARHANDLEBAR
-
230687-072 CABLE, BRAKECABLE, BRAKE
-
240109-194 SPRING, BRAKE CABLESPRING, BRAKE CABLE
-
250123-406 NUT, FLANGENUT, FLANGE
-
260623-128 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
270123-788 TIE, CABLETIE, CABLE
-
280609-036 WASHERWASHER
-
290609-040 E-RINGE-RING
-
300623-370 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
310124-056 WASHERWASHER
-
320123-231 RING, RETAININGRING, RETAINING
-
330623-262 CLIP, WIRECLIP, WIRE
-
341606-206 COVER, STEERING POSTCOVER, STEERING POST
-
350609-372 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
360617-248 PAD, INSULATORPAD, INSULATOR
-
370623-464 NUT, LOCKING - THROTTLE CABLENUT, LOCKING - THROTTLE CABLE
-
380687-033 CABLE, THROTTLECABLE, THROTTLE
-
390609-387 CONTROL, THROTTLE (INC. EIGHT NO. 6, ONE NO. 7, AND 40-45)CONTROL, THROTTLE (INC. EIGHT NO. 6, ONE NO. 7, AND 40-45)
-
400609-282 . KNOB, EMERGENCY STOP. KNOB, EMERGENCY STOP
-
410623-215 . SCREW, SELF-TAPPING. SCREW, SELF-TAPPING
-
420609-283 . DECAL, MARK PLATE. DECAL, MARK PLATE
-
430609-384 . SWITCH ASSEMBLY, THUMBWARMER. SWITCH ASSEMBLY, THUMBWARMER
-
440609-316 . COVER, THROTTLE SWITCH. COVER, THROTTLE SWITCH
-
450609-378 . PLATE, COVER. PLATE, COVER
-
460611-049 DECAL, PARKING BRAKEDECAL, PARKING BRAKE
